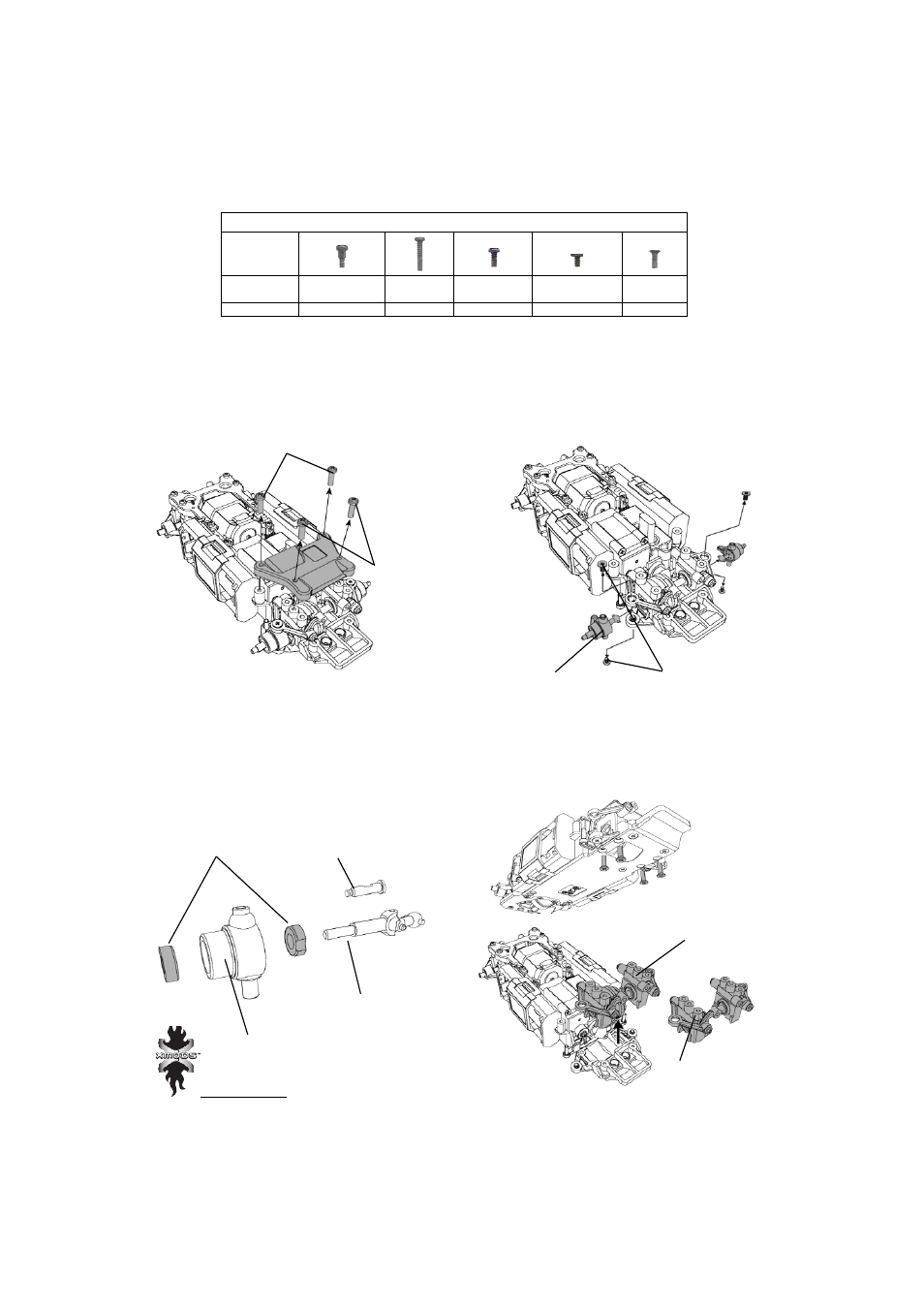

Remove the four screws from the front upper deck to
detach it.
2
Remove the top and bottom screws from the left and
right knuckles to detach the knuckles.
Knuckle
Long
Short
Screws
Upgrading the Front Section to Metal Bearings
3
Detach the knuckles and slide out the front axle shaft so
you can remove the two plastic bushings from each
knuckle and replace them with two metal ball bearings.
Bearings
Knuckle
Standard Shaft
All Wheel Drive Shaft
4
Remove the four screws to detach the front arm
base and the standard or all wheel drive assembly.
Standard
Assembly
All Wheel Drive Assembly
Screw Guide (Front of Car)
Screw
Location Front and Rear
Dampers
Front Upper
Deck (long)
Front Upper
Deck (short)
Left and Right
Front Knuckles
Front Arm
Base
Quantity 4 2 2 4 4
