Radio Shack XMODS 60-390 - Manual

7
Insert a 6 mm bearing onto the central shaft.
8
Slide one center gear onto the center shaft. Slowly
rotate the gear to fit on the flat side of the center
shaft.
9
Insert the back end of the center shaft into the
vehicle. The 6mm
bearing and
center gear
should
remain
visible.
6
Install the differential gear
assembly into the front drive
unit and insert the flat ends
of the drive
shafts into the
differential
gear.
5
Attach one 10mm bearing
to each side of the front
differential gear.
4
Insert the rounded ends
of the drive shafts into the
front tires.
1
Remove the tie rod holder
(two screws).
2
Remove the tie rod (two
screws).
3
Remove the front attachment (two
screws), and remove the front gear
case cover (two screws) to remove
the front drive unit.

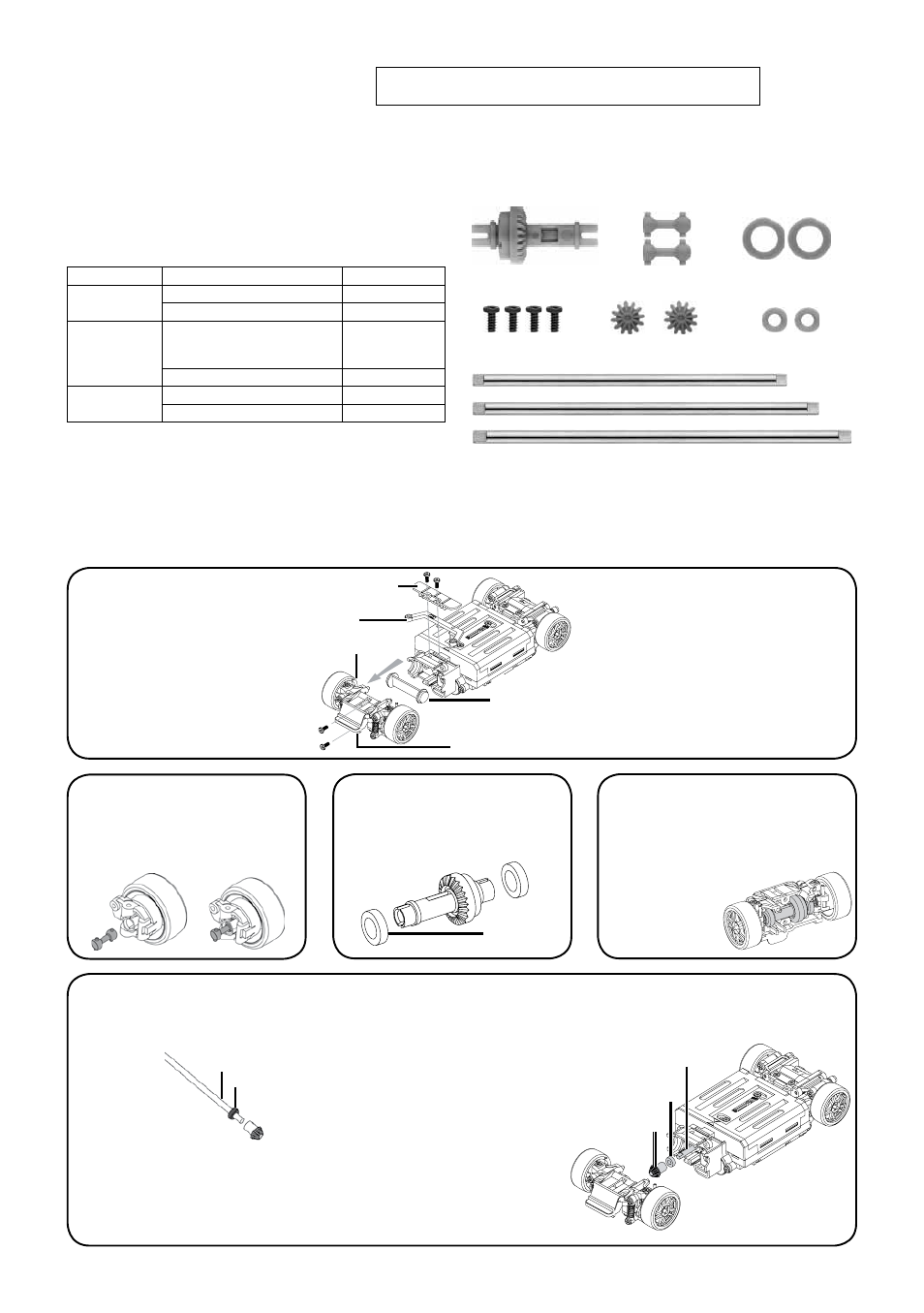

XMODS
®
Custom RC
All-Wheel Drive Upgrade
Thank you for purchasing your All-Wheel Drive Upgrade
kit from RadioShack. This kit lets you upgrade your
XMODS ® Street or Evo ® RC car from standard two-
wheel drive to all-wheel drive for improved traction and
cornering. To complete this upgrade, you will need a
small Phillips head screwdriver.
Use the following chart to determine which center
shaft to use:
Generation Model Center Shaft
Street
Corvette Z06, Nissan GTR Long (LL)
‘65 Mustang, Audi R8 Medium (L)
Evo
Infinity, ‘05 Mustang,
Barricade (Mustang),
Bumble Bee (Camaro)
Long (LL)
Lancer, Firebird, Scion, Medium (L)
1st
Generation
Acura RSX, Acura NSX Short (M)
Other Models Medium (L)
Before installing, complete the following steps:
• Turn off your vehicle and controller.
• Detach the car body.
• Remove the antenna.
• Remove the batteries.
Front Section Installation
Note: Four spare screws are supplied with your kit.
front attachment
front drive unit
tie rod
tie rod holder
front gear
case cover
center gear
6 mm bearing
center shaft
10mm
bearing
center gear
6mm bearing
center shaft
front differential drive shafts
screws center gears 6mm bearings
10mm bearings
center shafts
M
L
LL
60-390
Installation Difficulty: ADVANCED
What’s Included
