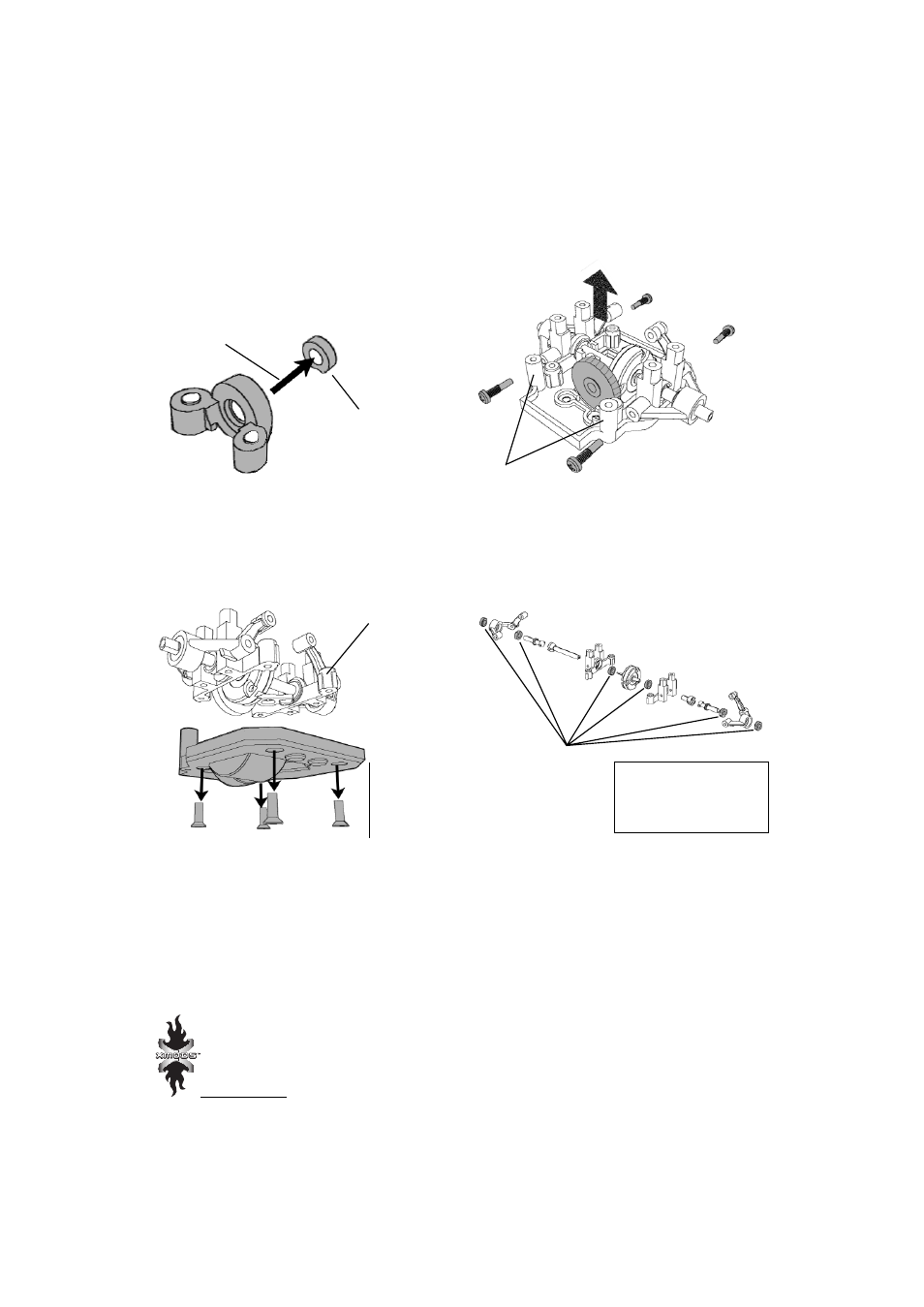

Remove the four screws from the rear lower deck to
release the rear arm base and detach the rear arms.

8

Disassemble the axle to access the six plastic
bushings. Replace each plastic bushing with a
metal ball bearing.

Rear Arm Base

Rear Lower Deck

9

This completes the installation of the rear bearings.
Reassemble the rear section of the car by following Steps
1-8 in reverse order.

5

Remove the two screws beneath the chassis that secure
the center shaft holder in place. Use a narrow, flat bladed
screwdriver to remove the plastic bushing from the
center shaft holder and replace it with a metal ball
bearing.

Remove plastic
bushing and replace
with metal bearing

Center Shaft Holder

Rear Arms

6

Remove the four screws from the rear arms to
release the rear support arms.

Bearings

Tip: When reassembling,

align the axles with
the D-cut in the
differential gear.
