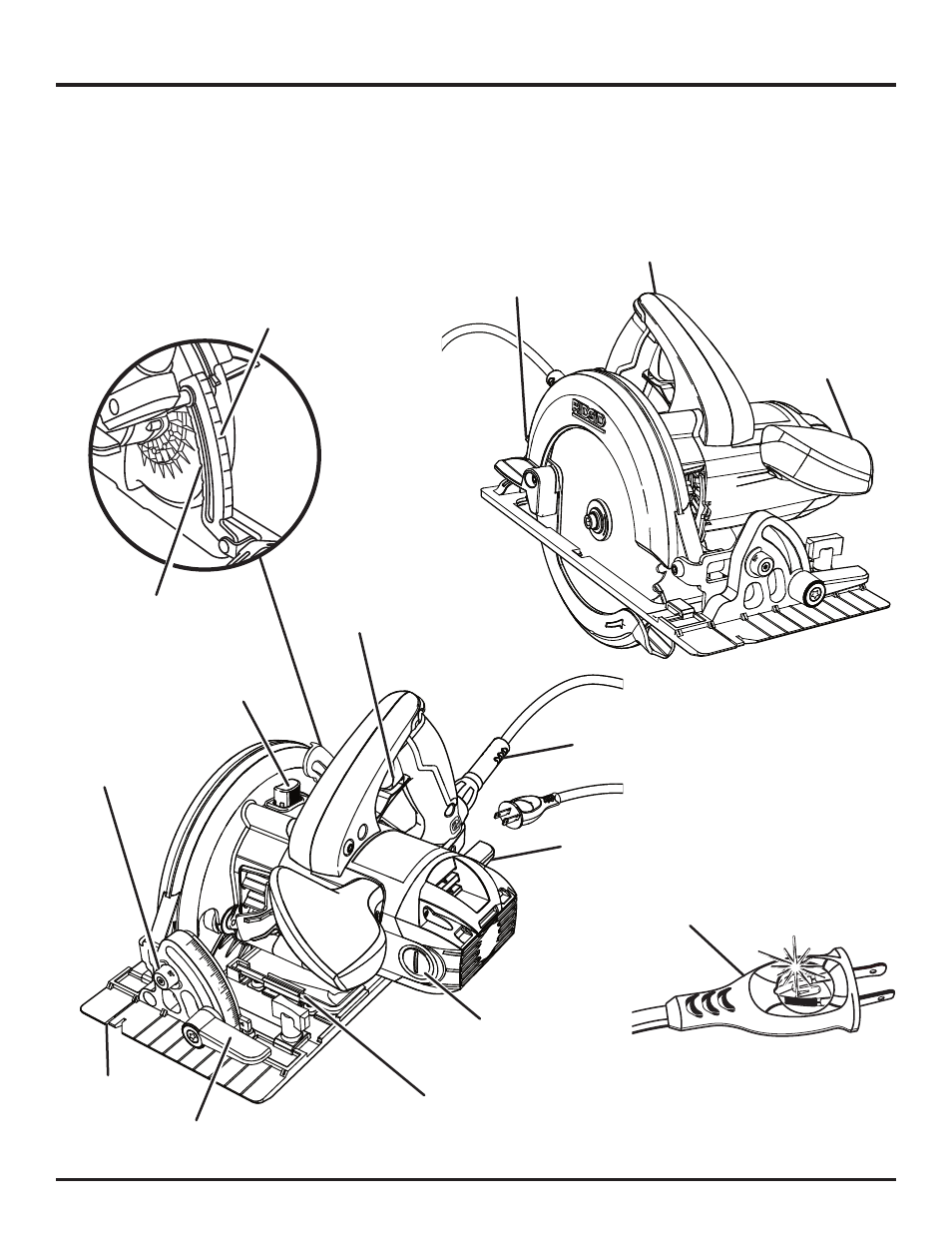

FEATURES
Fig. 1
PRODUCT SPECIFICATIONS
Blade Diameter ......................................................6-1/2 in.
Blade Arbor .............................................................. 5/8 in.
Cutting Depth at 90° ..............................................2-1/8 in.
Cutting Depth at 45° ..............................................1-5/8 in.
Cutting Depth at 50° ..............................................1-1/2 in. No Load Speed .................................... 6,100 r/min. (RPM)
Input ................................120 V, 60 Hz, AC only, 12 Amps
Net Weight ................................................................. 8 lbs.
LIGHTED PLUG
FULL LENGTH
KERF INDICATOR
HANDLE
FRONT HANDLE
DUST CHUTE
45
30
15
22 2 1
50
DEPTH ADJUSTMENT
LEVER
SPINDLE LOCK
SWITCH TRIGGER
BEVEL ADJUSTMENT
LEVER
HEX KEY STORAGE
POSITIVE 50°
STOP BUTTON
EXTERNALLY
ACCESSIBLE
BRUSH (2)
DEPTH OF CUT SCALE
PLYWOOD ID SYSTEM
DETACHABLE CORD
