MAINTENANCE

CHECKING/REPLACING EXTERNAL
BRUSHES

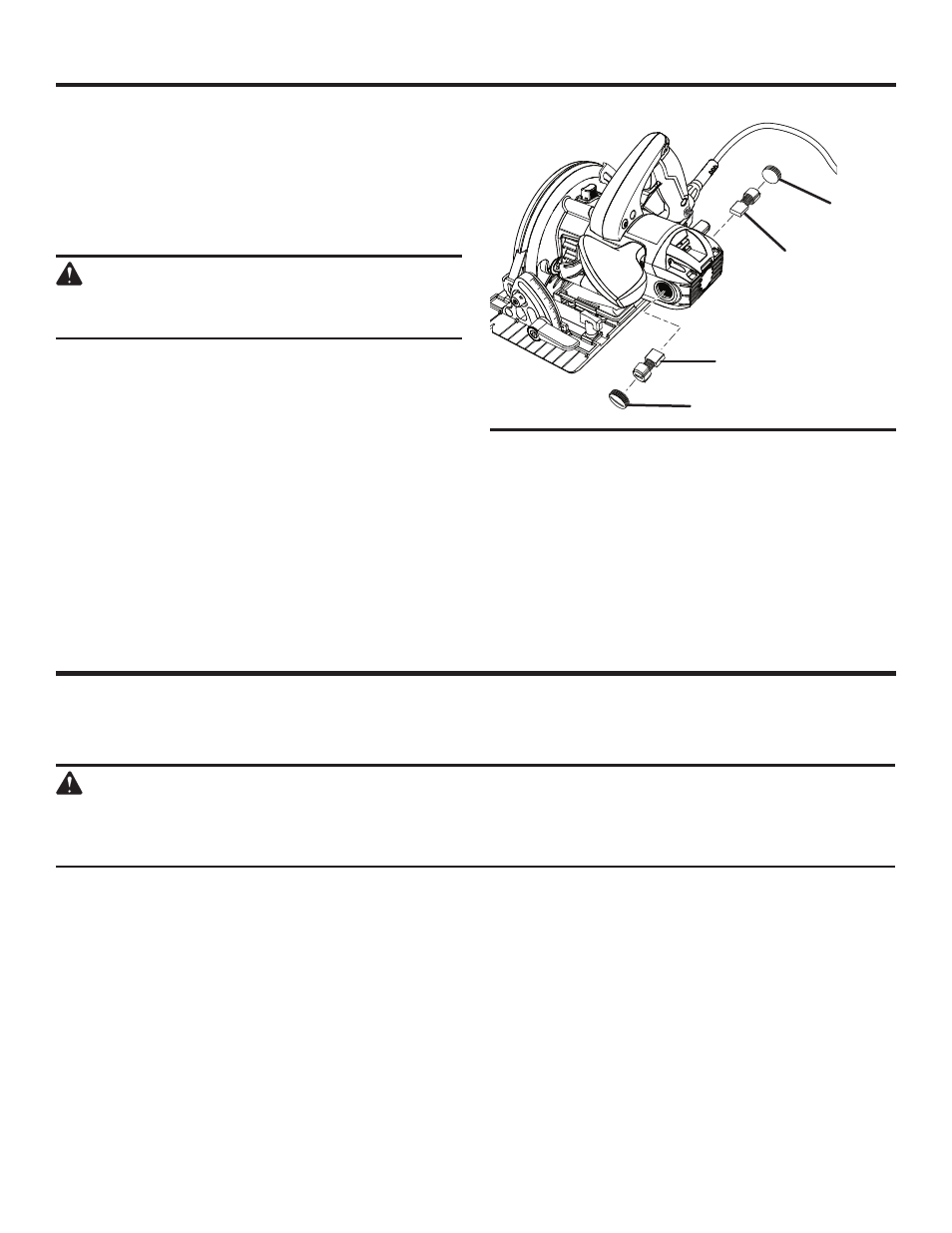

See Figure 25.

NOTE:

The saw is equipped with externally accessible

brushes.

Unplug the saw.

WARNING:

Failure to unplug the tool could result in accidental
starting causing possible serious injury.

NOTE: Brush caps (2) are located on each side of the

motor housing.

Remove brush caps (2) using a screwdriver.

Remove brush assemblies (2).

Check for wear. Replace both brush assemblies when

either has less than 1/4 in. length of carbon remaining.

NOTE: Do not replace one side without replacing the
other.

Reassemble using new brush assemblies. Make sure

curvature of brush matches curvature of motor and that
brush moves freely in brush tube.

Reassemble by reversing the steps listed above.

Tighten all brush caps securely.

Do not over tighten.

Fig. 25

BRUSH

CAP

BRUSH

ASSEMBLY

BRUSH CAP

BRUSH

ASSEMBLY

Look for these accessories where you purchased this product:
� Edge Guide ...................................................................................................................................................... 631697001

WARNING:

Current attachments and accessories available for use with this tool are listed above. Do not use any attachments
or accessories not recommended by the manufacturer of this tool. The use of attachments or accessories not
recommended can result in serious personal injury.

ACCESSORIES
