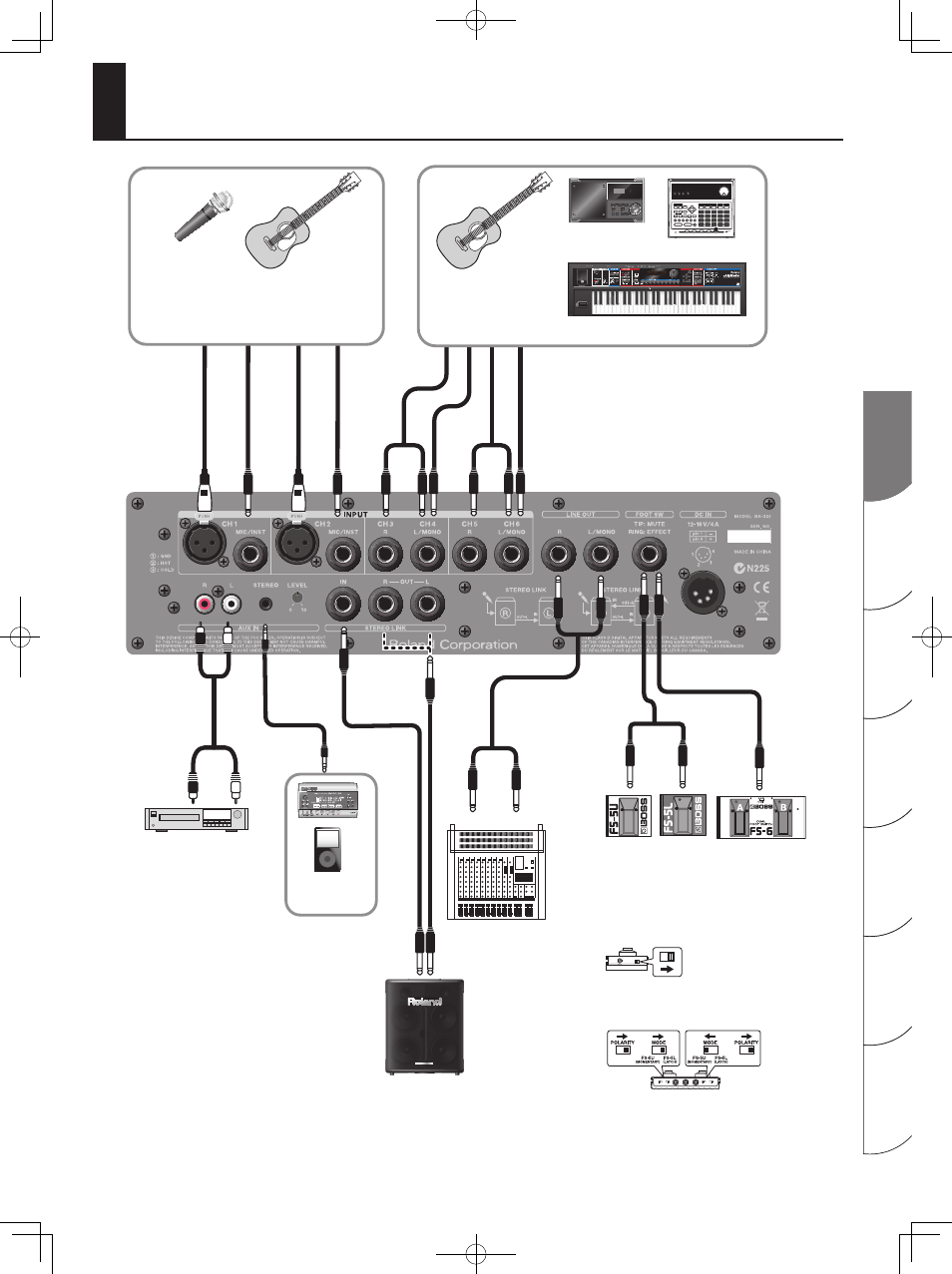

Example Connections
Microphone
Rhythm Machine
Sound module
Synthesizer, etc.
Musical instrument
(Electric acoustic guitar,
etc.) Musical instrument
(Electric acoustic guitar,
etc.)
CD player, etc.
Portable audio
player, etc.
R L
R L
or PCS-31
PCS-33
Red White
FS-5U FS-5L FS-
Foot switches
Eff ect On/Off Mute On/Off Eff ect On/Off Mute On/Off
STEREO
LINK OUT
Mixer, etc.
STEREO
LINK IN
Set the FS-5L’s or FS-5U’s polarity switch
as shown below.
When making the connection using the FS-6,
set the POLARITY and MODE switches as
shown below.
B A
Other BA-330
When connection cables with resistors are used, the volume level of equipment connected to the inputs may be low. If this happens,
use connection cables that do not contain resistors. *
