RedMax EXZ2401S-PH - Manual (Page 36)

36
8. Operation
English
(HE-EX2 only)
■ STARTING ENGINE
The RedMax stick edger is designed for edging lawn in
gardens, parks, roadsides and so on.
Before starting the engine, take the operating position
and adjust the handle position and the wheel height as
necessary.

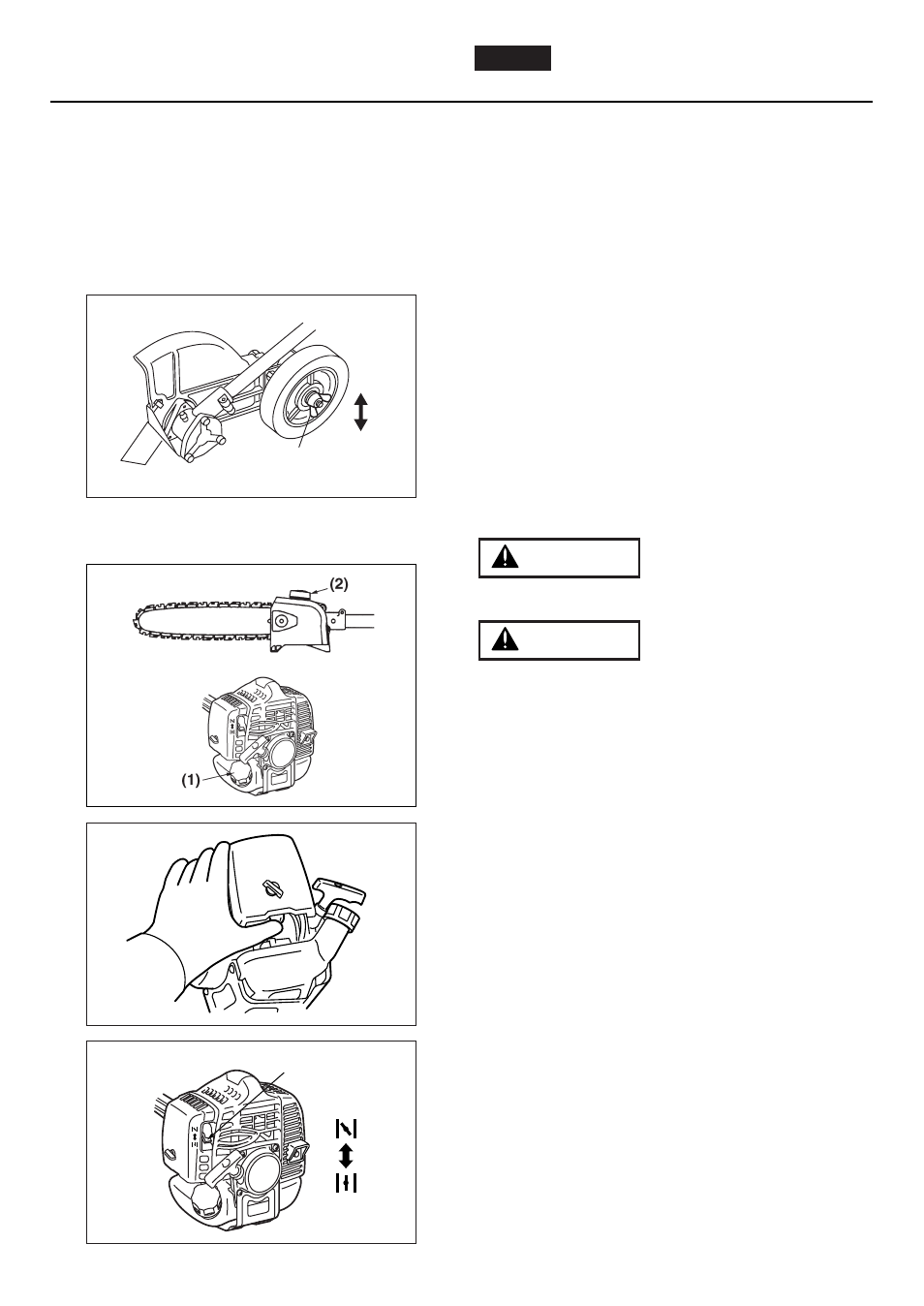

■ ADJUSTING WHEEL HEIGHT
1. Loosen the wing nut and change the wheel height to
obtain desired cutting depth. (OP1)
(1) Deep cut
(2) Shallow cut
(3) Wing nut
2. After adjusting the height, tighten the wing nut
securely.
Tightening Torque: 51~68 in-lbs (6~8 N.m)
Never adjust wheel height with the engine running.
The cutting head will start rotating upon the engine
starts.
1. Feed fuel into the fuel tank and tighten the cap
securely. (OP2)(1)
(PS-EX only) Feed the chain oil into the oil tank and
tighten the cap securely, too. (OP2)(2)
(1) Fuel (2) Chain oil
2. Rest the unit on a flat, firm place. Keep the cutting
head off the ground and clear of surrounding objects
as it will start rotating upon starting of the engine.
3. Push the primer pump several times until overflown
fuel flows out in the clear tube. (OP3)
4. Move the choke lever to the closed position. (OP4)
WARNING
WARNING
OP3
(1)
(2)
(3)
OP4
(1)
(2)
(3)
OP1
OP2
