5. Connection Procedure (See Figure 3)


The procedure for connecting the M3T-FLX-80NRA is shown
below.

(1) Mount the NQPACK080RA on the target system.

(2) Attach the YQPACK080RA on the NQPACK080RA.

(3) Secure the four corners of the YQPACK080RA with the

YQ-GUIDE's.

Do not use the screws included with the

YQPACK080RA for fixing the YQPACK080RA.

The screwdriver included with the NQPACK080RA

is used for fixing the HQPACK080RA. Do not use if

for fixing the YQ-GUIDE's.

(4) Attach the M3T-FLX-80NRA on the YQPACK080RA.

(5)

Connect the probe tip of the emulator to the

M3T-FLX-80NRA.

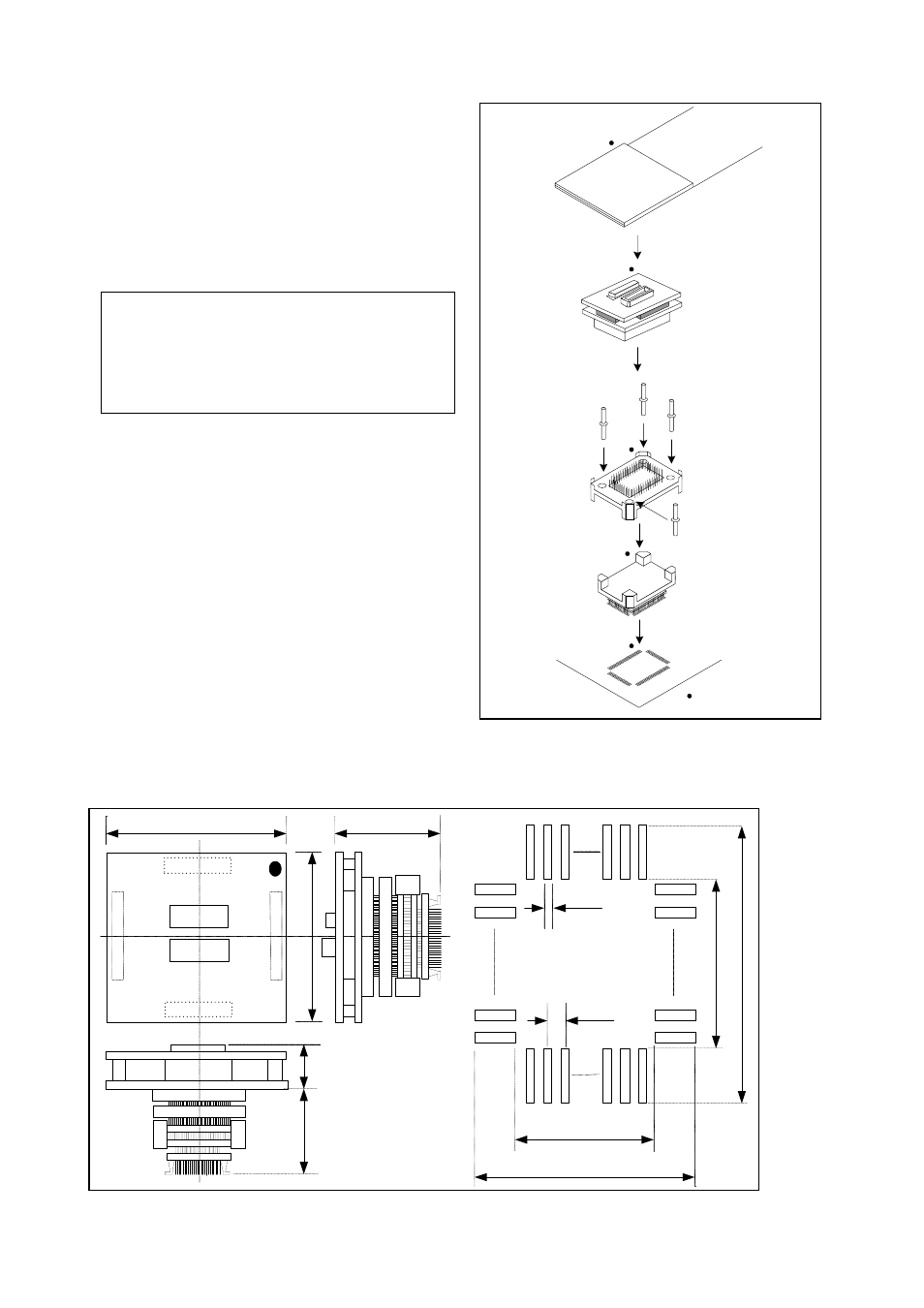

Figure 3 Connection procedure of the M3T-FLX-80NRA

6. External Dimensions and a Sample Foot Pattern

Figure 4 External dimensions and a sample foot pattern of the M3T-FLX-80NRA

50

CN
1

26

25

1

M

A

D

E

IN
J

A

P

A

N

1

9

.5

M

3

T-
FLX-

80
N

R

A

R
EV.

A

1

2

.0

3

1

.0

37.0

31.5

0.5

0.8

19.8

24.3

1

3

.8

1

8

.3

26

25

50

1

M3T-FLX-80NRA

YQ-GUIDE (x4)

YQPACK080RA

NQPACK080RA

80-pin 0.8-mm-pitch
(80P6N-A) foot pattern

: No. 1 pin
Be sure to align the pins.

Probe of emulation pod

(5)

(4)

(3)

(2)

(1)
