15
Making the Connections
About Stereo Link
You can easily play back high power sounds (350 W + 350 W) in stereo by connecting two SA-300s together with one or two audio
cables (1/4-inch phone type). This function is called “Stereo Link.”
The SA-300 features a stereo mixer function, which enables you to output either left or right channel signals from the STEREO
LINK OUT jack.
Connecting the SA-300s according to the instructions below allows you to play sounds in stereo.

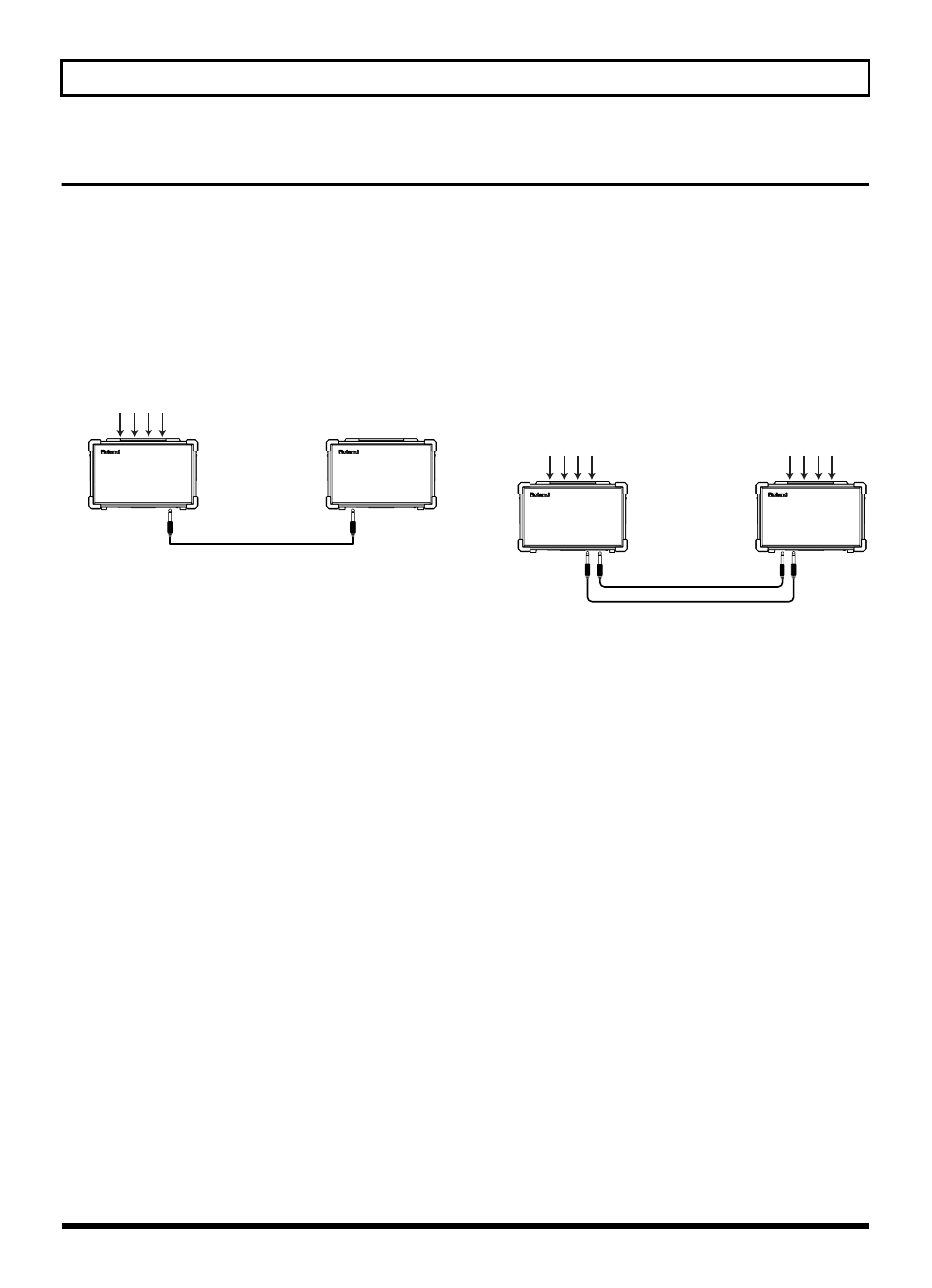

Example 1
Up to four input devices can be connected.
fig.02-06
Operation
1. Connect the devices to the SA-300 (L).
2. Connect the STEREO LINK OUT R jack on the SA-300
(L) and the STEREO LINK IN jack on the SA-300 (R).
3. Turn on both SA-300 (L) and SA-300 (R).
4. Adjust the volume levels on all devices.
5. Adjust the SA-300 (L) and SA-300 (R) volume levels
separately using their MASTER VOLUME knobs.
If you want to connect input sources to the SA-300 (R)
As described in step 1 of example 1, connect the R side’s
STEREO LINK OUT L jack to the L side’s STEREO LINK IN
jack.
Example 2
This arrangement lets you play in stereo, making maximum
use of the two SA-300s’ mixer functions (with eight inputs).
All Channel 4 LINE jacks function as mono inputs.
fig.02-07
Operation
1. Connect the devices to the SA-300 (L) and SA-300 (R).
2. Connect the STEREO LINK OUT R jack on the SA-300
(L) and the STEREO LINK IN jack on the SA-300 (R).
3. Connect the STEREO LINK OUT L jack on the SA-300
(R) and the STEREO LINK IN jack on the SA-300 (L).
4. Turn on both SA-300 (L) and SA-300 (R).
5. Adjust the volume levels on all devices.
6. Adjust the SA-300 (L) and SA-300 (R) volume levels
separately using their MASTER VOLUME knobs.
About the Volume and Tone Settings
Adjust the R and L volume levels separately using their MASTER VOLUME knobs.
You can adjust the EQUALIZER (LOW/MIDDLE/HIGH knobs), LOW BOOST, and WIDE independently for the L and R sides.
Basically, they should be set to the same positions, but you can adjust each one as necessary to suit the needs of a particular setup.
The EXP PEDAL/REMOTE SW jack affects only the input signals to the SA-300 to which the expression pedal or the foot switch is
connected.
STEREO LINK
OUT R
STEREO LINK
IN
CH 1–4
SA-300
(L)
SA-300
(R)
STEREO LINK
IN
STEREO LINK
IN
STEREO LINK
OUT R STEREO LINK
OUT L
CH 1–4 CH 1–4
SA-300
(L)
SA-300
(R)
