ROTEL RT-1082 User Manual

Page 4

RT-1082 DAB/AM/FM Stereo Tuner

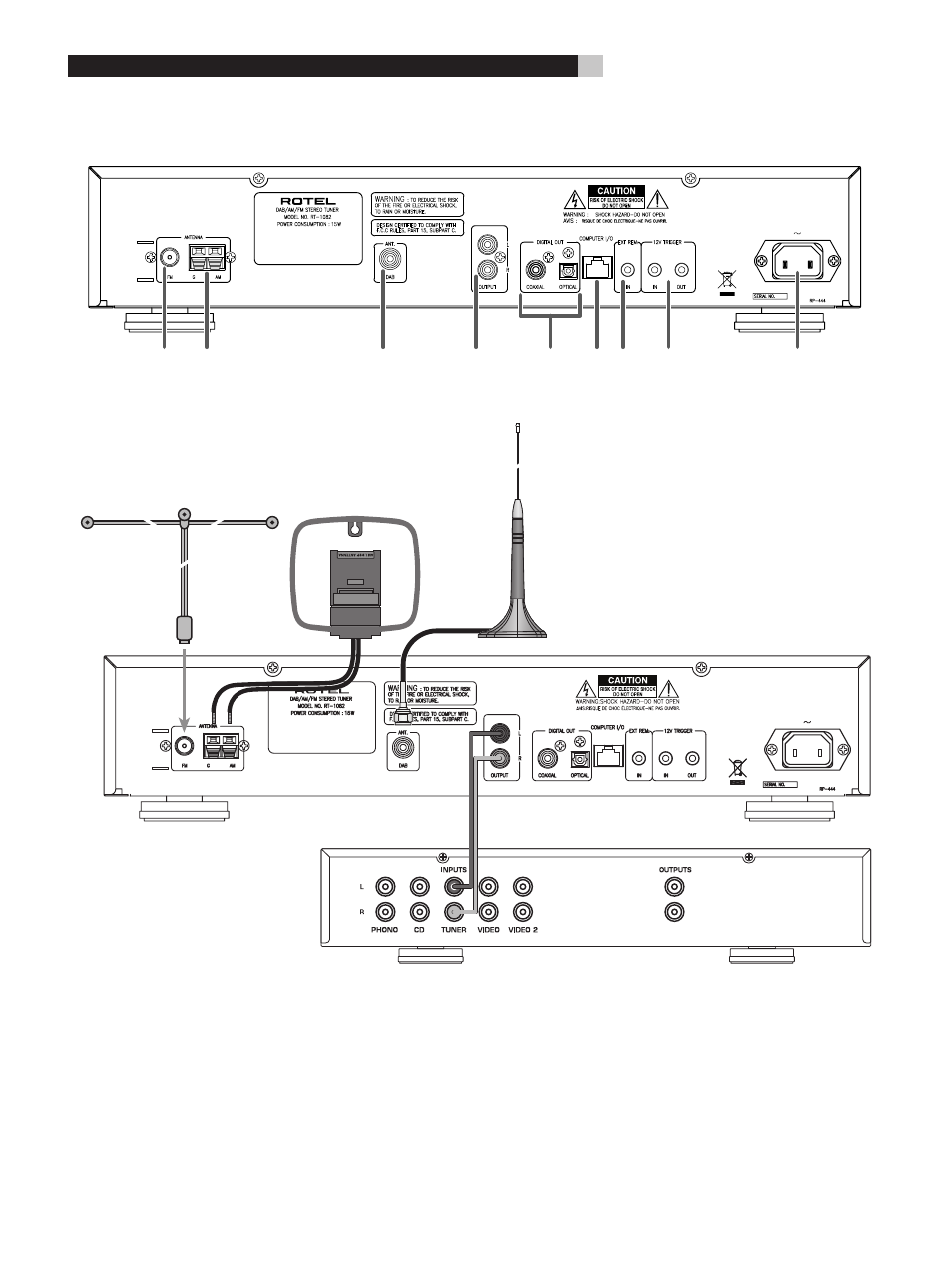

Figure 3: Rear Panel Connections

Figure 4: Connection Illustration

Rotel RT-1082

Amplifier

AM Antenna

FM Antenna

DAB Antenna

Important Notes

When making connections be sure to:

✔

Turn off all the components in the system before hook-

ing up any components, including loudspeakers.

✔

Turn off all components in the system before changing

any of the connections to the system.

It is also recommended that you:

✔

Turn the volume control of the ampliﬁer all the way down

before the ampliﬁer is turned on or off.

� �

�

��

�
