Quick Start

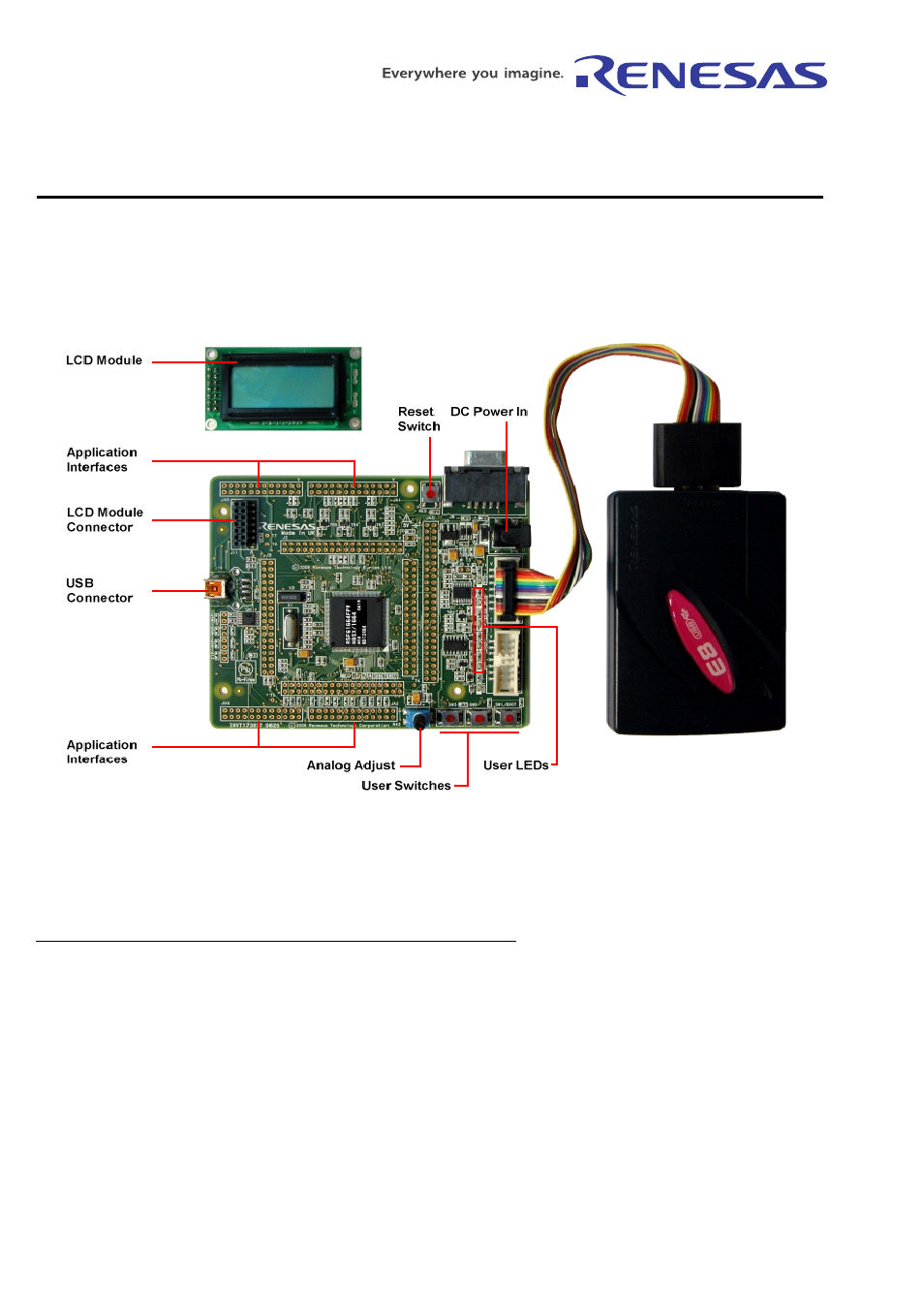

Renesas Starter Kit for H8SX1664
1. Installation
Do not connect the E8 debugger hardware until the software support has been installed. hardware until the software support has been installed.
1. Insert the CD into your computer’s CD-ROM drive. The CD should automatically run the installation program. If the installer does not start, browse to the RSK
directory from the CD root folder and double click on ‘setup.exe’.
2. The installer will ask you which language is to be used, please choose the appropriate one.
3. On the first screen of the installer proper, click .
4. The License Agreement will be shown, click .
5. The next screen asks you to pick the world region – please select and click .
6. Select the software components to install.
For the RSKH8SX1664 please select High-performance Embedded Workshop and all sub options, H8SX,H8S,H8 Family and sub-options, Flash Development
Toolkit and the Auto Update Utility.
Click to continue.
7. The destination folders are specified on the next screens. It is recommended to accept the default settings. Click to continue.
8. Click on all screens until the Installation process commences.
9. After the installation the machine’s site code will be shown, this is not important at this stage, click then .
10. The Auto-update dialog box will be launched. Configure the Auto-update settings dialog to allow your installation to be checked for updates.
D006154_11_S01_V02
