4.4 External Dimensions
4.4.1 External Dimensions of the Emulation Probe

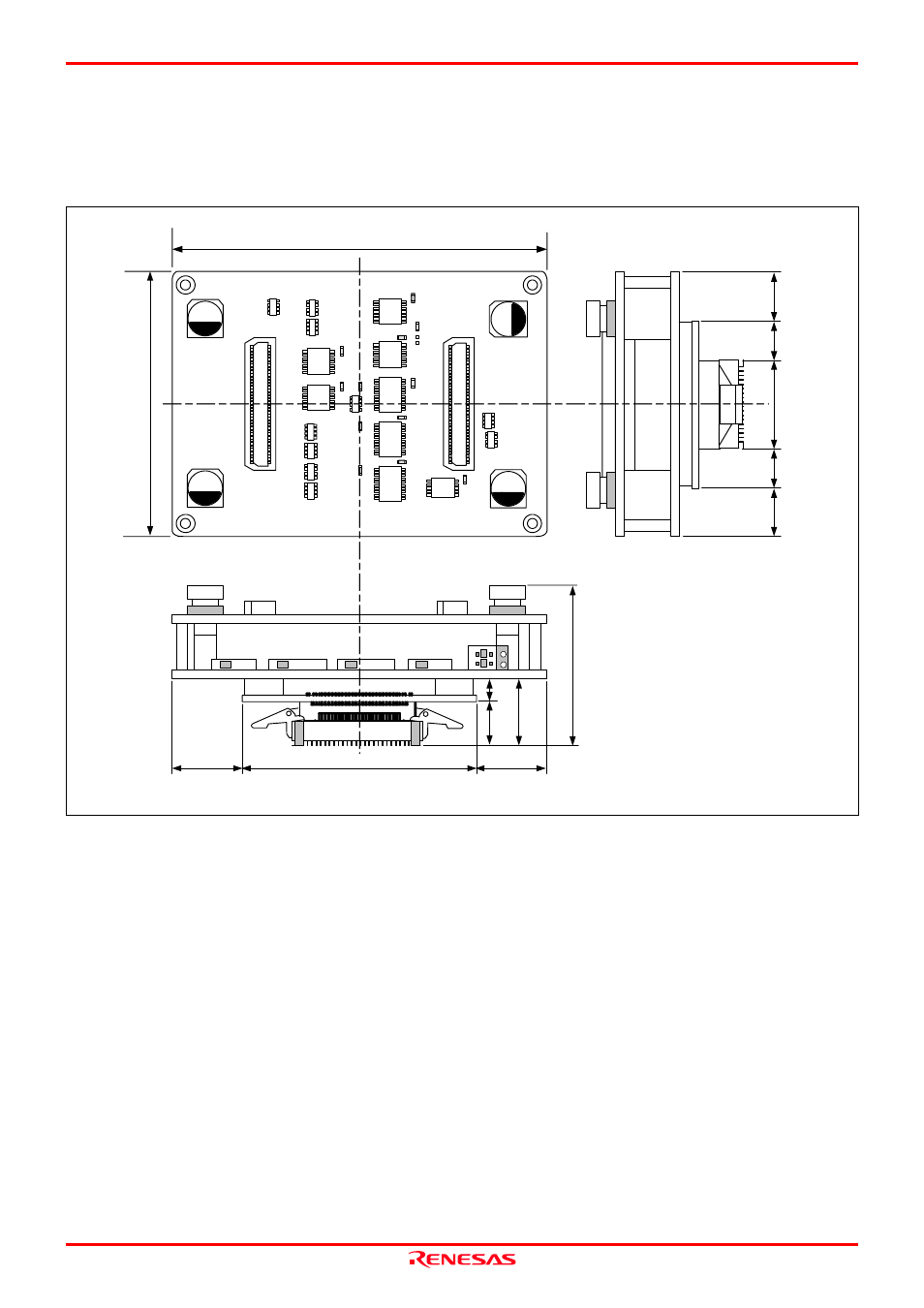

Figure 4.3 shows external dimensions of the M30850T2-EPB connected with the M30800T-PTC and LCC socket.
PCA7501EPBA REV.A
MADE IN JAPAN
85.0
60.0
30.0
16.3
15.0
5.5
10.8
55.0 15.0
10.0
21.0
9.0
10.0
9.0
Unit : mm
Figure 4.3 External dimensions of the emulation probe
