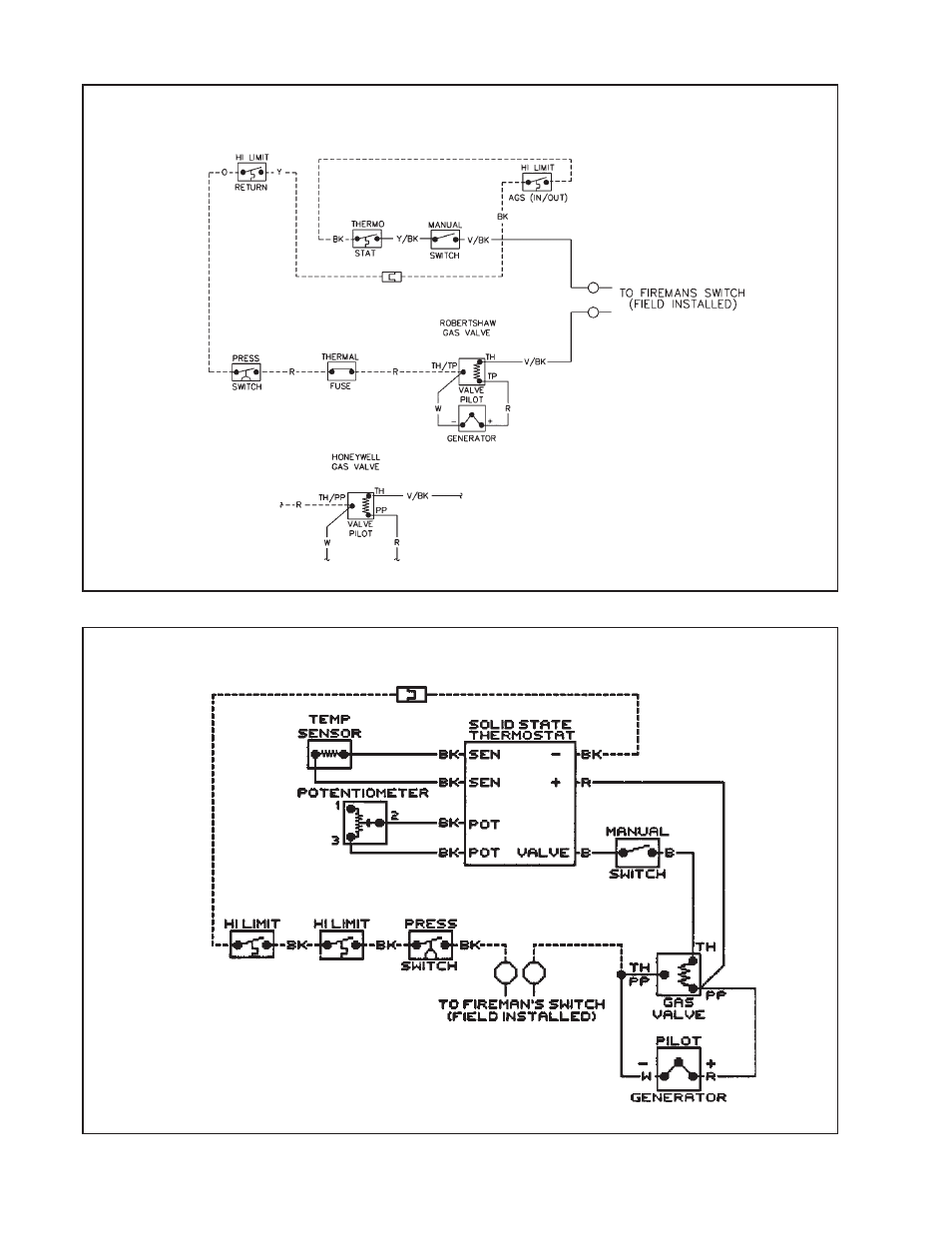

WIRING DIAGRAM MILLIVOLT UNITS
WITH MECHANICAL THERMOSTAT

WIRING DIAGRAM MILLIVOLT UNITS
WITH SOLID STATE THERMOSTAT

Fig. # 2246e

Fig. # 2353

16

If required by local code,
install at this location.
