■ CHT2200

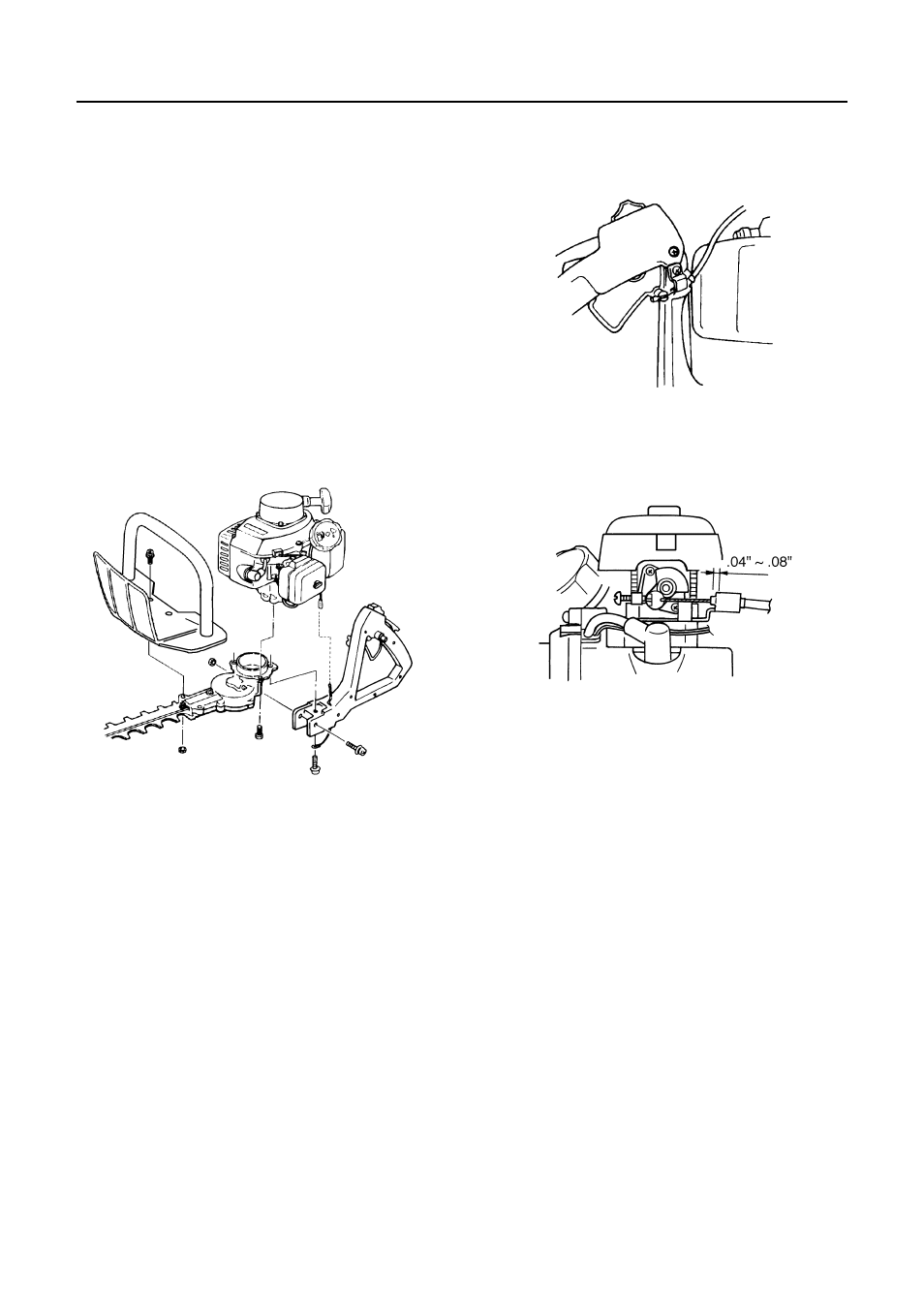

1. Attach the engine to the clutch housing of
the cutter unit. Casually fix the front 2
points with the screws(.55" long).
2. After connecting the ground wire, install
the rear handle to the clutch housing with
the screw(2" long) and the nut.
3. Put the screw(1.6" long) through the
ground wire terminal and the rear handle,
and in to the engine mounting base.
Securely tighten all of the engine mounting
screws.
4. Attach the front handle onto the gear
housing and fasten with 2 screws(1.2"
long) and nuts.
5. Connect the throttle cable with the lever
on the rear handle, and secure the end
with the hardware attached to the handle.
6. Check the cable play and, if necessary,
adjust between .04” and .08” by bending
throttle wire receiver of the bracket with
needle nose pliers.
Set up
