11 

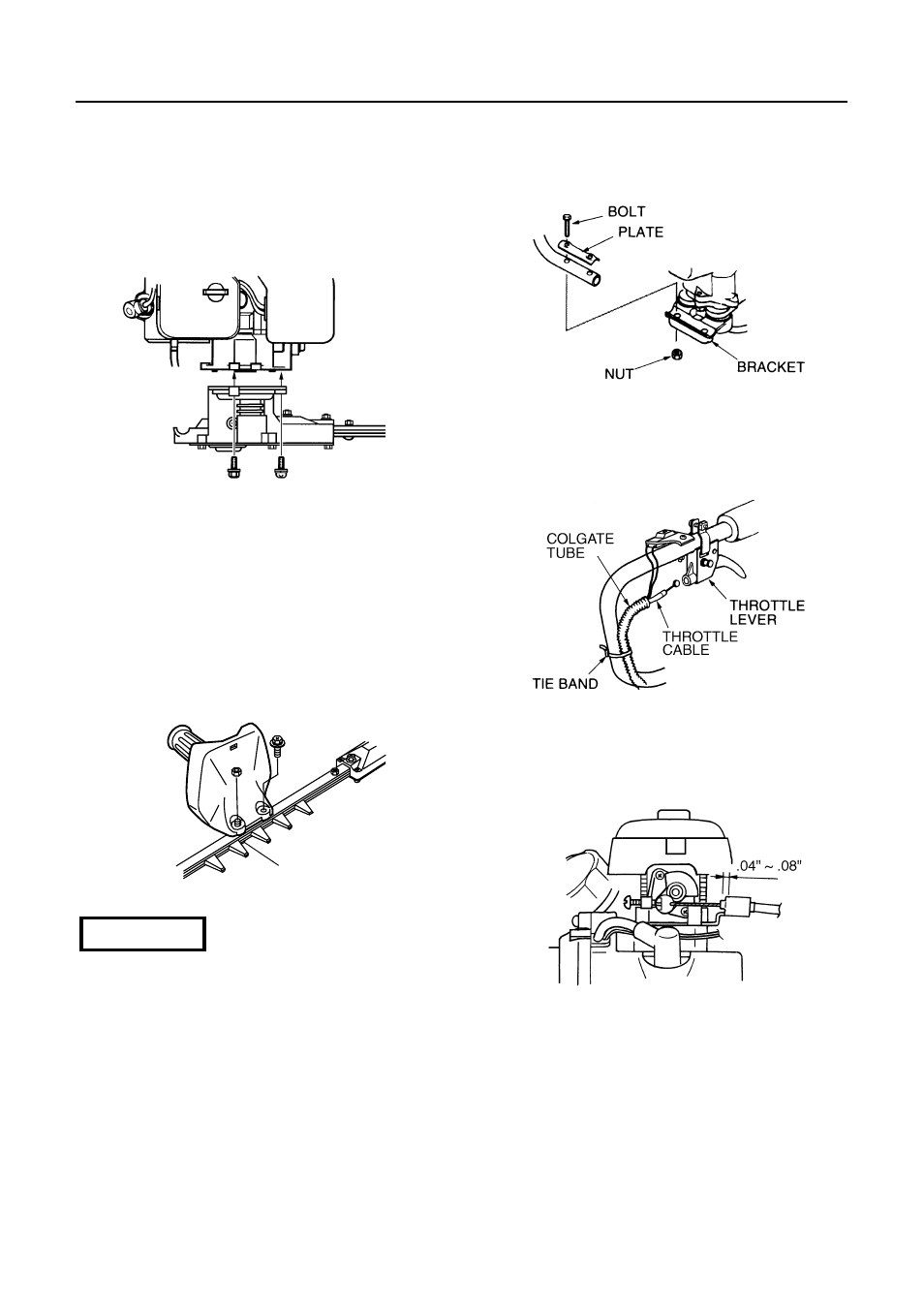

Set up
■ HT2200
1. Join the engine unit to the clutch housing
of the cutter unit, with the fuel tank on the
blade side.
2. Align the mounting holes and tighten the
engine securely with the 3 screws.
3. Remove the right handle mounting screw,
nut, and washer casually attached on the
blade beam.
4. Set the right handle on the beam making
the grip come to the opposite side of the
cutting teeth, and attach with the hardware
removed before. When fastening the nut,
hold the screw to keep the blade washer
loose.
• To assure designed cutting performance,
always keep a half spare turn for the blade
screws. Over tightening will cause blade
seizure and premature wear of the clutch
system. Too loose screws will make the
gap between the blades large, and result in
poor cutting performance.
NOTE
5. Install the left handle to the bracket
attached to the clutch housing. Use the
hardware as shown below.
7. Cover the throttle cable with colgate tube.
Connect the throttle cable and the switch
wire. Hold the wires at the lower part of
the handle using the tie band.
8. Check the cable play and, if necessary,
adjust between .04” and .08” by bending
throttle wire receiver of the bracket with
needle nose pliers.
BLADE WASHER
(Keep Loose)
