7

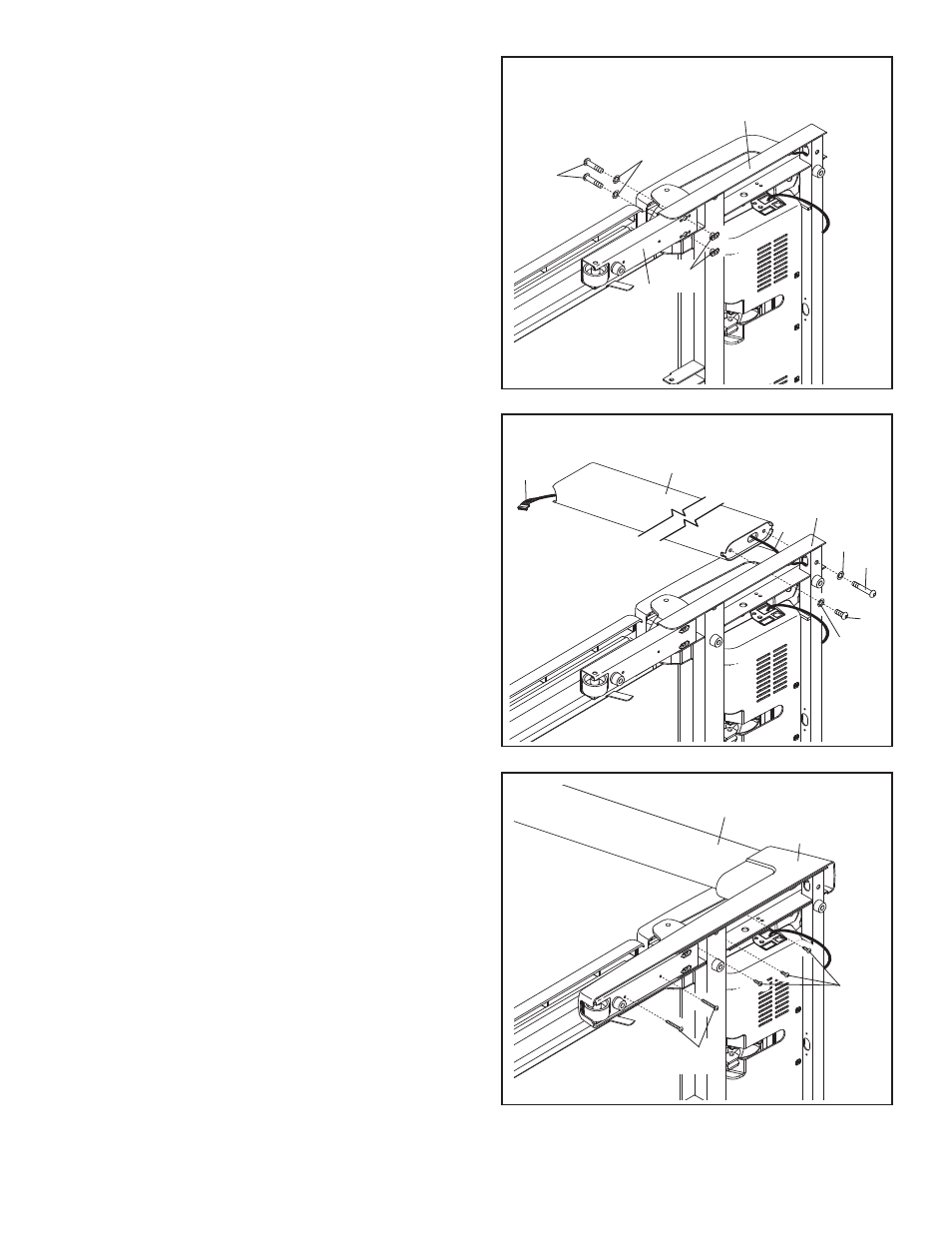

2. Insert an Extension Leg (97) into the Base (85)
as shown. If necessary, use a rubber mallet to
fully insert the Extension Leg. Next, hold two
Extension Leg Nuts (10) in the bottom of the
Extension Leg, and tighten two 5/16" x 2" Bolts (2)
with two 5/16" Star Washers (9) into into the top
of the Extension Leg.
97
85
9
2
2
3. Hold the Right Upright (113) near the Base (85).
Insert the Upright Wire Harness (73) into the bot-
tom of the Right Upright and out the top.
Attach the Right Upright (113) to the Base (85)
with a 3/8" x 1" Bolt (4), a 3/8" x 2 3/4" Bolt (5),
and two 3/8" Star Washers (8).
Make sure that
the Upright Wire Harness (73) is not pinched.
Start both Bolts before tightening them.
113
8
5
4
8
85
73
73
3
4. Slide the Right Base Leg Cover (83) over the end
of the Right Upright (113). Attach the Right Base
Leg Cover with two #8 x 2 1/4" Screws (7) and
three #8 x 3/4" Screws (6).
Be careful not to
overtighten the Screws.
113
83
6
4
7
10
