Getting to Know Your Air
Compressor (Continued)

1. Air Storage Tanks. The tanks store

air for later use.

2. Regulated Outlet Gauge. This gauge

shows at-a-glance, air pressure at
outlet. Air pressure is measured in
pounds per square inch (PSI). Most
tools have maximum pressure ratings.
Never exceed the maximum pressure
rating of the tool you are using. Be
sure this gauge reads ZERO before
changing air tools or disconnecting
hose from outlet.

3. Handle. Used to move the compres-

sor.

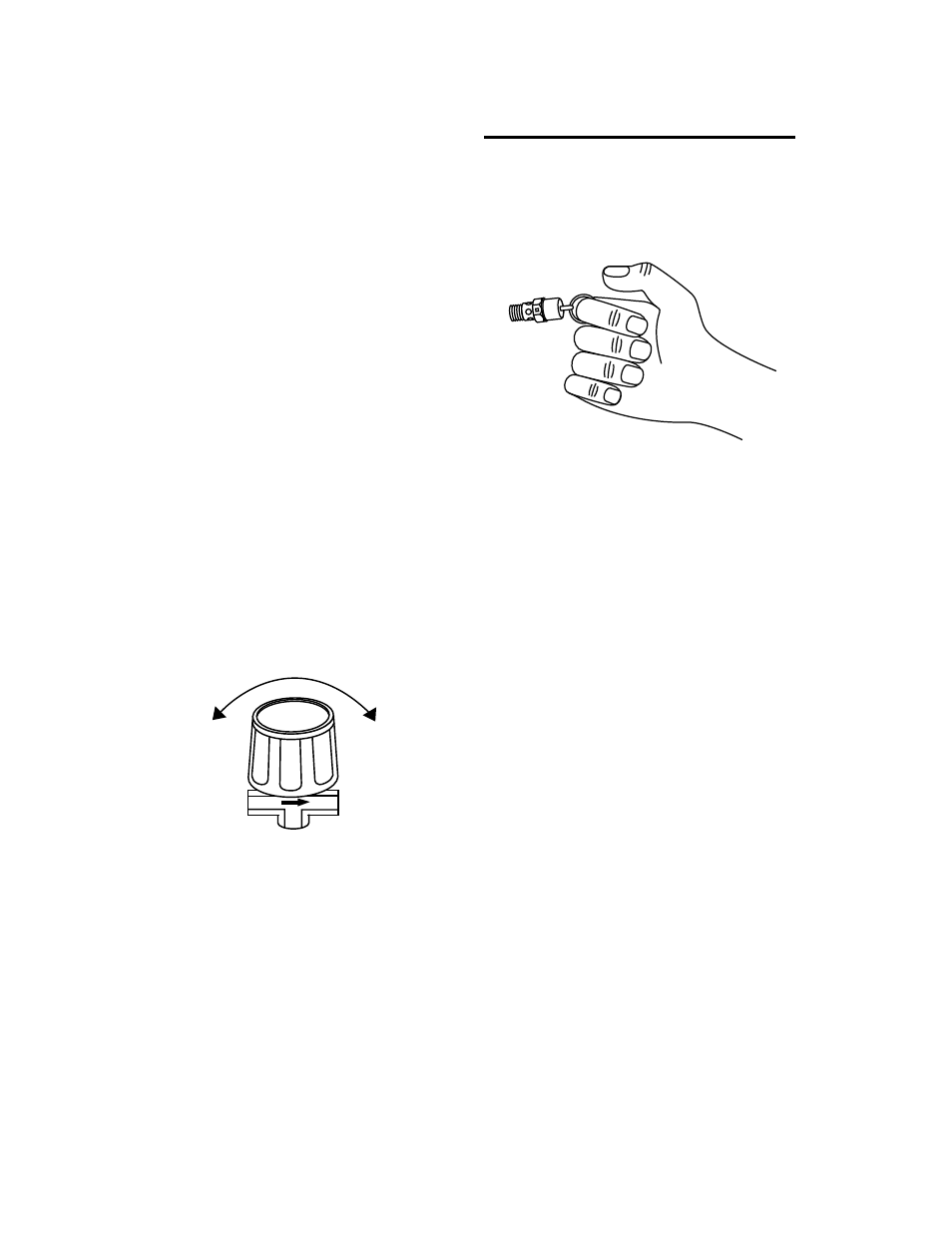

4. Regulator Knob. This knob controls

air pressure to an air operated tool or
paint spray gun. Turning the knob
clockwise increases air pressure at
the outlet. Turning counterclockwise
will lower air pressure at the outlet.
Fully counterclockwise will shut off the
flow of air completely.

5. Tank Pressure Gauge. Gauge shows

pressure in air receiver indicating
compressor is building pressure prop-
erly.

6. ASME Safety Valve. This valve auto-

matically releases air if the tank pres-
sure exceeds the preset maximum.

7. Air Outlet Fittings. These fittings are

1/4” universal-style quick connect fit-
tings and allow rapid tool changes.

8. Air Filter. The air filter keeps dirt and

debris from entering the compressor
pump and reduces compressor noise.

9. On/Off Switch. This switch allows

manual control of the compressor.
Note that when the switch is turned
on, the compressor will automatically
start and stop depending on tank
pressure.

10. Tank Drain Valve. The tank drain

valve allows moisture to be removed
from the tank.

Open
