98%High-efficiency Hi Delta with optional CHX
condensing heating system
Hi Delta with CHX achieves unequaled 98% thermal efficiency at full fire. It combines
the reliability of the Hi Delta boiler with an optional CHX heat exchanger which pre-
vents condensation in the heater’s primary combustion chamber. Self contained sec-
ondary heat exchanger can be inspected and maintained without disturbing the vent
or plumbing connections. The result is an ultra high efficiency heater that lasts.
(See Cat. 1000.17)
Flex Gas TM
Dual-fuel boilers and water heaters
With its patented, CSA-certified rapid fuel switchover system, the Hi Delta FlexGas
is an ideal solution for interruptible-fuel applications (natural/propane gas).
(See Cat. #1000.20)
Options

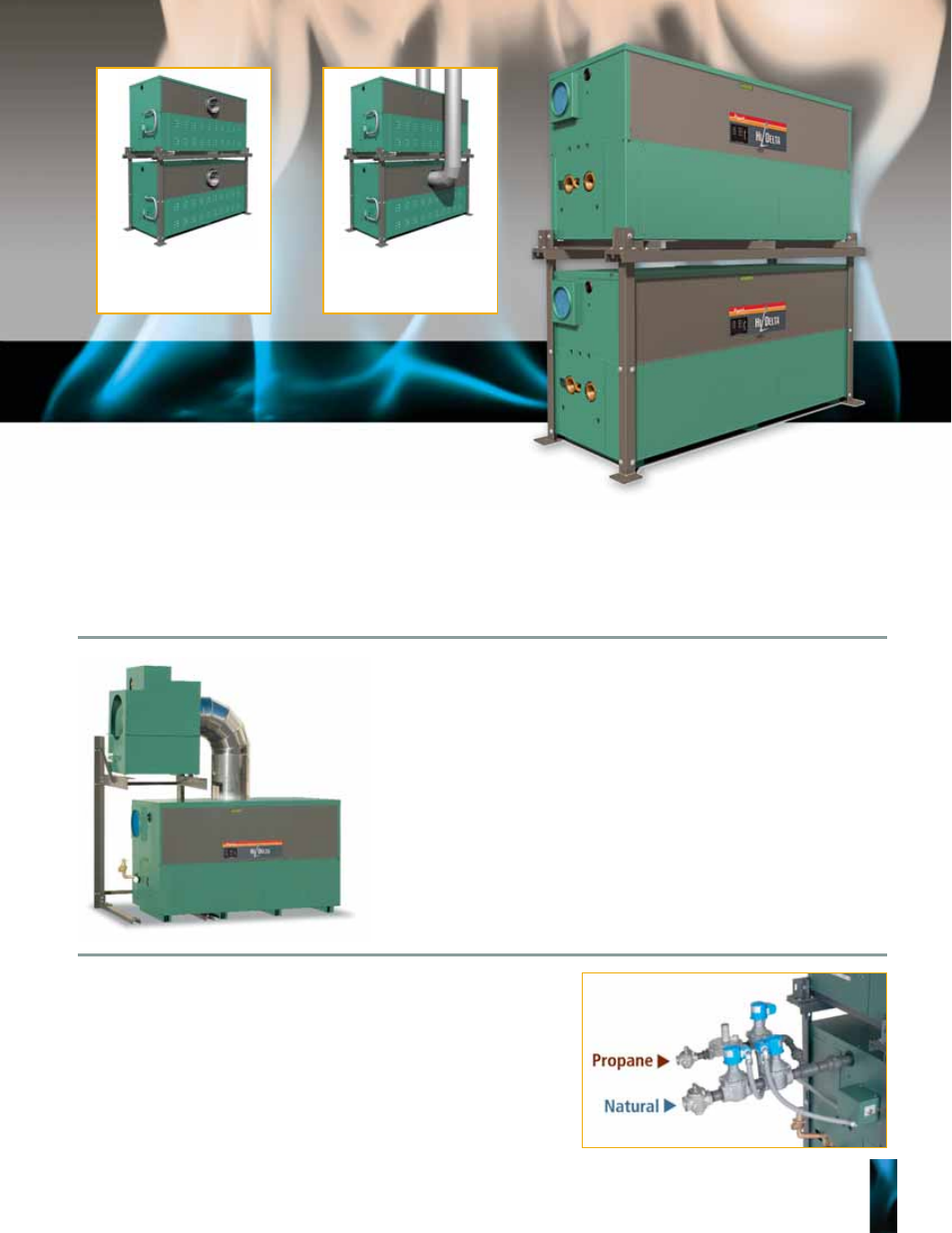

SureRack TM Kit
The perfect solution for today’s most space challenged equipment rooms.
Stacking two Hi Delta 2342 boilers provides over 4.6MMBTU in just over
26 square feet plus clearances. All components (except pumps and PRV’s)
are contained inside the cabinet, so there won’t be any gas valves or fans
hanging off the unit. The units remain fully serviceable even while racked.
• For models 302 thru 2342
• No Vent Offset Required
• Small Footprint
• Fits in Low-Ceiling Room
• Heavy-Duty Construction
• Easy Assembly
• All Hardware Included
• Still Allows for Complete Servicing
Sidewall Vent
Category III
Vertical Venting
Category I (Type B)
See Cat. 1000.16 for
complete SureRack Details
• For models 402 thru 2002
• Top or rear CHX mounting options
• Up to 4.0MMBTU if used with the
SureRack racking system
• Fully-engineered rack systems simplify
jobsite installation and set-up
• Indoor/Outdoor installation
• Fully certified vent systems available
• Straight tube heat exchanger outlasts
other designs and facilitates scale-
free operation – ideal for DHW
applications
• For models 302 thru 2342
• Changeover takes less than one minute
• No mechanical components to remove
or replace
• Changerover can be accomplished
while firing: simply turn the key!
• Factory-installed and tested system
• CSA-Certified
