1. Outline

The R0E5212DACFK00 is a converter board for connecting
the emulation probe R0E521000EPB00 and the compact
emulator R0E521000CPE00 for R8C/Tiny Series to a foot
pattern for 80-pin 0.5mm pitch LQFP (PLQP0080KB-A,
previous code: 80P6Q-A) of R8C/2C and 2D Groups.

2. Package Components (See Figure 1)

Table 1 Package Components

Item Quantity

R0E5212DACFK00
(Slave chip mounting board R0E521DAEPBS0
and 150mm FFC cable included)

1 pc.

YQPACK080SD
(made by Tokyo Eletech Corporation)

1 pc.

NQPACK080SD-ND
(made by Tokyo Eletech Corporation)

1 pc.

YQ-GUIDE
(made by Tokyo Eletech Corporation)

4 pcs.

R0E5212DACFK00 User's Manual (This manual)

1 pc.

3. Specifications

Table 2 Specifications

Applicable package

PLQP0080KB-A

(80-pin 0.5mm pitch LQFP)

Between R0E5212DACFK00 and

YQPACK080SD:

100 times guaranteed

Insertion/removal

iterations of

connector

Between R0E521000EPB00 or

R0E521000CPE00 and

R0E5212DACFK00:

50 times guaranteed

4. Usage (See Figure 2)

The R0E5212DACFK00 can be used for debugging and
on-board evaluation in common by mounting the
NQPACK080SD-ND on the user system.

(1) For debugging

Mount the NQPACK080SD-ND on the foot pattern of the
user system. Mount the YQPACK080SD on the
NQPACK080SD-ND, and fix them with the YQ-GUIDE’s
(do not use the screws included with the YQPACK080SD).
After connecting the R0E521000EPB00 or
R0E521000CPE00 to the R0E5212DACFK00, connect
the R0E5212DACFK00 to the YQPACK080SD.

(2) For on-board evaluation

Mount an R8C/2C or 2D Group MCU and
HQPACK080SD (separately available) in that order on the
NQPACK080SD-ND on the user system. And fix them
using a screw included with the HQPACK080SD.

Before using the R0E5212DACFK00, be sure to read "7.
Precautions" on page 4 and the R0E521000EPB00 or
R0E521000CPE00 User’s Manual.

YQ-GUIDE (x4)

YQPACK080SD NQPACK080SD-ND

R0E5212DACFK00

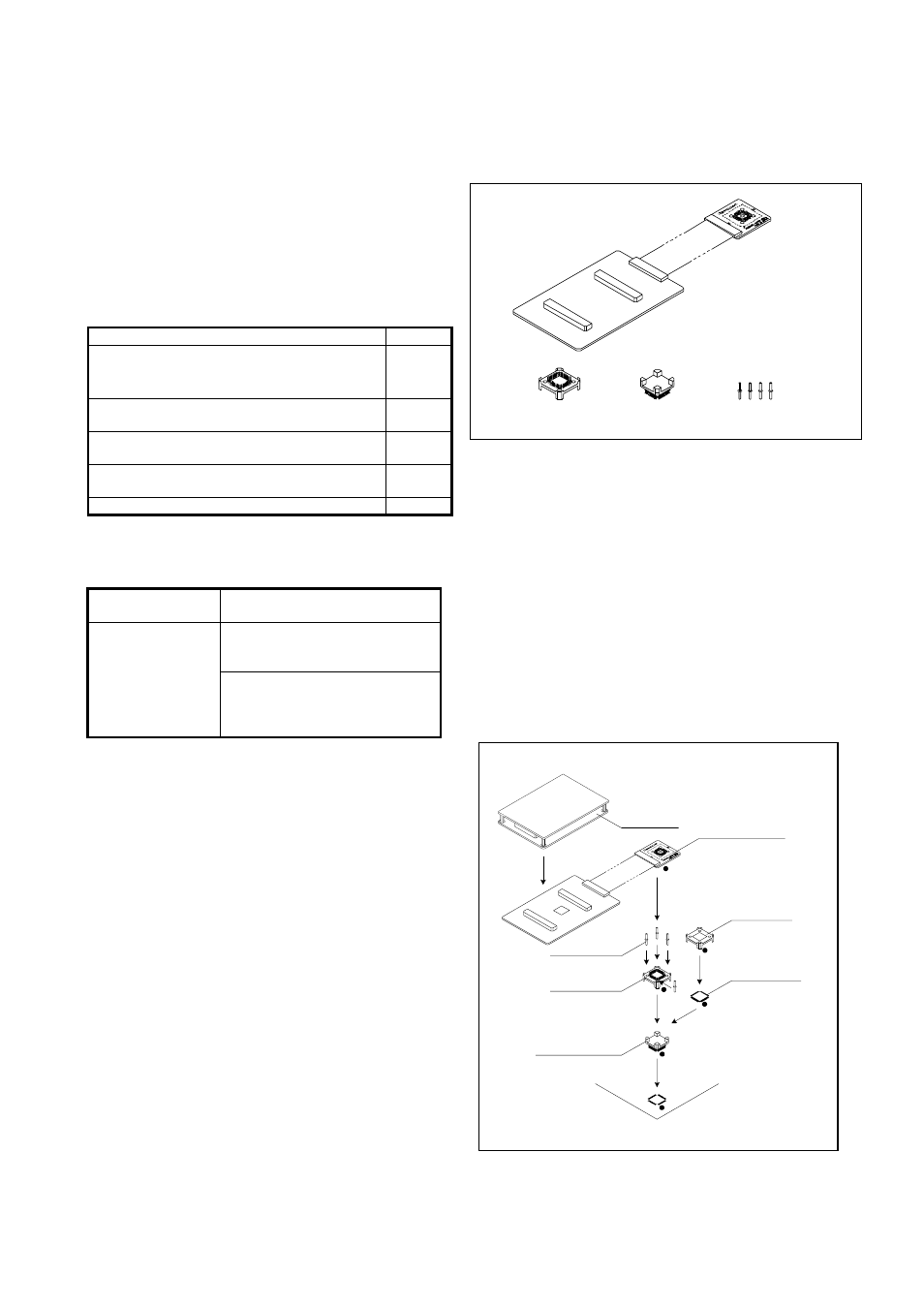

Figure 1 Package components of the R0E5212DACFK00

Figure 2 Usage of the R0E5212DACFK00

●

: No. 1 pin

These products are included with the R0E5212DACFK00 package.

80-pin 0.5mm pitch

(PLQP0080KB-A) foot pattern

YQ-GUIDE (x4) *

YQPACK080SD *

NQPACK080SD-ND *

HQPACK080SD

(Not included)

MCU with on-chip
flash memory etc.

R0E5212DACFK00

(1) Debugging

(2) On-board evaluation

R0E521000EPB00

R0E521000CPE00

(2/4)
