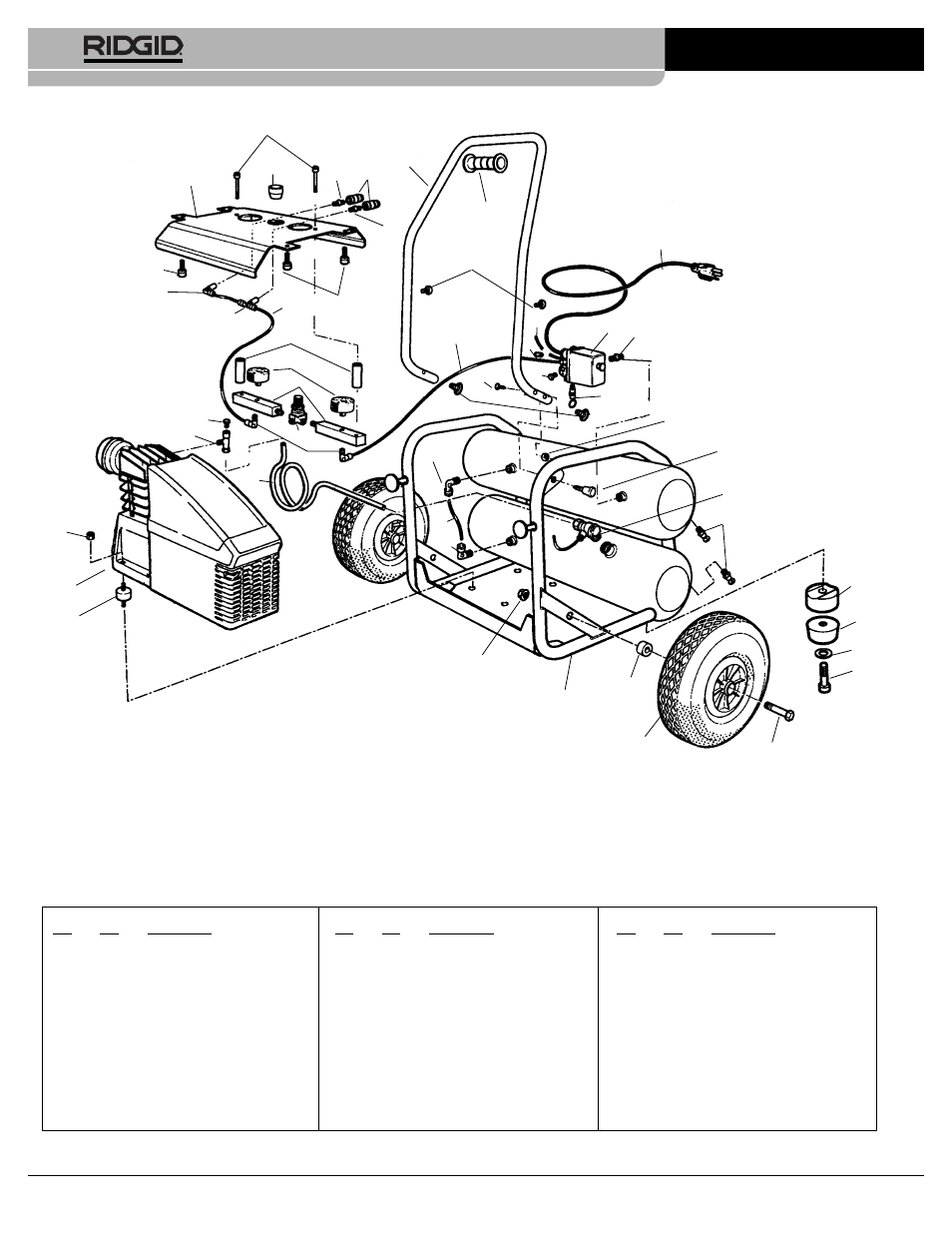

OL50135W Oil Lubricated Air Compressor
Ridge Tool Company/Elyria, Ohio, U.S.A.
Ref.
Catalog
No.
No.
Description
1
23113
Control Panel
2
17503
Screw M6 x 60 (2)
3
17488
Regulator Knob
4
17493
Reducer 3/8" (2)
5
17498
Coupling (2)
6
23108
Handle
7
23018
Hand Grip
8
23058
Screw M6 x 16 (2)
9
23143
Anti Vibration Pad (2)
10
23053
Power Cord
11
17453
Elbow
12
17368
Tube, Outlet
13
23038
Connection T
14
17388
Tube, Discharge
15
23048
Pressure Switch
Ref.
Catalog
No.
No.
Description
16
23023
Screw Double
17
23033
Control Panel Spacer (2)
18
23103
Pressure Gauge (2)
19
17473
Gauge Manifold (2)
20
17468
Regulator
21
17413
Elbow (4)
22
23098
Plug (2)
23
23063
Screw (2)
24
23133
Connector
25
23043
Plug, 1/4"
26
17378
Safety Valve
27
17353
Relief Valve
28
17358
Discharge T
29
23128
Discharge Tube
30
17528
Nut M8 (4)
Ref.
Catalog
No.
No.
Description
31
23153
Pump, Complete
32
17523
Anti Vibration Mount (4)
33
23073
Nut M12 (2)
34
23088
Spacer (2)
35
23093
Piston f/Handle
36
17418
Non-Return Valve
37
23028
Drain Tap (2)
38
23138
Wheel Spacer (2)
39
23118
Wheel (2)
40
23148
Air Tank
41
23123
Wheel Pin (2)
42
23083
Spacer (2)
43
17438
Anti Vibration Pad (2)
44
35055
Washer (2)
45
23078
Screw (2)
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
2
3
1
4
5
10
7
6
9
12
8
4
25
26
22
23
14
15
16
34
35
36
37
17
18
19
8
11
27
28
20
21
29
21
21
12
33
40
38
39
41
42
43
44
45
30
31
32
24
12
13
