4
OPERATION - All mowers
Adjusting the cut height (Continued)
The Rover lawnmower has ten height settings
controlled by the height adjustment lever located at the
rear right hand wheel.
ƒ Grasp the height adjustment lever (1) and pull the
lever away from the base to disengage the lever
from the height adjustment rack (2).
ƒ Move the lever either forwards or backwards to the
desired position and release the lever so as to
engage in the height adjustment rack

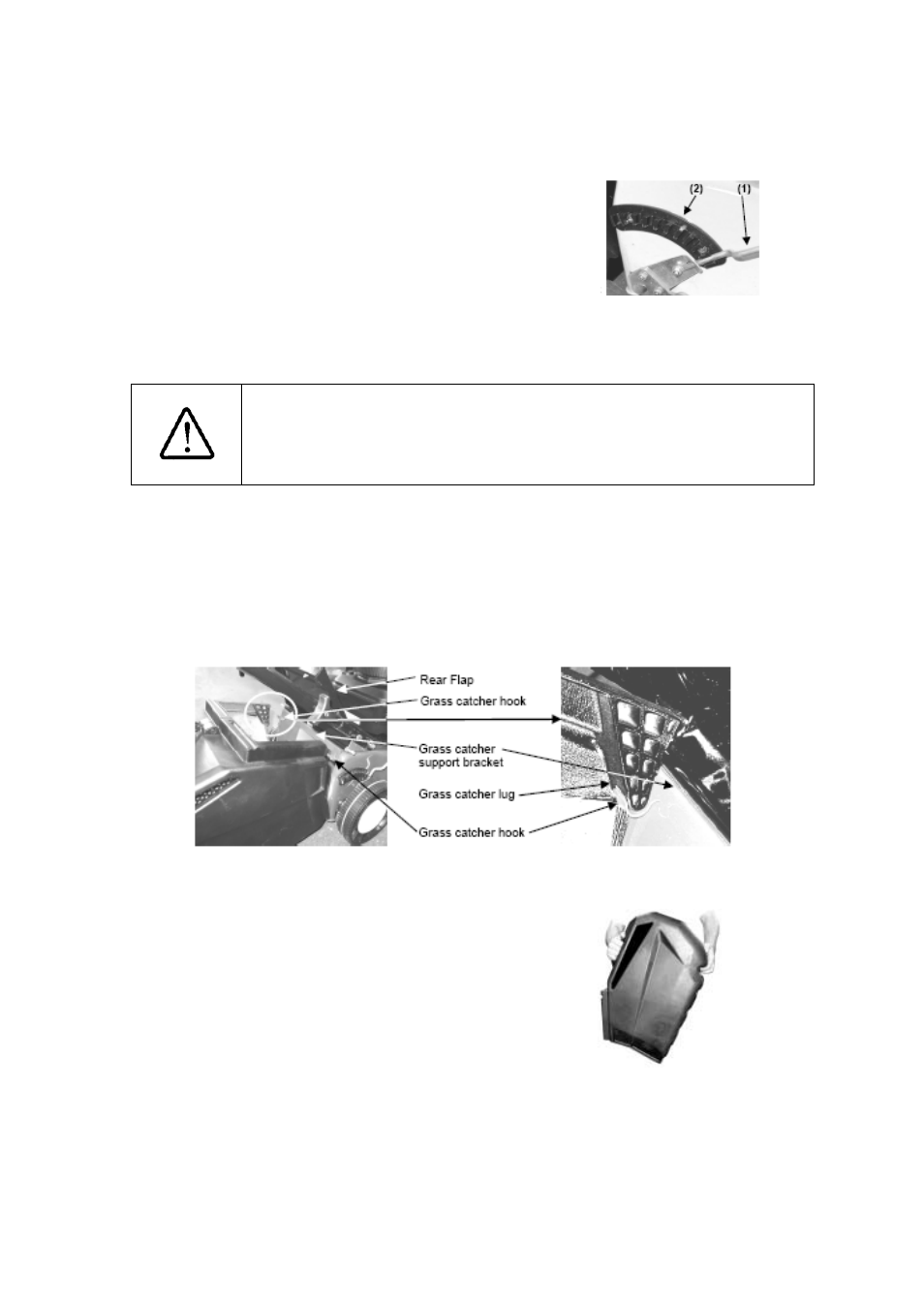

Figure 4.
Height adjustment
Installing the grass catcher– refer figures 5 and 6.
WARNING
The grass catcher should only be fitted or removed when the engine is stopped.
Never raise the rear flap when the engine is running.
ƒ Raise the rear flap of the mower.
ƒ Grasp the grass catcher by the top handle and position the grass catcher against
the rear of the mower. Refer to Figure 5.
ƒ Locate the grass catcher above the grass catcher support bracket. Align the
catcher lugs with the hooks each side and lower the catcher into place. Refer to
Figure 6.
ƒ Lower the rear flap so that the back edge of the rear flap hooks over the matching
lip on the grass catcher.
Figure 5. Grass catcher fitment Figure 6. Support bracket detail
Removing the grass catcher– refer figure 7.
ƒ Raise the rear flap of the mower to release the
grass catcher.
ƒ Lift the grass catcher clear of the mower and lower
the rear flap.
Emptying the grass catcher - refer figure 7
ƒ Remove the grass catcher (as per the instructions
above).
ƒ Tilt the grass catcher with the opening downwards.
ƒ Grip the large channel in the rear bottom of the
grass catcher with the other hand and shake the
clippings out. Refer to figure 7.
Figure 7.
Emptying grass
catcher
