4 Regency ® U38-1 ULTIMATE Freestanding Gas Stove
This is a copy of the label that accompanies
each ULTIMATE Freestanding Gas Stove. We
have printed a copy of the contents here for your
review. The safety label is located on the inside
of the drop down pedestal door. NOTE: Regency ® units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
SAFETY LABEL

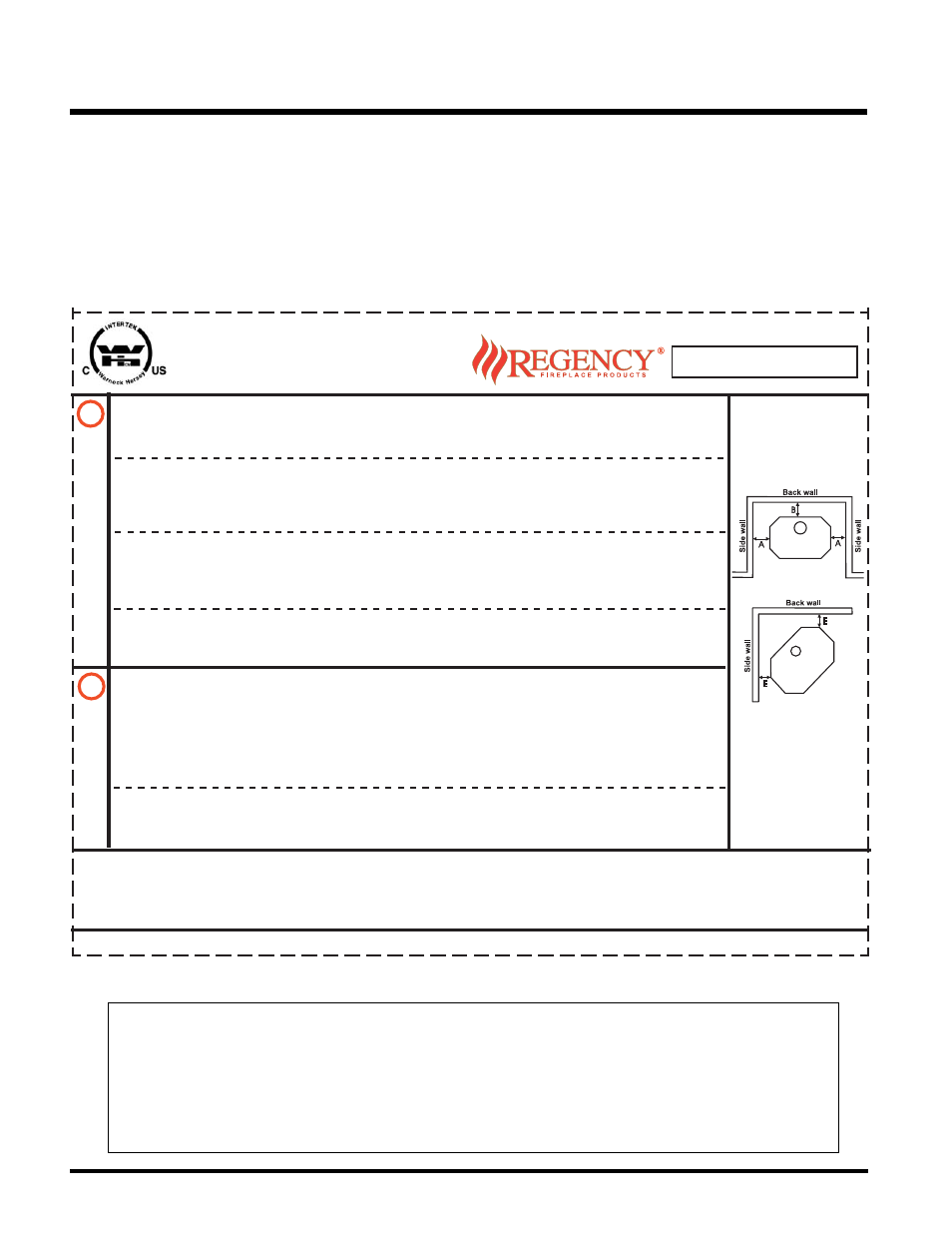

Copy of the Safety Label for the U38-1 Freestanding Gas Stove
Minimum Clearances
to Combustibles
Degagement minimum
des materiaux
combustibles:
314
Serial No./No de serie
DO NOT REMOVE THIS LABEL/NE
PAS ENLEVER CETTE ÉTIQUETTE
Made in CANADA / FABRIQUE AU CANADA FPI Fireplace Products International Ltd., Delta, BC, Canada 918-508
GAS FIRED VENTED ROOM HEATER
This appliance must be installed in accordance with local
codes, if any; If not, follow: ANSI Z223.1/CAN/
CGA-B149 Electrical Supply (115 V, 1.13 A, 60 Hz)
Not for use with solid fuel. POLE R GAZ RADIATEUR VENTILE
Cet appareil doit être installé conformement aux exigences des codes
locaux, s'il n'existe aucun code local, se conformer à la norme: ANSI
Z223.1 / CAN 1-B149 en vigueur. Alimentation électrique. Ne doit pas
être utilisé avec un combustible solide.
A 7-1/2" /190mm
B 6"
/155mm
E 2" /50mm
Min. Ceiling Height
from top of unit / Min.
Plafond Hauteur en
haut de l'appareil:
36" / 914 mm
FACTORY EQUIPPED FOR NATURAL GAS: Model U38-NG1
Minimum supply pressure 5" WC/C.E. (1.25kPa)
Manifold pressure High 3.8" WC/C.E. (0.94kPa)
Manifold pressure Low 1.1" WC/C.E. (0.27kPa)
Model U38-NG: Factory Equipped for Altitude 0-2000 ft.
Orifi ce size
#31 DMS
Altitude 0-2000 ft/pi (0-610)
Maximum Input 40,000 Btu/h (11.73Kwh)
Minimum Input 21,000 Btu/h (6.15Kwh)
Model U38-NG: Convertible for Altitude 2000-4500 ft.
Orifi ce size
#33 DMS
Altitude 2000-4500ft/pi (610-1370m)
Maximum Input 36,000 Btu/h (10.55Kw)
Minimum Input 19,000 Btu/h (5.57Kwh)
Model U38-NG: Convertible to 30,000 Btu for Altitude 0-4500 ft.
Orifi ce size
#37 DMS
Maximum Input 30,000 Btu/h (8.78Kwh)
Minimum Input 15,000 Btu/h (4.39Kwh)
FACTORY EQUIPPED FOR PROPANE GAS: Model U38-LP1
Minimum supply pressure 12" WC/C.E. (3.00Kpa)
Manifold pressure High 11" WC/C.E. (2.74Kpa)
Manifold pressure Low 2.9" WC/C.E. (0.72Kpa)
Orifi ce size 50 DMS
Altitude 0-2,000 ft/pi (0-610m)
Maximum Input 38,000 BTU/h (11.14Kw/h)
Minimum Input 20,000 BTU/h (5.86Kw/h)
Model U38-LP: Convertible to 30,000 Btu for Altitude 0-4500 ft.
Orifi ce size
#52 DMS
Maximum Input 30,000 Btu/h (8.78Kwh)
Minimum Input 15,000 Btu/h (4.39Kwh)
ÉQUIPÉ À L'UISINE POUR GAZ NATUREL:
Pression d’alimentation minimum
Pression tubulure d’échappement élevée
Pression tubulure d’échappement basse
Dimensions de l’orifi ce
L'altitude
Débit calorifi que maximum selon
Débit calorifi que minimum selon
Transforme en haute l'altitude Gaz Naturel:
Dimensions de l’orifi ce
L'altitude
Débit calorifi que maximum selon
Débit calorifi que minimum selon
Dimensions de l’orifi ce
Débit calorifi que maximum selon
Débit calorifi que minimum selon
ÉQUIPÉ À L'UISINE POUR GAZ PROPANE:
Pression d’alimentation minimum
Pression tubulure d’échappement élevée
Pression tubulure d’échappement basse
Dimensions de l’orifi ce
L’altitude
Débit calorifi que maximum selon
Débit calorifi que minimum selon
Dimensions de l’orifi ce
Débit calorifi que maximum selon
Débit calorifi que minimum selon
Listed: GAS FIRED VENTED ROOM HEATER
Tested to: CAN/CGA 2.17-M91, ANSI Z21.88b-2003/
CSA
2.33b-2003
Certifi ed for/Certifi ée pour: CANADA and USA
Report No. 476-1846-00 (Oct. 2000)
Model/Modele: U38-NG1
Model/Modele: U38-LP1
For the State of Massachusetts, installation and repair must be done by a plumber or gasfi tter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, fl exible connectors shall not exceed 36 inches in length.
For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.
The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA 720 and a CO alarm
with battery back up in the same room where the gas appliance is installed.
