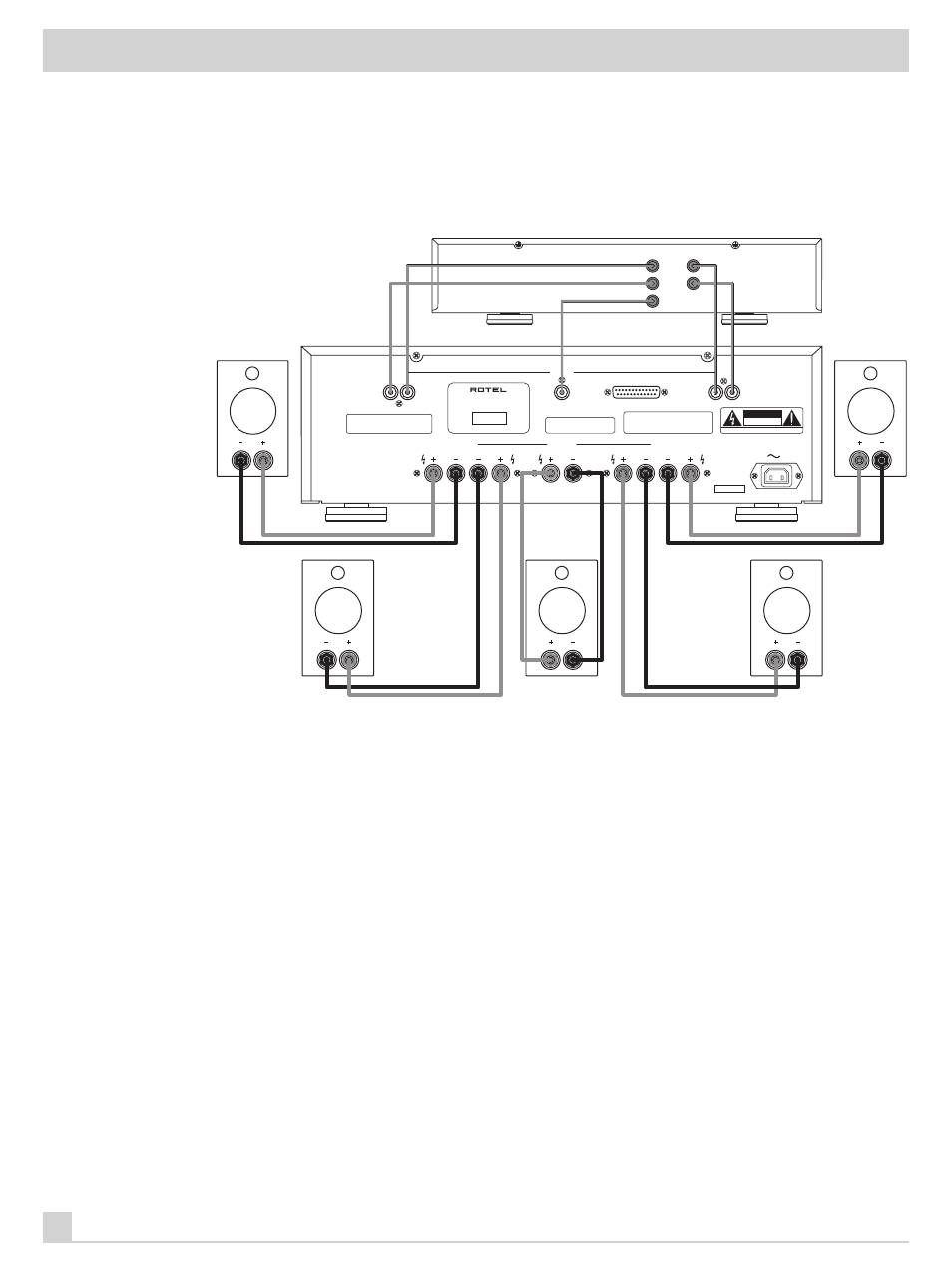

Figure 2: Preamp Input and Speaker Output Connections
Prises d’entrée du préamplificateur et prises de sortie des enceintes
Anschlußdiagramm (Cinch-Eingänge und Lautsprecher)
Collegamenti di ingresso dal preamplificatore e delle uscite dei diffusori.
Conexiones de la Señal de Entrada y Salidas a las Cajas Acústicas
OUTPUTS
R L
FRONT
SURROUND
CENTER
SURROUND
Manufactured under license from
Lucasfilm Ltd. Lucasfilm and THX are
registered trademarks of Lucasfilm Ltd.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS: RISQUE DE CHOC ELECTRIQUE–NE PAS OUVRIR
RIGHT
RIGHT
FRONT
POWER AMPLIFIER
MODEL NO. RB-985MKII
POWER CONSUMPTION: 800W
SPEAKER IMPEDANCE
4 OHMS MINIMUM
SERIAL NO.
SURROUND
LEFT
FRONT
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRICAL SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE.
SPEAKERS
CENTER
SURROUND FRONT
INPUT
CENTER LEFT
SURROUND FRONT DB25 INPUT
ROTEL RB-985 MKII
PREAMPLIFIER OR SIGNAL PROCESSOR
RIGHT SURROUND
RIGHT FRONT CENTER
LEFT SURROUND
LEFT FRONT
