Troubleshooting
60
5
E

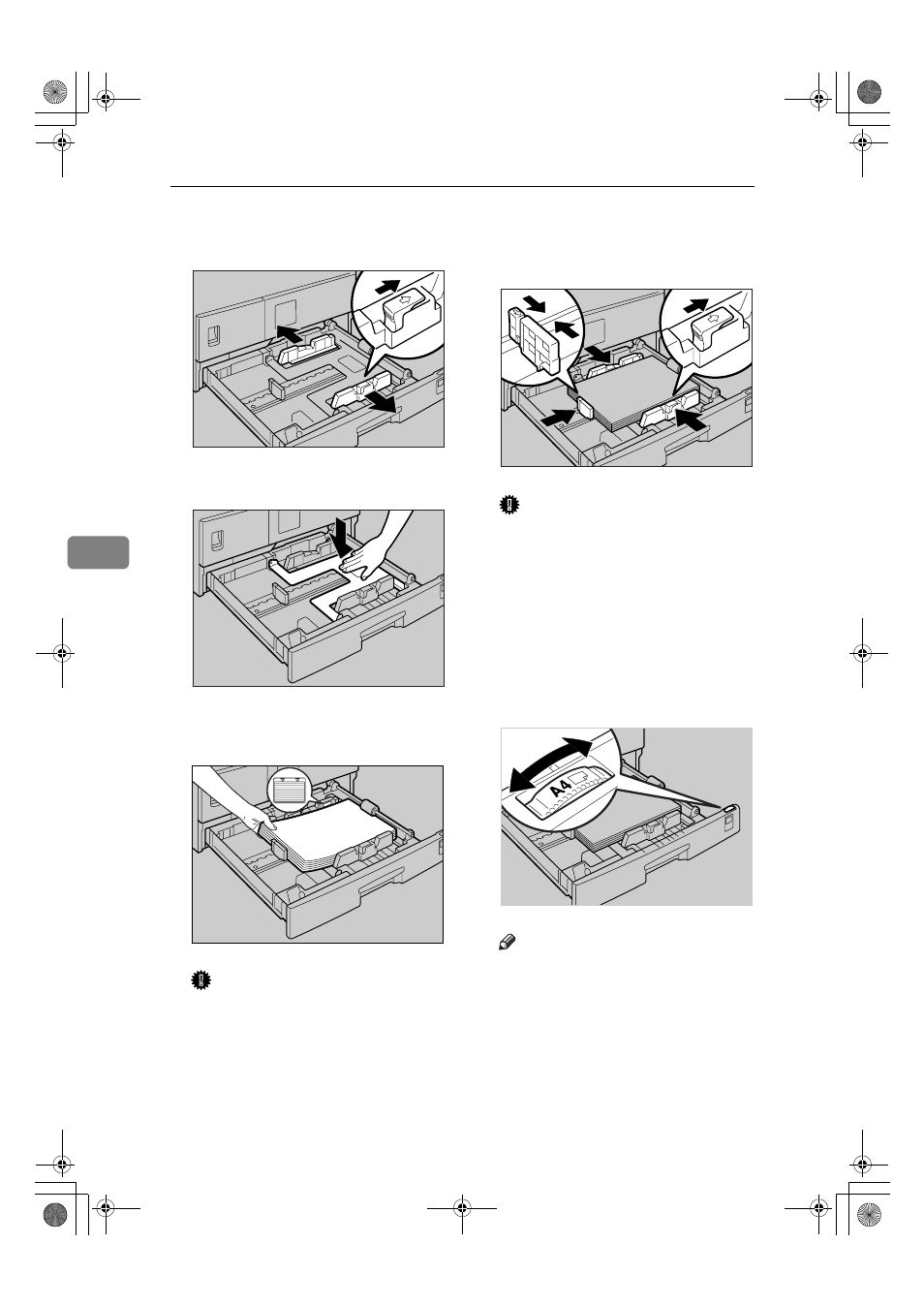

While pressing the release lever,
adjust the side fences.
F
Push the metal plate down.
G
Square the paper and set it in the
tray.
Important
❒ Be sure to set the paper under
the roller.
❒ Do not stack paper over the lim-
it mark.
H
While pressing the release lever,
adjust the side and back fences to
the new paper size.
Important
❒ When setting small quantities of
copy paper, be careful not to
squeeze in the side fence too
much or paper will not feed in
properly.
I
Press down the lock button.
J
Adjust the tray size to the new pa-
per size using the paper size se-
lector.
Note
❒ Be sure to set the correct size,
otherwise a paper jam might oc-
cur.
K
Push the paper tray in until it
stops.
APH012S
APH013S
APH009S
APH014S
APH015S
