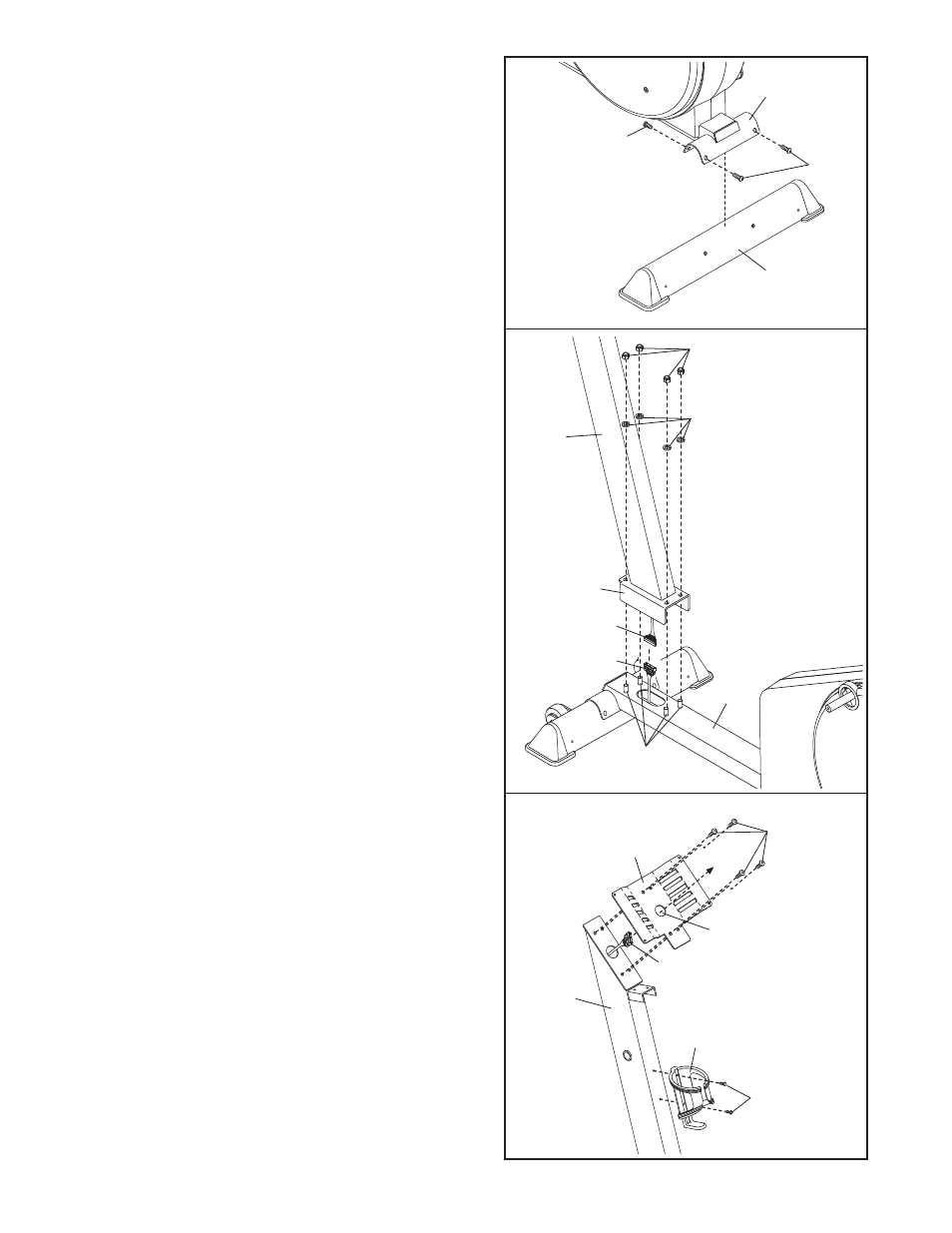

2. Attach the Rear Stabilizer (24) to the rear of the

Frame (1) with four M8 x 25mm Patch Screws (73).

3. Remove the four M10 Nylon Locknuts (85) and the

four M10 Split Washers (103) from the welded bolts

near the front of the Frame (1).

While a second person holds the Upright (2), con-

nect the Upper Wire Harness (15) to the Lower Wire

Harness (39).

Align the holes in the bracket on the lower end of the

Upright (2) with the welded bolts on the Frame (1).

Lower the Upright, feeding the Upper Wire

Harness (15) and the Lower Wire Harness (39) up

into the Upright, until the welded bolts are fully

inserted into the bracket. Be careful to avoid

pinching and damaging the Wire Harnesses.

Tighten the four M10 Nylon Locknuts (85) and the

four M10 Split Washers (103) onto the welded bolts

on the Frame (1).

4. Feed the Upper Wire Harness (15) up through the

indicated hole in the Console Bracket (3). Attach the

Console Bracket to the Upright (2) with four M8 x

19mm Patch Screws (81). Be careful to avoid

pinching and damaging the Upper Wire Harness.

Attach the Water Bottle Holder (13) to the Upright (2)

with two M4 x 19mm Screws (92). Note: The water

bottle holder is designed to be used with your own

water bottle.

Bracket

Be careful to

avoid pinching

and damaging the

Wire Harnesses

(15, 39) during

this step.

Welded

Bolts

Hole

103
