Place all parts of the elliptical exerciser in a cleared area and remove the packing materials. Do not dispose of
the packing materials until assembly is completed.
In addition to the included tools, assembly requires an adjustable wrench and a rubber
mallet .

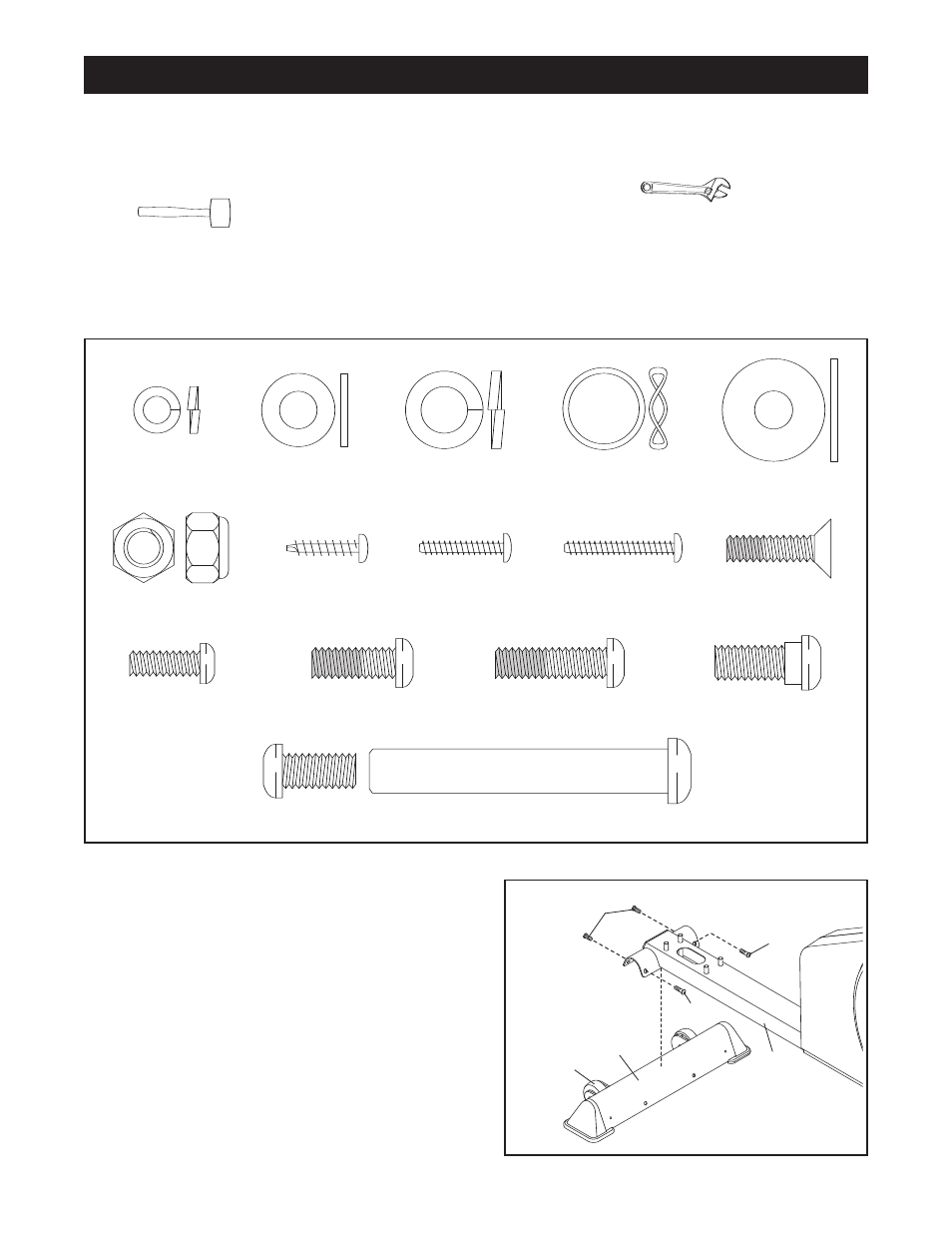

Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the PART LIST on page 25. The second number refers
to the quantity used in assembly. Note: Some small parts may have been pre-assembled for shipping. If a
part is not in the parts bag, check to see if it has been pre-assembled.
A
SSEMBLY
M6 x 20mm Patch
Screw (75)–4
Large M8
Washer (70)–2
Small M8
Washer (71)–2
M4 x 25mm
Screw (96)–2
M4 x 16mm
Screw (82)—6
M4 x 19mm
Screw (92)–2
M6 Split Washer
(72)–2
M6 x 16mm Button
Screw (93)–2
Bolt Set (67)–2
M10 Nylon
Locknut (85)–4
M8 x 19mm Patch
Screw (81)–4
M8 x 25mm Patch
Screw (73)–10
M8 x 19mm Shoulder
Screw (102)–2
M10 Split
Washer (103)–4
Wave Washer
(101)–2
1. Identify the Front Stabilizer (63), which has Wheels
(27) attached to one side. Attach the Front Stabilizer
to the front of the Frame (1) with four M8 x 25mm
Patch Screws (73).
1
27
63
73
73
73
