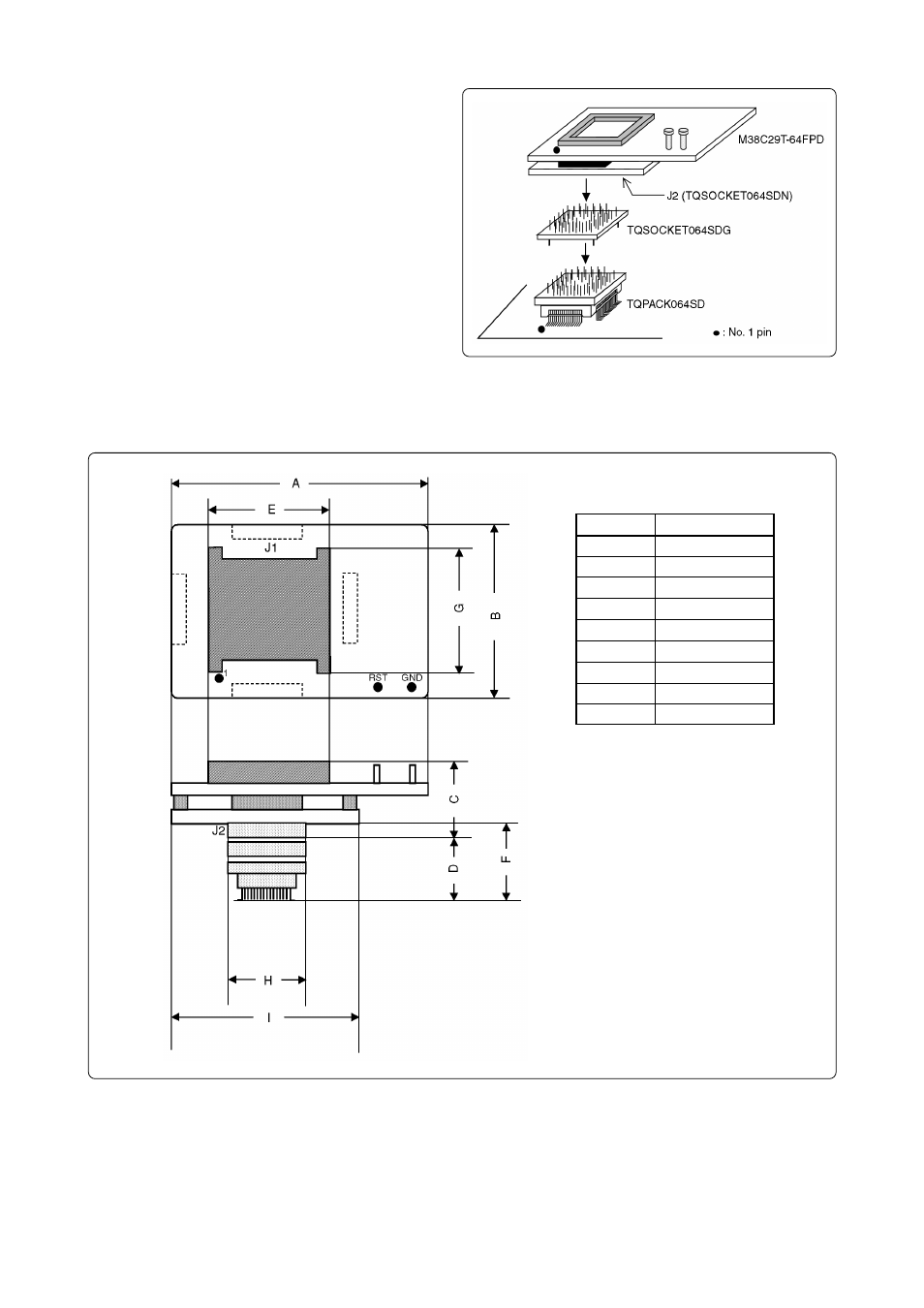

Figure 4 Connecting to the target system
4.2 Connecting to Target System
Connect the M38C29T-64FPD to the target system as fol-
lows.
(1) Mount the TQPACK064SD on the target system.
(2) Attach the TQSOCKET064SDG to the TQPACK064SD.
(3) Attach the J2 (TQSOCKET064SDN) of the M38C29T-
64FPD to the TQSOCKET064SDG.
5. External Dimensions of the M38C29T-64FPD
Figure 5 External dimensions of the M38C29T-64FPD
Symbol
A
B
C
D
E
F
G
H
I
Dimension [mm]
55.0
42.0
11.5
10.8
26.7
14.0
23.6
16.0
42.0
