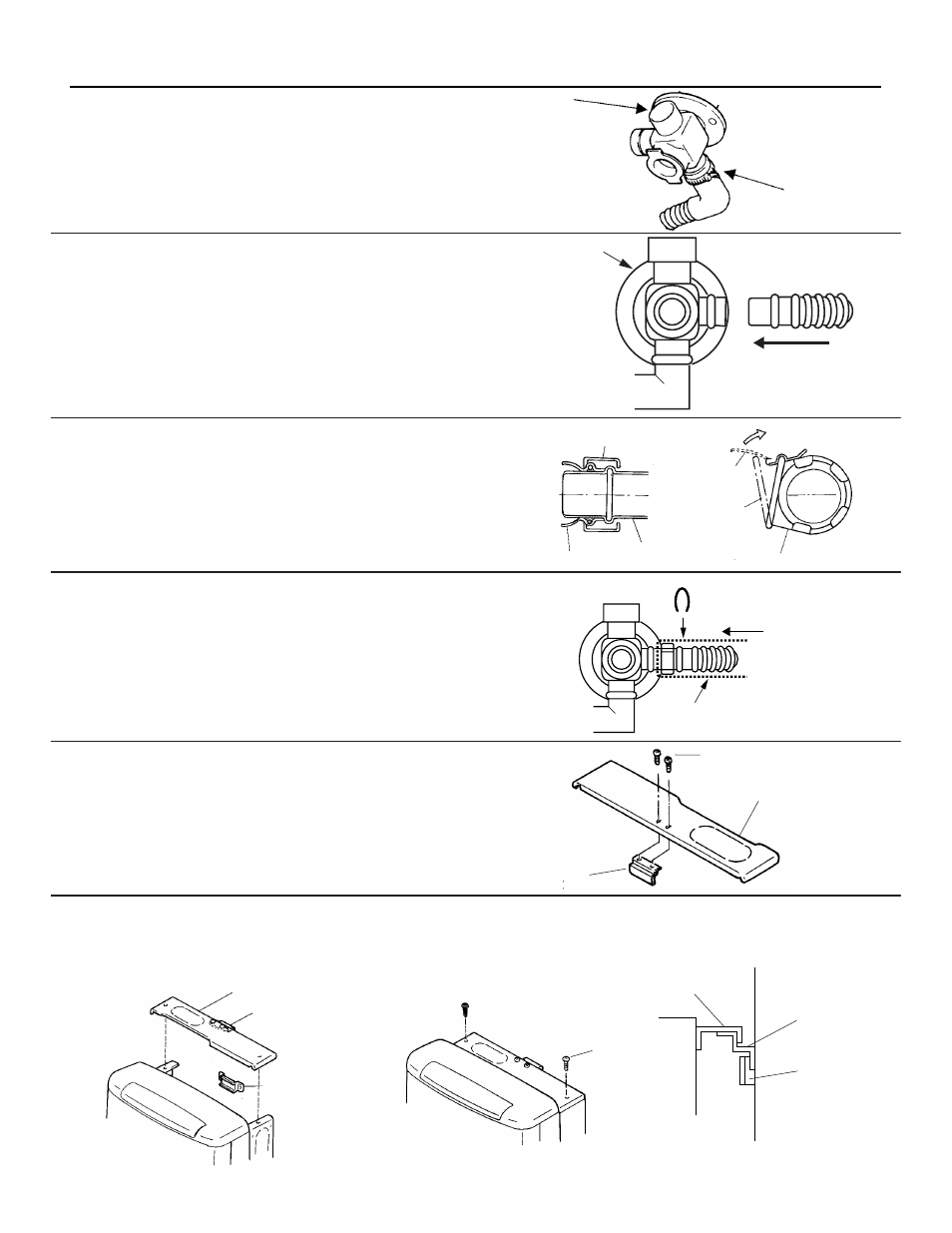

Connecting the Appliance
1. Attach the air inlet hose to the flue manifold on
either inlet position “a” or “b”.
The unused inlet is plugged with the rubber cap
supplied on the manifold.
2. Connect the flue elbow to the manifold while
moving the appliance into position.
3. Fit the pipe stopper over the connection between
the flue elbow and the manifold. Engage the
hook and rotate it until it snaps against the body
of the clamp.
4. Slide the insulation sleeve up to the flue manifold
and slip the securing clip over the sleeve as
shown.
5. Install the bracket on the rear of the top spacer by
tightening 2 screws.
6. Install the wall bracket with two screws. Install
the top spacer by clipping the spacer into the wall
brackets and attaching it to the heater with 2
screws.
a
b
Flue Manifold
Pipe stopper
Elbow
Manifold
Hook
Pipe stopper
Fit Clip
Slide
Sock
Screw
Top spacer
Spacer bracket
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
;;;
Spacer
Spacer bracket
Wall bracket
Top spacer
Spacer bracket
Wall bracket
Screw
