WARNING: To reduce the risk of electric
shock and injury from moving parts, unplug
vacuum before cleaning or servicing.

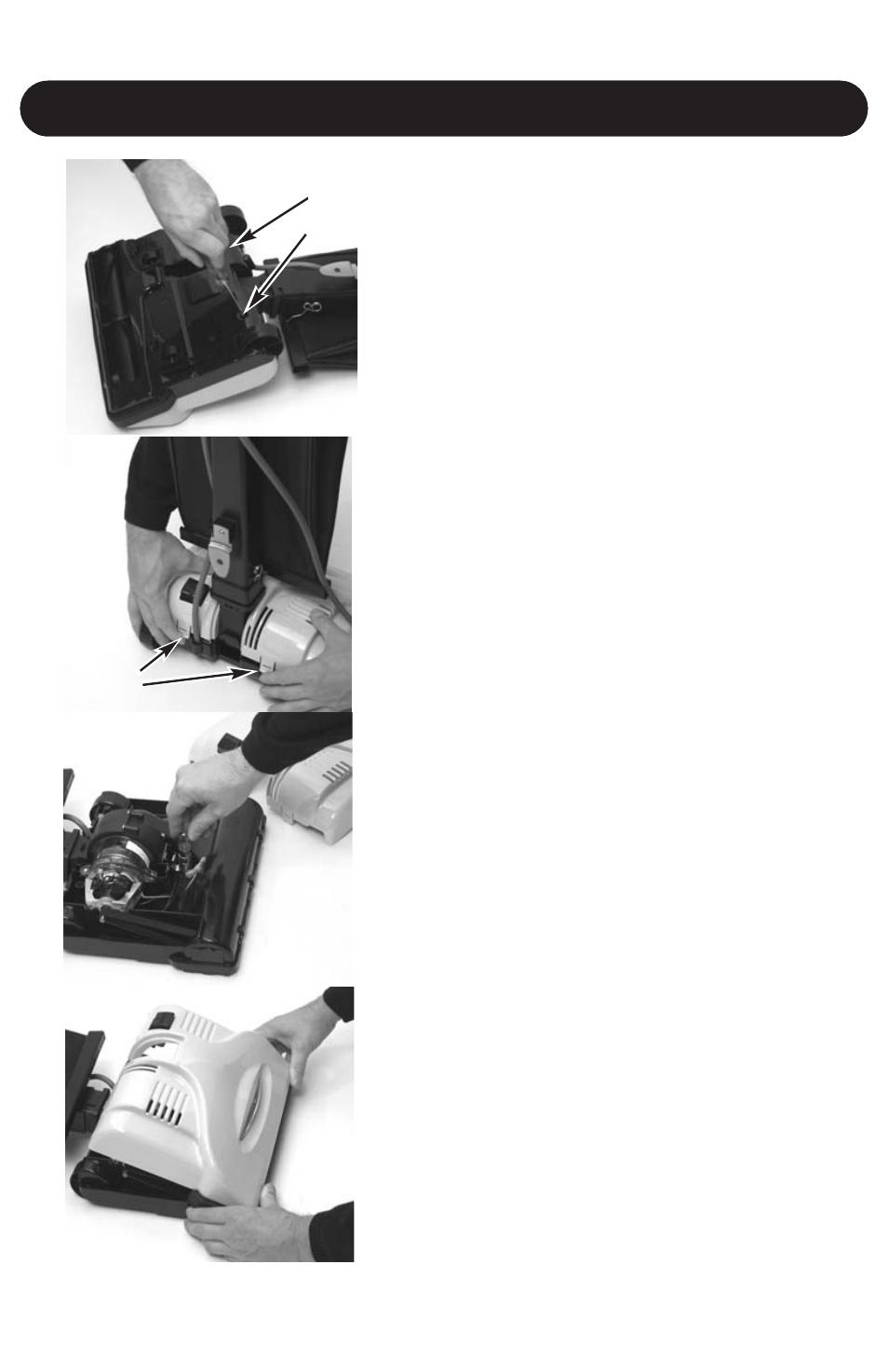

1. First remove the nozzle housing.
Turn the unit over to expose the
underside. Locate the two main
nozzle screws (diagram 16) and
remove both. Turn the unit right
side up. Locate the two nozzle
tabs on the back of the unit (dia-
gram 17) and unlatch the nozzle
housing. (Note: It is easier to
remove the nozzle when the vacu-
um is lying flat on its back - see
diagram 19). Lift the nozzle hous-
ing off the unit to expose the light
bulb.
2. Remove bulb by pulling it
straight out of the light socket
(diagram 18).
3. To install new bulb, simply re-
inser t the bulb into the light
socket.
4. Place nozzle housing back onto
unit with the front side of the
nozzle set into place first (diagram
19) then set the nozzle downward
until nozzle “clicks” into place on
both sides. Turn unit over and rein-
sert main nozzle screws.
10
H
OW TO
R
EPLACE THE
H
EADLIGHT
B
ULB
Nozzle
Tabs
16
17
18
19
Nozzle
screws
