Option B: HDMI audio adapter connection method

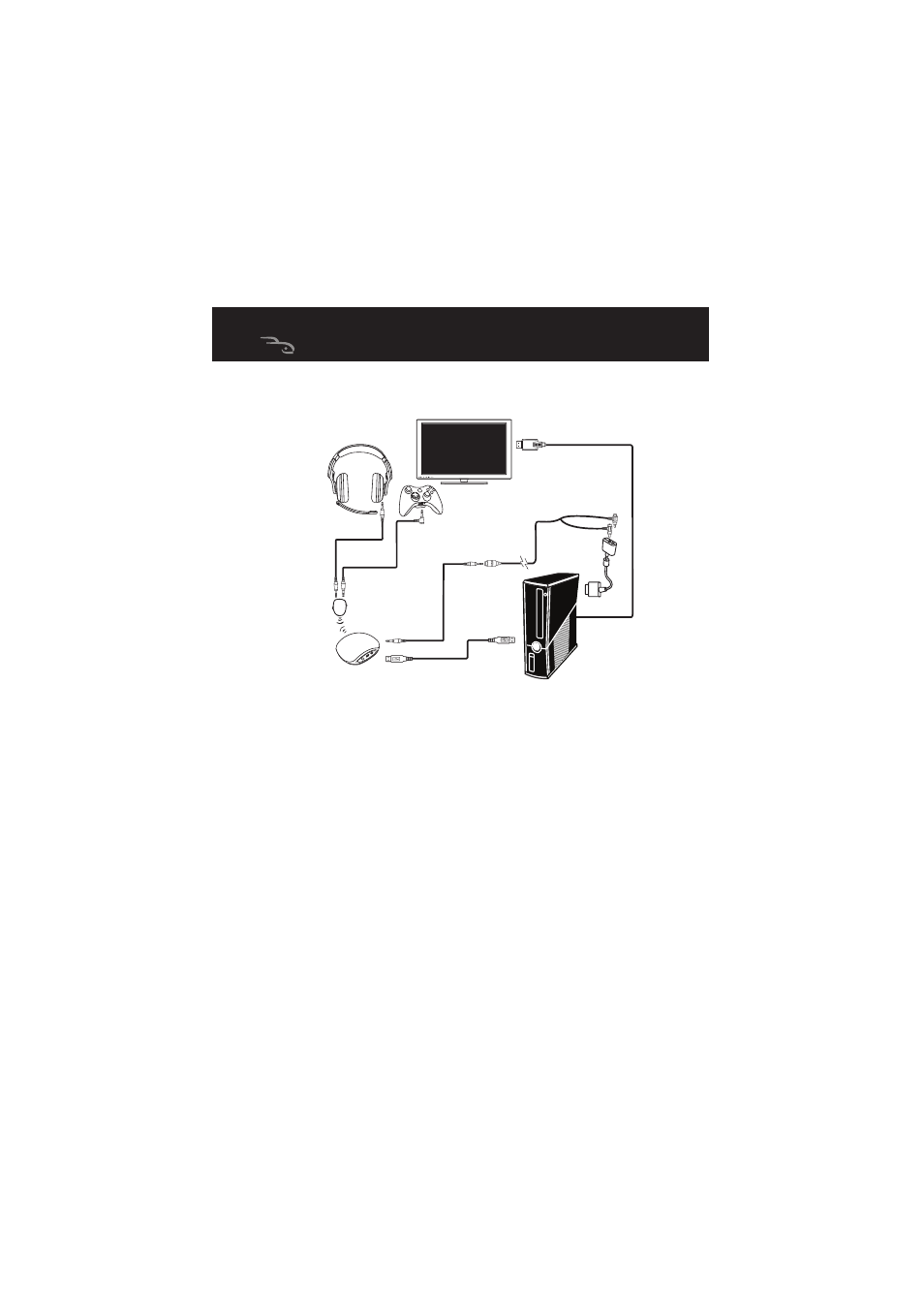

Make the connections shown in the following illustration.
4 Press the POWER button on the wireless transmitter, then
press the POWER button on the wireless receiver. When the
transmitter and the receiver are connected, the indicator
ring around the power button on the receiver lights solid
blue.
Your headset is ready to use.
SOURCE
MUTE
Black 3.5mm
cable
2.5mm Xbox chat
cable
Green 3.5mm
cable
USB cable
RCA piggyback to
3.5mm audio cable
Xbox 360 HDMI
audio adapter
(sold separately)
X
b
o
x
360 HDMI cab
le
Wireless receiver
Wireless transmitter
