2 Choose your connection method.
If you want to connect the audio using a headphone jack on
a TV, monitor, or receiver, complete the instructions in
“Option A: Headphone jack connection method.”
If you want to connect the audio using an HDMI audio
adapter (sold separately), complete the instructions in
“Option B: HDMI audio adapter connection method” on the
next page.
Option A: Headphone jack connection method

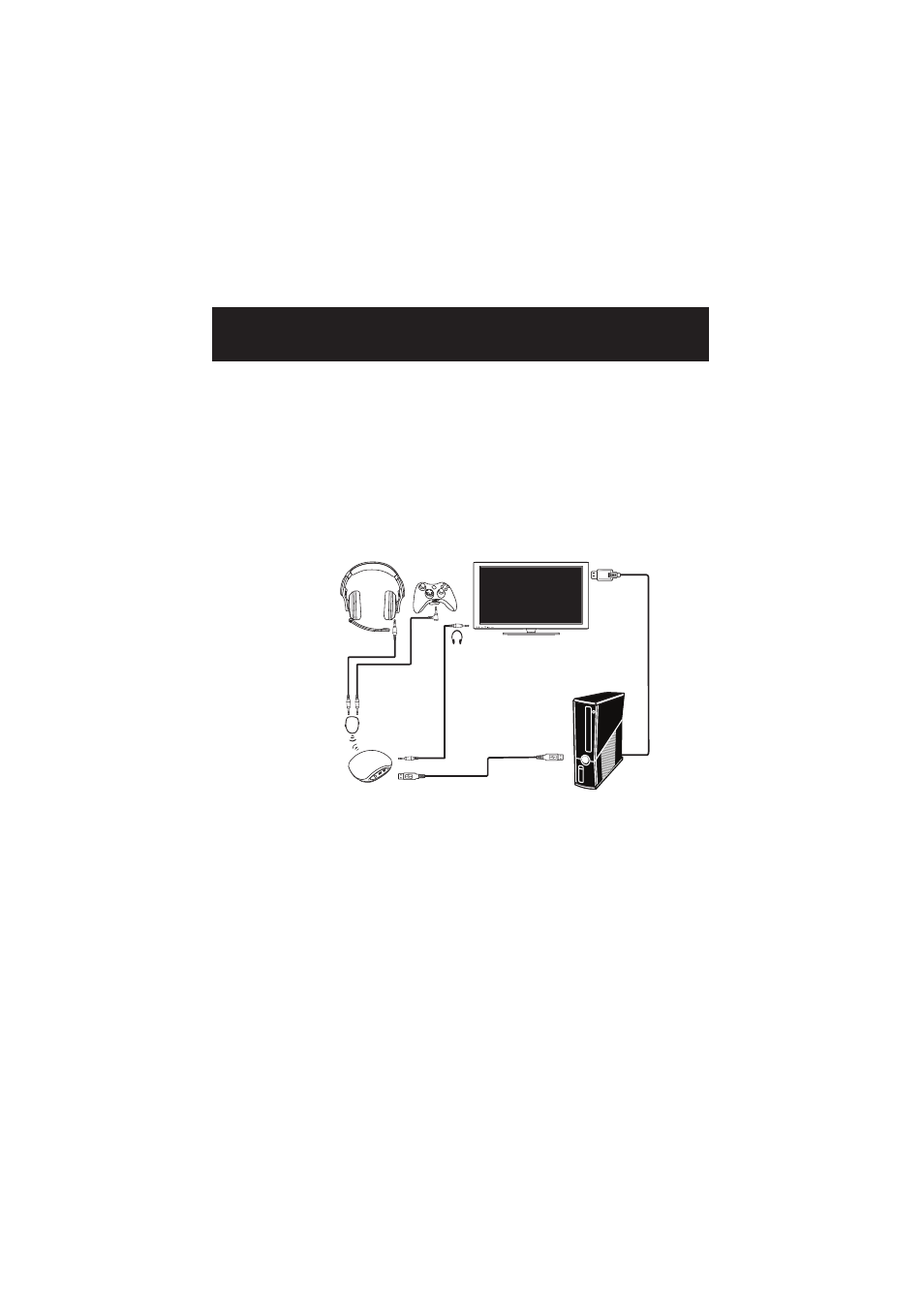

3 Make the connections shown in the following illustration.
Go to Step 4.
MUTE
SOURCE
Black 3.5mm
cable
2.5mm Xbox 360
chat cable
Green
3.5mm cable
USB cable
X
b
o
x HD
M
I cabl
e
Wireless receiver
Wireless transmitter
