Option B: AV cable connection method
Step 3 (continued)

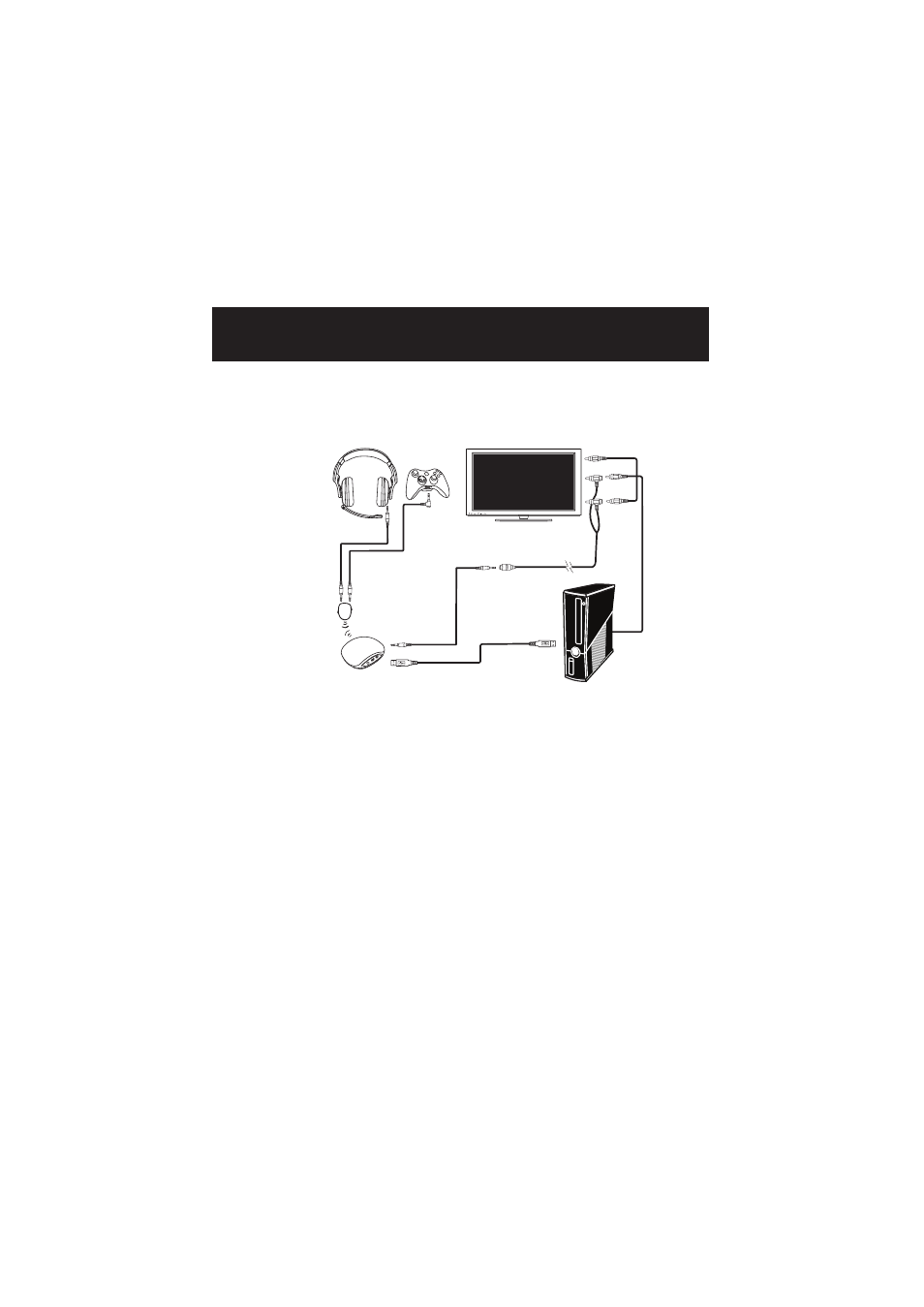

Make the connections shown in the following illustration.
4 Press the POWER button on the wireless transmitter, then
press the POWER button on the wireless receiver. When the
transmitter is connected to the receiver, the LED indicator on
the transmitter lights solid blue.
Your headset is ready to use.
MUTE
SOURCE
2.5mm Xbox
chat cable
RCA piggyback to
3.5mm audio cable
X
b
o
x
360 A
V
cable
Black 3.5mm
cable
USB cable
Green 3.5mm
cable
Red
White
Wireless receiver
Wireless transmitter
