4 recommended dimensions for user system mount pad – Renesas FP-64E User Manual
Page 22
11
2.4
Recommended Dimensions for User System Mount Pad
Figure 6 shows the recommended dimensions for the mount pad (footprint) for the user system
with an IC socket for an FP-64E package (IC149-064-075-B51: manufactured by YAMAICHI
ELECTRONICS Co., Ltd.). Note that the dimensions in figure 6 are somewhat different from
those of the actual chip's mount pad.

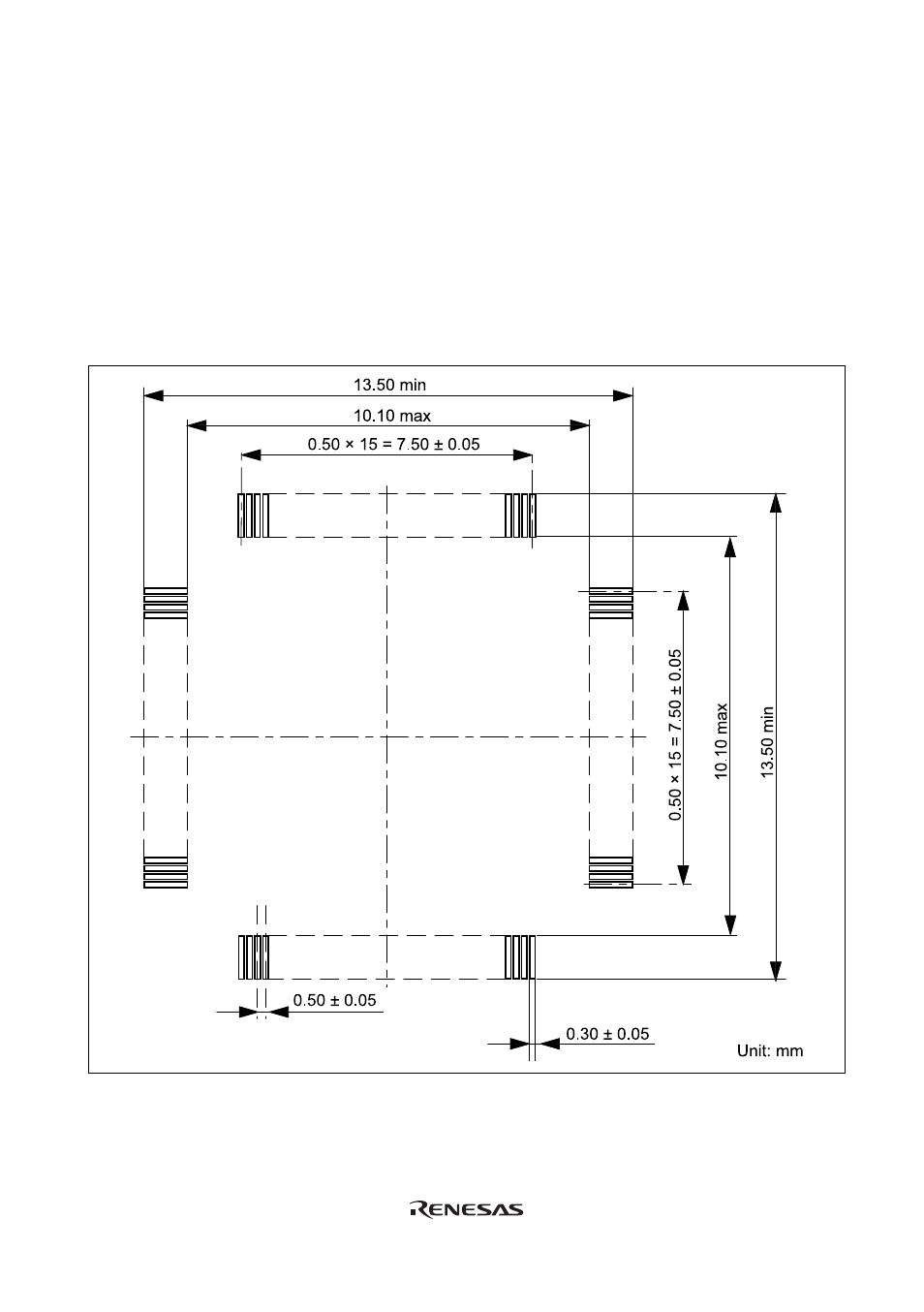

Figure 6 Recommended Dimensions for Mount Pad
