Table 3 Setting a Switch (SW1)
Switch Setting
SW1
No. PRQP0100JE-B
(Former Code:
FP-100AV)
Socket Pin No.
Signal Name
On
Off
1 54 PA9/_WAIT/TCLKD/TXD2 Mask canceled Mask enabled
2 17 PE10/_CS0/TIOC3C Mask canceled Mask enabled
3 82 PB1/_BREQ/TIC5W Mask canceled Mask enabled
4 7 PE16/_WAIT/TIOC3BS Mask canceled Mask enabled
5 6 PE17/_CS0/TIOC3DS Mask canceled Mask enabled
6 5 PE18/_CS1/TIOC4AS Mask canceled Mask enabled

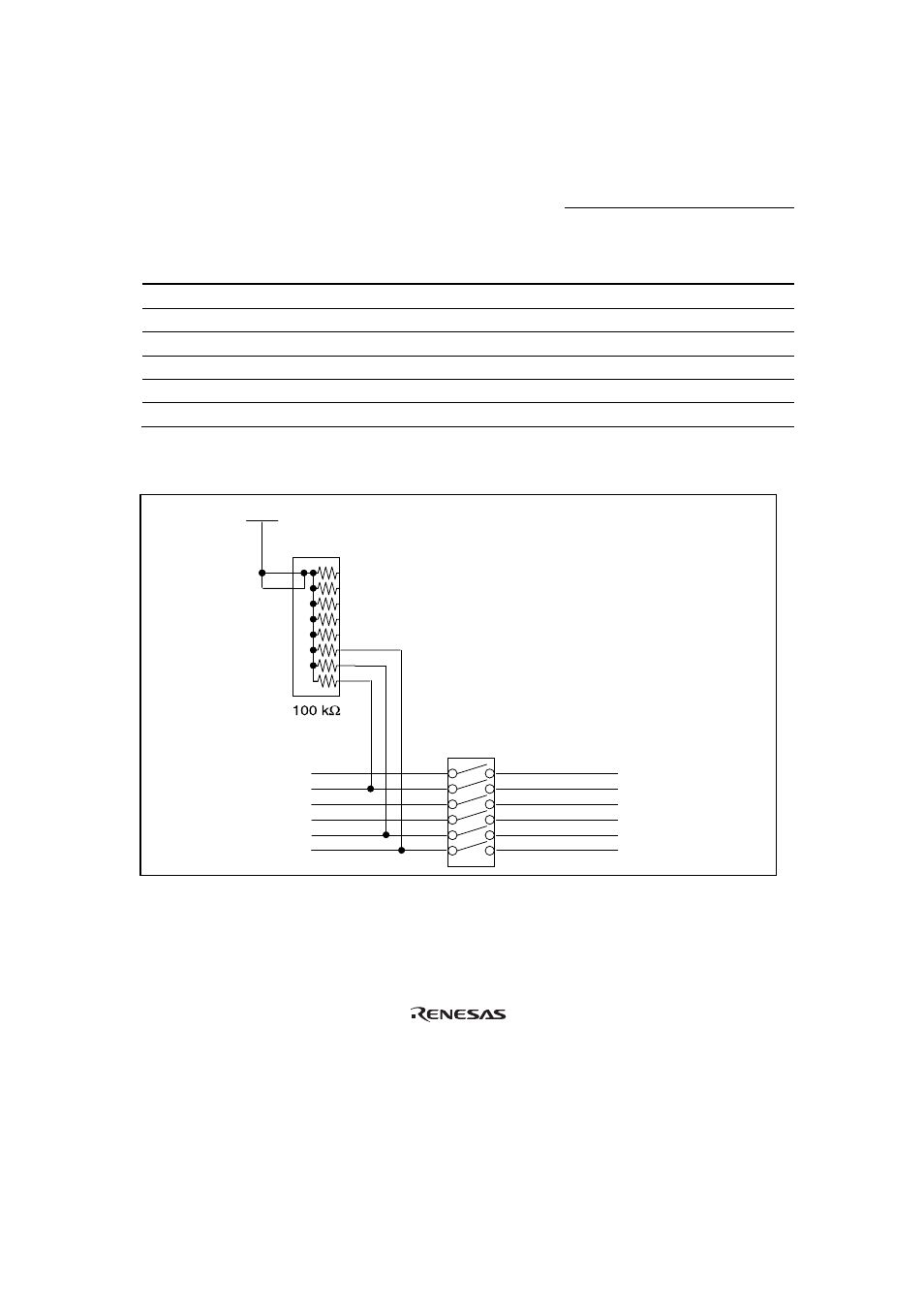

Figure 3 shows a circuit for masking signals on the user system interface board.
UVCC
PE16
PE10
PB1
PA9
SW1
User system Emulator
PE17_C
PE16_C
PE10_C
PB1_C
PA9_C
PE17
PE18 PE18_C
Figure 3 Circuit for Masking Signals
Note: The UVcc is the Vcc in the user system.
