3.4 Connecting the Target System
There are three ways available to connect the emulation pod to target systems as shown in Figure 3.5.

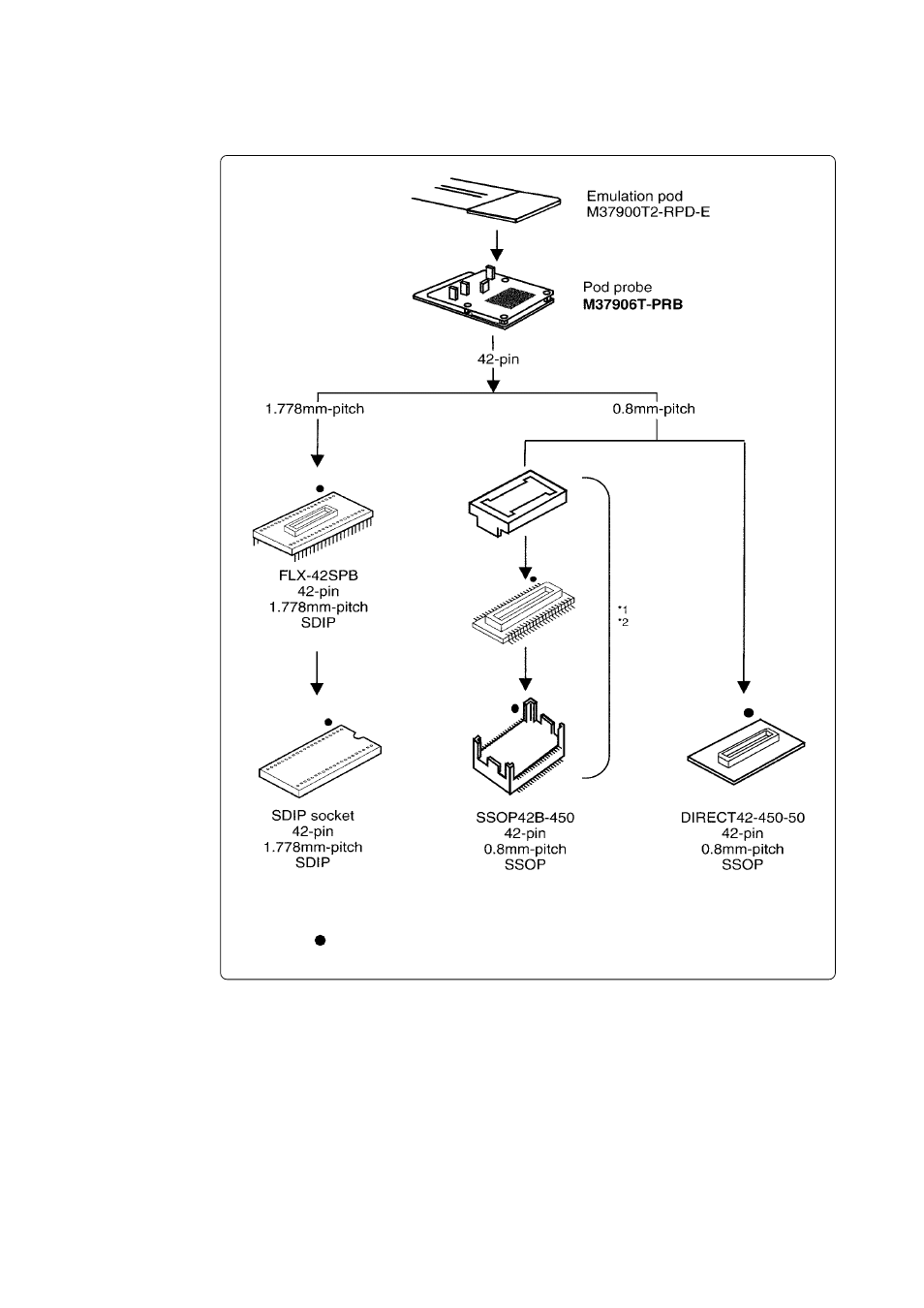

Figure 3.5 Connecting the target system
*1 : These three products are available in a single package.
*2 : This converter board is included in this pod probe package.
: position of No. 1 pin
