5
CONNECTING TO YOUR RECEIVER/AMPLIFIER
1. Using one of the supplied audio cables, connect the
cassette deck’s
L
and
R LINE OUTPUT
jacks to the
receiver/amplifier’s left and right tape input jacks.
2. Using the other audio cable, connect the cassette deck’s
LINE INPUT
jacks to the receiver/amplifier’s tape
output jacks.
Note: If you are not sure which receiver/amplifier jacks to
use, refer to your receiver/amplifier’s owner’s manual.
CONNECTING THE REMOTE CONTROL CABLE
If you have an RCA receiver/amplifier that has a remote
control jack (labeled
CONTROL IN/OUT
), you can use the
receiver/amplifier’s remote control to operate the cassette
deck.
Connect the receiver/amplifier’s
CONTROL OUT
jack to
the cassette deck’s
CONTROL IN
jack using the supplied
remote control cable.
If you have another RCA audio component that has a
remote control jack, connect the cassette deck’s
CONTROL OUT
jack to the component’s
CONTROL IN
jack. This relays the remote control signal from the
receiver/amplifier to the other component.
CONNECTING THE CD-DECK SYNCHRO
CONTROL CABLE
If you have a CD player that has a
CD-DECK SYNCHRO
control jack, connect the jack to your cassette deck’s
CD-
DECK SYNCHRO
control jack using the supplied CD-
deck synchro control cable. This connection lets you
easily make CD-to-cassette deck recordings. See “CD-Deck
Synchro Recording” on Page 12.
CONNECTING POWER
Carefully check all connections. Then plug the AC power
cord into a standard AC outlet. The power cord’s plug is
polarized and fits only one way. The cassette deck
automatically turns on.
Warning: To prevent electric shock, do not plug the
power cord into an extension cord or other receptacle
unless you can fully and easily insert the plug’s blades.

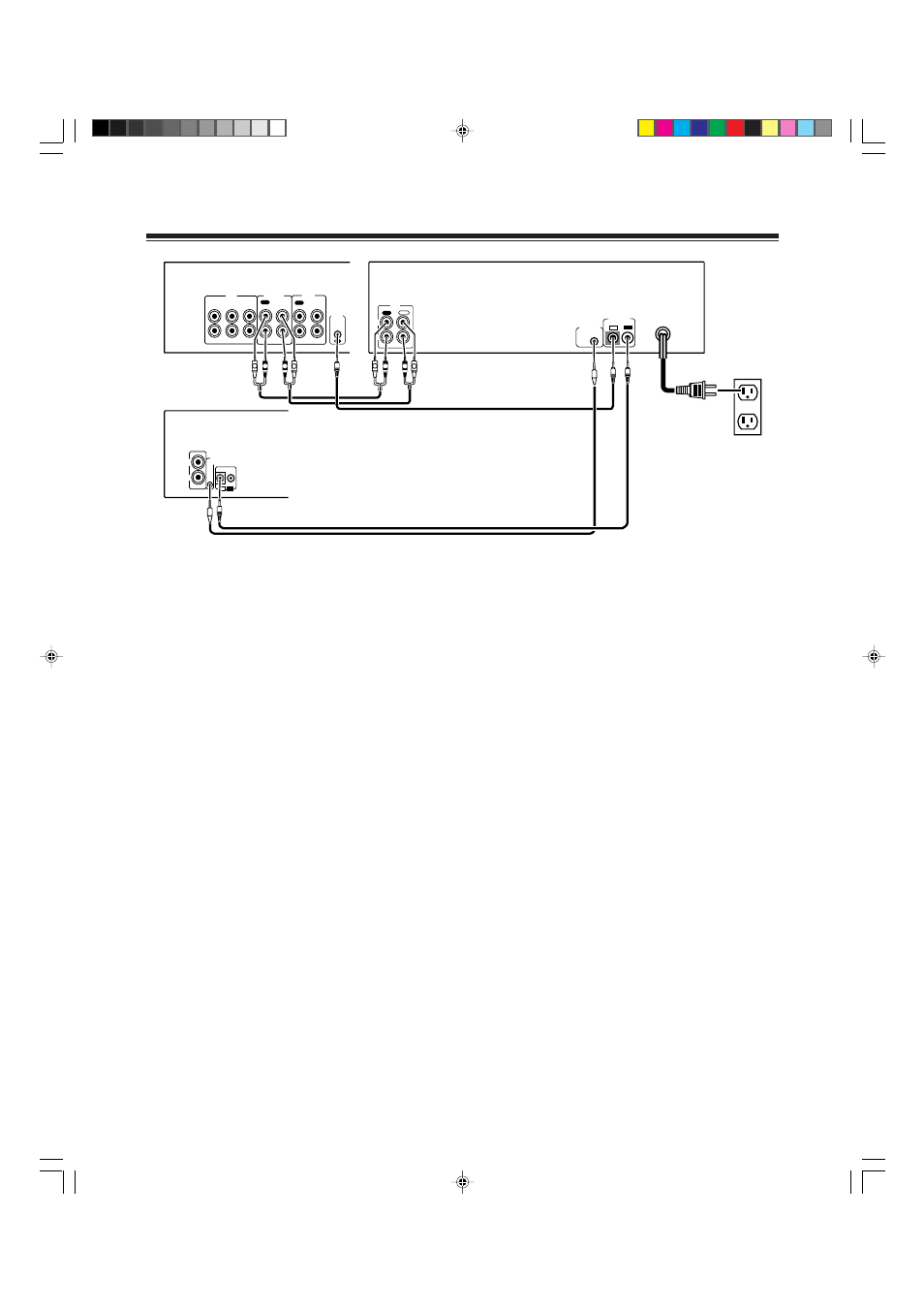

CONNECTIONS
TAPE 2
L
R
__
L
R
L
R
L
R
PHONO
CD
VCR/
LD
INPUT
TAPE/DCC
PLAY
REC
PLAY
REC
L
R
LINE
CONTROL
OUT
R
L
INPUT OUTPUT
PLAY
REC
R
L
CONTROL
CD¥DECK
SYNCHRO
OUT
IN
CD•DECK
SYNCHRO
CONTROL
IN
OUT
L
R
LINE OUT
R
L
R
L
Receiver/Amplifier
CD Player
SCT-560
