INSTALLATION
MOUNTING THE PHONE
You can place the TAD-794’s base on a
desk or table, mount it on a standard
wall plate, or mount it directly on a wall.
Choose a location that is:
• near an AC outlet
• near a modular telephone line jack
• out of the way of normal activities
• away from electrical machinery,
electrical appliances, metal walls or
filing cabinets, wireless intercoms,
alarms, and room monitors
• away from other cordless phones
The base’s location affects the phone’s
range. If you have a choice of several lo-
cations, try each to see which provides
the best performance.
Caution: The supplied RadioShack
adapter was designed specifically for
your TAD-794. Use only the supplied
adapter.
Notes:
• Your telephone connects directly to
a modular telephone line jack. If
your phone line jack is not a modu-
lar jack, you can update the wiring
yourself, using jacks and adapters
available at your local RadioShack
store. Or, you can let the phone
company update the wiring for you.
• The USOC number of the jack to be
installed is RJ11C (RJ11W for a wall
plate).

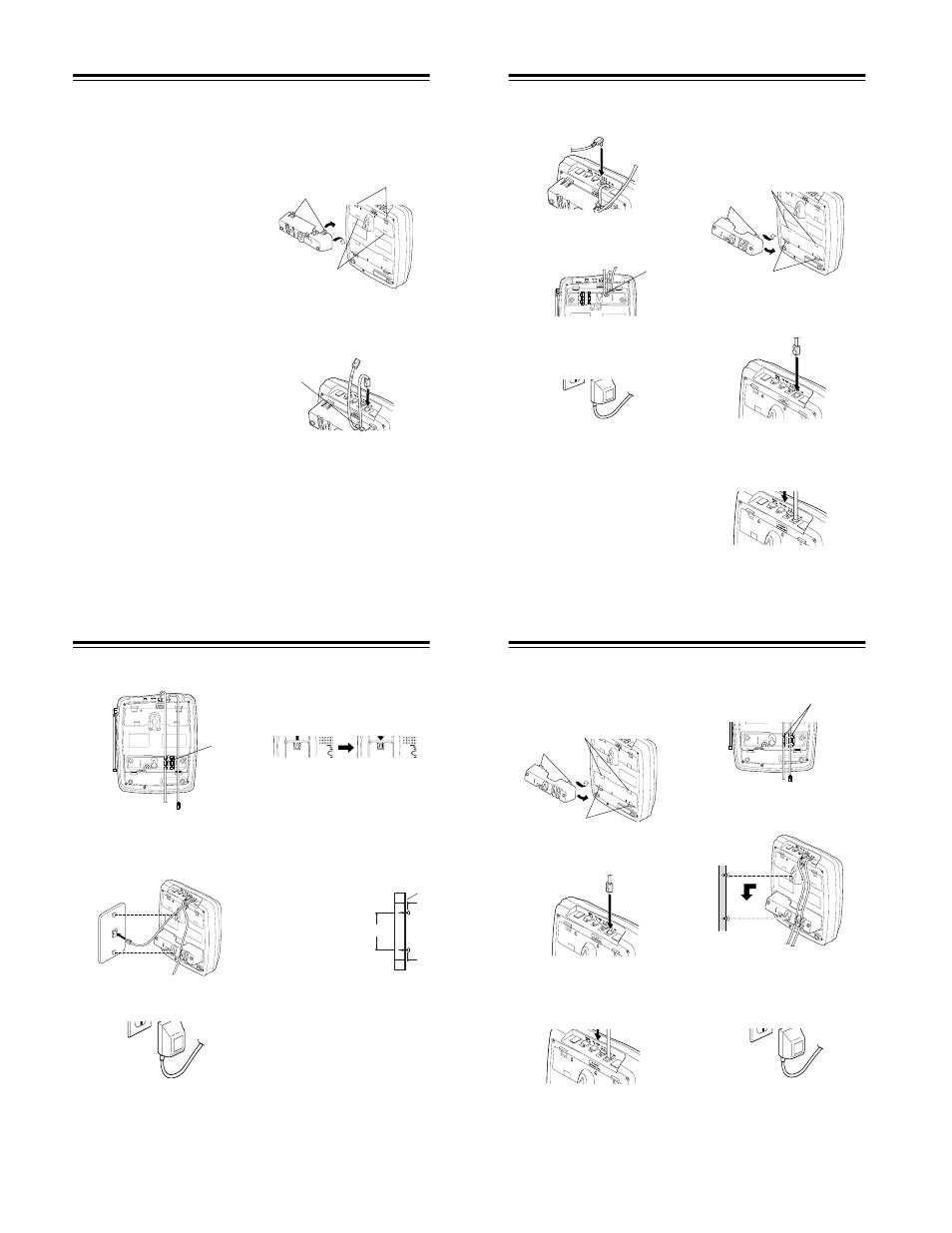

On a Desk Top
1. Insert the bracket’s tabs into the
base’s upper tab slots as shown,
then press down on the bracket’s
clips and insert them into the upper
clip slots.
2. Route the supplied long modular
cord through the strain relief slot on
the side of the bracket, then plug the
cord into the
TEL LINE jack on the
back of the base.
3. Plug the modular cord’s other end
into a modular telephone line jack.
Clips
Upper
Upper Tab Slots
Clip Slots
Strain
Relief
Slot
9
4. Insert the supplied AC adapter’s
barrel plug into the DC IN 9V jack on
the back of the base.
5. Route the adapter’s cord through
the strain relief slot on the bottom of
the bracket.
6. Plug the adapter into a standard AC
outlet.
7. Lift the base’s antenna to a vertical
position.
On a Wall Plate
1. Insert the bracket’s tabs into the
base’s lower tab slots as shown,
then press down on the bracket’s
clips and insert them into the lower
clip slots.
2. Plug one end of the supplied short
modular cord into the TEL LINE jack
on the back of the base.
3. Insert the supplied AC adapter’s
barrel plug into the DC IN 9V jack.
Strain
Relief
Slot
Tabs
Lower
Lower Clip Slots
Tab Slots
10
4. Route the adapter cord through the
narrow groove on the bracket.
5. Plug the modular cord’s other end
into the wall plate jack, then align
the bracket’s keyhole slots with the
wall plate studs and slide the base
downward to secure it.
6. Plug the adapter into a standard AC
outlet.
7. Press and lift out the handset hold-
er, flip it over as shown, then snap it
back into place so it holds the hand-
set.
8. Lift the base’s antenna to a vertical
position.
Directly on the Wall
For this mounting method, you need two
screws (not supplied) with heads that fit
into the keyhole slots on the bottom of
the base.
1. Drill two holes 3 15 / 16
inches (100 mm)
apart. Then thread a
screw into each hole,
letting the heads ex-
tend about
5 / 16 inch (8
mm) from the wall.
Narrow
Groove
5 / 16 "
3 15 / 16 "
11
2. Insert the bracket’s tabs into the
base’s lower tab slots as shown,
then press down on the bracket’s
clips and insert them into the lower
clip slots.
3. Plug one end of the supplied long
modular cord into the TEL LINE jack
on the back of the base.
4. Insert the supplied AC adapter’s
barrel plug into the DC IN 9V jack.
5. Route the modular and adapter’s
cords through the grooves on the
bracket as shown.
6. Align the bracket’s keyhole slots
with the mounting screws and slide
the base downward to secure it.
7. Plug the modular cord’s other end
into a modular telephone line jack.
8. Plug the adapter into a standard AC
outlet.
Tabs
Lower
Lower Clip Slots
Tab Slots
Grooves
