3 Installing Your EM1
A. Getting Started
• Locate the desired placement of components to
ensure a proper fit. Make sure the monitor has
enough room for desired movement.
Warning:
Excessive moisture and condensation will
damage unit. Be sure your chosen location for
the interface box and monitor are in a clean dry
area.
• Ensure there is a wall plug within 4’ of desired
Tuner module location before mounting any
components.
• The Tuner module should be mounted on a flat
solid surface. Do not mount on an uneven
surface. Doing so will cause damage to the unit.
B. Mounting of Components

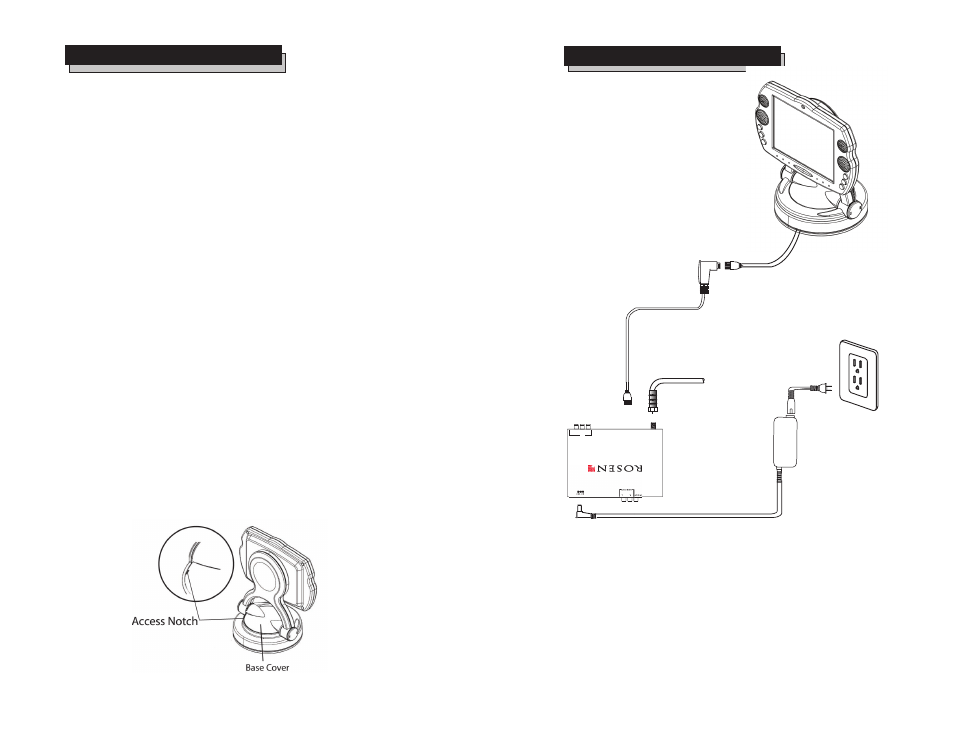

Table Top or Under Counter Mount
• Use a 1/8” standard flat screw driver to remove
the base cover using the access notch shown
below. Be careful not to scar or damage cover.
Page 9
3 Installing Your EM1
Coaxial input Cable
AC power Adapter A
EM-1 FPD
15 ft. Interface Cable
EM-1 Tuner Module 9306-0131-000
EXTERNAL ANT . IN IR OU T MO NITO R AV1
L R VIDEO
* Interface Cable Notice:
Use the cable labeled with “Internal Speakers” to
activate the Em-1 internal speakers
or
Use the cable labeled with “External Speakers” to
deactivate the Em-1 internal speakers. This sce-
nario would be used if external speakers were
added to your EM-1 system.
*
