R0E001000PKZ00 User’s Manual
5. Connection Procedure (See Figure 3)
REJ10J1896-0200 Rev.2.00 Page 2 of 4
Apr 16, 2010
The procedure for connecting the R0E001000PKZ00 is shown
below.
(1) Mount the NQPACKxxxxx on the user system.
(2) Attach the YQPACKxxxxx on the NQPACKxxxxx.
(3) Secure the four corners of the YQPACKxxxxx with the
YQ-GUIDEs.
● Do NOT use the screws included with the
YQPACKxxxxx for fixing the YQPACKxxxxx.
● Do NOT use the screwdriver included with the
NQPACKxxxxx for fixing the YQ-GUIDEs. That is
used only for the HQPACKxxxxx.
(4) Mount the pitch converter board for PC7501 on the
YQPACKxxxxx.
(5) Attach the R0E001000PKZ00 on the pitch converter board
for PC7501
(6) Connect the flexible cable R0E001000FLX10 of the
emulator to the R0E001000PKZ00.
Foot pattern
YQPACKxxxxxx
NQPACKxxxxxx
YQ-GUIDE (×4)
: No.1 pin
Be sure to align the pins.
(1)
(2)
(3)
(4)
(6)
Use a slotted screwdriver.
Flexible cable
R0E001000FLX10
R0E001000PKZ00
(5)
Pitch converter board for PC7501
M3T-F160-xxxxxx

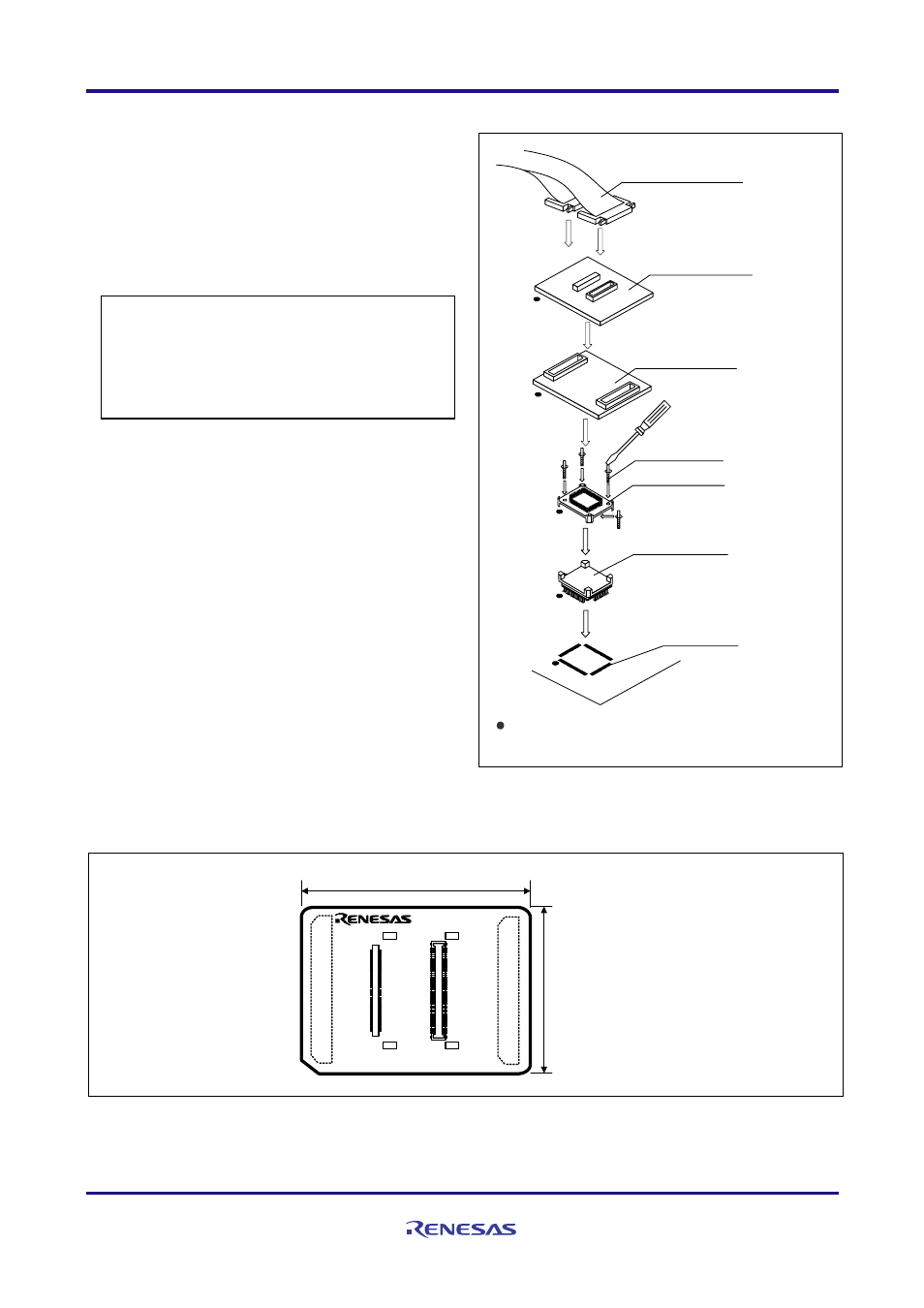

Figure 3 Connection procedure of the R0E001000PKZ00
6. External Dimensions
R0E001000PKZ00
REV.A
CN1
1
50 51
100
CN2
1
50 51
100
MADE IN JAPAN
40
.00
55.00
40a 40
b
1a 1b
CN3
40
a
40
b
1a 1b
CN4
Unit: mm
Figure 4 External dimensions of the R0E001000PKZ00
