For TVs that support it, HDMI can provide
the best quality audio and video output
(depending on media source), and so is the
preferred connection type. The HDMI cable
incorporates both audio and video signals, so
you will have just one cable running from the
unit to your TV.
Using an HDMI cable (not included), connect
the HDMI OUT jack on your unit to the HDMI
IN jack on your TV or HDMI-compatible
display.
• Set the output resolution (using the HDMI
button on the remote control) to match the
maximum resolution of your TV.
• When using HDMI connection to HDMI TV,
please set the DIGITAL AUDIO under Audio
Setup menu to be PCM (STEREO).
• Press the HDMI button on the remote control
to change output signals as below:
480P (progressive)
720P (progressive)
1080i (interlace)
1080P (progressive)
Notes:
• Refer to your TV Owner’s Manual to the
determine the maximum resolution your TV
can support. If the picture quality or colors
on TV appear distorted, you may have set
the output resolution on the DVD player to
too high a value.
• When you connect the DVD player to your
TV, be sure to turn off the power and unplug
both units from the wall outlet before making
any connections.
• If you have a HDMI (with HDCP) equipped
monitor or display, you can connect it to this
player using an HDMI cable.
A. ANALOG CONNECTION
Using an audio cable (not included), connect
the left/right AUDIO OUT jack on your unit to
the AUDIO IN jack on your other source.
B. DIGITAL CONNECTION (preferred)
Using a coaxial digital audio cable (not
included), connect the DIGITAL AUDIO OUT
jack on your unit to the DIGITAL AUDIO IN
jack on your other source.
1. OPEN/CLOSE Button
Press to open or close the disc tray.
2. STANDBY/ON Button
Press to turn on the unit or put it in
standby mode
3. AUDIO Button
Press to select one of the audio sound
tracks programmed on a DVD or to select
the audio output mode on an audio CD.
4. ANGLE Button
Press to switch the camera angle of the
video presentation when scenes with
multiple camera angles are recorded on
a DVD.
5. MEMORY Button
Press to create programs.
6. DISPLAY Button
Press to change disc status information
displayed on the TV screen.
7. SETUP Button
Press to open and close the SETUP
menu screen
8. CURSOR ( , , , ) Button
Press to highlight selections on a menu
screen and adjust certain settings.
OK Button
Press to confirm selections on a menu
screen.
9. CLEAR Button
Clear input selections and cancel certain
playback functions.
Press to select iPod’s “Remote UI mode”
or “Extended Interface mode”.
10. PLAY Button
Press to start playback.
11. STOP Button
Press to stop playback.
12. SEARCH Button
Fast reverse playback.
13. REV Button
Press to move backwards through titles,
chapters or tracks on a disc.
14. Number (0-9) Buttons
15. A-B REPEAT Button
Press to perform point-to-point repeat
playback on a DVD or CD.
16. SOURCE Button
Selects input sources.
17. SUBTITLE Button
Press to select one of the subtitle
languages programmed on a DVD.
18. ZOOM Button
Zoom in an image.
19. RETURN Button
Press to return to the normal operation
after using the SETUP button.
Press to return to the previous menu in
iPod/iPhone mode.
20. TITLE Button
Press to open the title menu screen.
21. MENU Button
Press to open or close the DVD’s menu.
22. HDMI Button
Press once to view current HDMI output
resolution. Press repeatedly to change
resolution (480P, 720P, 1080i, or
1080P).
23. PAUSE Button
Press to pause playback, frame
advance.
24. SEARCH Button
Fast forward playback.
25. NEXT Button
Press to move forward through titles,
chapters or tracks on a disc.
26. SLOW Button
Press to perform slow forward playback
of DVDs.
27. GOTO Button
Press to skip directly to a specific location
on a DVD.
28. DISC REPEAT Button
Press to repeat chapter or title of a DVD.
Press to repeat single track or whole
CD.
Press to repeat songs/albums from your
iPod/iPhone.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation
openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources
such as radiators, heat registers, stoves,
or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the
polarized or grounding - type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third prong
is provided for your safety. When the
provided plug does not fit into your AC
power outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the AC power cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
11. Only use attachments/accessories
specified by the manufacturer.
12. Use only with a cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods
of time.
14. Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in
any way, such as the AC power cord or
plug is damaged, liquid has spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally,
or has been dropped.
IMPORTANT SAFETY
INSTRUCTIONS
Disc Formats
Region Management Information
This unit is designed and manufactured
to respond to the Region Management
Information that is encoded on DVDs. If the
region number printed on the DVD does not
correspond to the region number of this unit, it
cannot play that disc.
The region number of this unit is 1.
Disc Function or Operation that is Not
Available
When the
appears on the screen, it
indicates that the function or operation
attempted is not available at that time. This
occurs because the DVD manufacturer
determines the specific functions of DVDs.
Certain functions may not be available
on some DVDs. Be sure to read the
documentation provided with the DVD.
Icons Used on DVDs
Sample lcons
Note: When playing back a CD-G (Graphics)
or CD EXTRA disc, the audio portion will be
played, but the graphic images will not be
shown.
Title, Chapter and Tracks
• DVDs are divided into “titles” and
“chapters”. If the disc has more than
one movie on it, each movie would be a
separate “title”. “Chapters” are sections of
titles.
• Audio CDs are divided into “tracks”. A
“track” is usually one song on an Audio
CD.
Note:
Numbers identify each title, chapter, and track
on a disc. Most discs have these numbers
recorded on them, but some do not.
The unit can playback:
sounD system
Dolby Digital
Dolby Digital is a technology developed by Dolby Laboratories. Soundtracks encoded in Dolby
Digital can reproduce from one to 5.1 discrete channels of excellent quality audio.
The unit automatically recognizes the Dolby Digital bitstream and provides a downmix suitable
for two-channel listening. An additional Dolby Digital decoder is required for reproduction of the
discrete multi-channel soundtracks available on many DVDs.
Manufactured under license from Dolby Laboratories.
‘Dolby’ and the double-D symbol are trademarks of Dolby Laboratories.
accessories
Please check and identify the supplied accessories.
Remote Control (with batteries) ................................................................................. x 1
Audio/Video cable ...................................................................................................... x 1
control reFerence guiDe setuP anD connections
Remote Control Using the Remote Control
• Point the remote control at the REMOTE
SENSOR located on the unit.
• When using this unit in very bright light, the
infrared REMOTE CONTROL SENSOR
may not work properly.
• The recommended operating range for
remote operation is about 16 feet (5
meters).
Battery Replacement
When the batteries become weak, the
operating distance of the remote control
will be greatly reduced and you will need to
replace the batteries.
Notes:
• If the remote control is not going to be used
for a long time, remove the batteries to
avoid damage caused by battery leakage
corrosion.
• When discarding batteries, environmental
problems must be considered and local
rules or laws governing the disposal of
these batteries must be strictly followed.
• Do not mix old and new batteries. Do
not mix ALKALINE, standard (CARBON-
ZINC), or rechargeable (Ni-Cd, Ni-MH,
etc.) batteries.
WARNING:
• Do not dispose of the battery in fire or it
may explode or leak.
• Batteries shall not be exposed to excessive
heat such as sunshine, fire or the like.
CAUTION:
Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type.
remote control
DVDs
[8cm/12cm disc]
Audio CDs
[8cm/12cm disc] Compatible
Unit
1
16
17
19
21
22
23
25
24
20
18
26
27
28
2
4
6
7
9
11
13 12
10
8
5
3
14
15
1. DISC TRAY
Opens or closes the tray by pressing the
OPEN/CLOSE button.
2. REMOTE SENSOR
Receives the remote control unit signals.
3. DISPLAY WINDOW
Display units information.
4. Power Indicator
Indicator On: The unit is in standby mode.
Indicator Off: The unit is turned on.
5. ON/STANDBY Button
Turn the unit on or put it in standby mode.
6. OPEN/CLOSE Button
Opens or closes the tray.
7. PLAY Button
Starts or resumes playback of a disc.
8. STOP Button
Stop playing a disc.
9. iPod/iPhone dock door
Push once & slide out the iPod/iPhone
dock.
10. COMPOSITE VIDEO OUT jack
11. HDMI OUT jack
12. S-VIDEO OUT jack
13. AUDIO OUT (L/R) jacks
14. COAXIAL DIGITAL AUDIO OUT jack
15. COMPONENT VIDEO OUT jacks
(Y, Pb & Pr)
SYMPTOM CAUSE (AND REMEDY)
troubleshooting guiDe
CONNECTING TO A TV
The unit can be connected to your TV in several different ways, depending on the design of your TV.
Note: Use only one of the connection methods listed below for connecting to your TV.
B. COMPONENT VIDEO OUT (DVD)
Some TVs or monitors are equipped with
component video inputs.
Using the red and white connection on an
audio cable (not included), connect the left/
right AUDIO OUT jacks on your unit to the
left/right AUDIO IN jacks on your TV.
Using a component video cable (not
included), connect the Y VIDEO OUT jack
(green plug) on your unit to the Y VIDEO IN
jack on your TV, the Pb VIDEO OUT jack
(blue plug) on your unit to the Pb VIDEO IN
jack on your TV and the Pr VIDEO OUT jack
(red plug) on your unit to the Pr VIDEO IN
jack on your TV to view the highest quality
picture playback.
saFety Precautions
The lightning flash with an arrowhead
symbol, within the equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude to
cause an electric shock.
The exclamation point within the
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in this user manual.
CAUTION
i nVisible laser raDiation When
oPen anD interlocKs DeFeateD.
aVoiD eXPosure to beam.
THIS CLASS B DIGITAL APPARATUS
COMPLIES WITH CANADIAN ICES-003.
On Placement
• Do not use the unit in places that are
extremely hot, cold, dusty, or humid.
• The ventilation should not be impeded by
covering the ventilation openings with items
such as newspaper, table-cloths, curtains,
etc.
On Safety
• When connecting or disconnecting the AC
power cord, grip the plug and not the cord
itself. Pulling the cord may damage it and
create a hazard.
• When you are not going to use the unit for
a long period of time, disconnect the AC
power cord.
• No naked flame sources such as lighted
candles should be placed on the AC power
cord and the unit.
• Leave a minimum of 10 cm around the
apparatus for ventilation.
• Attention should be drawn to the
environmental aspects of battery disposal.
• Use of apparatus in moderate climates.
On Condensation
• When left in a heated room where it is warm
and damp, water droplets or condensation
may form inside the unit. When there is
condensation inside the unit, the unit may
not function normally. Let the unit stand for
1 to 2 hours before turning the power on, or
gradually heat the room and let the unit dry
before use.
Rating Plate Location
• The rating plate is located on the rear of
unit.
FCC Statements
NOTE: This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/
TV technician for help.
Warning: Changes or modifications to this
unit not expressly approved by the party
responsible for compliance could void the
user’s authority to operate the equipment.
Notes on Copyright
It is forbidden by law to copy, broadcast,
show, broadcast on cable, play in public, or
rent copyrighted material without permission.
Apparatus Claims of U.S. Patent Nos.
6,836,549; 6,381,747; 7,050,698; 6,516,132;
and 5,583,936 licensed for limited viewing
uses only.
This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Macrovision, and is intended
for home and other limited viewing uses only
unless otherwise authorized by Macrovision.
Reverse engineering or disassembly is
prohibited.
WARNING:
• Should any trouble occur, disconnect the
AC power cord and refer servicing to a
qualified technician.
• To be completely disconnected the
apparatus from supply mains, the mains
plug of the apparatus shall be disconnected
from the mains socket outlet completely.
• The mains plug of apparatus should not be
obstructed OR should be easily accessed
during intended use.
This product
contains a low
power laser device.

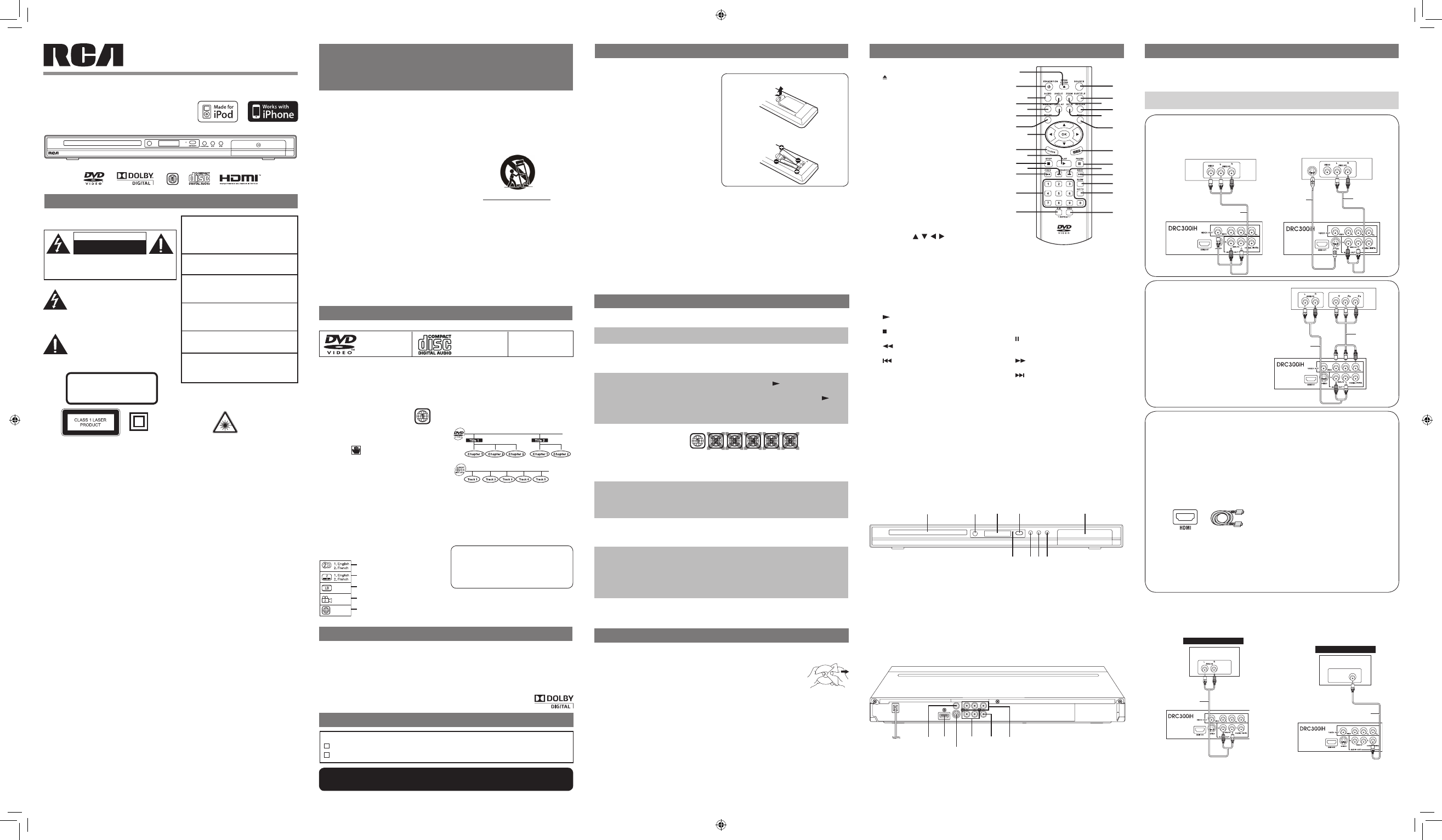

User manual
DRC300iH
Notes on Unauthorized Discs
You may not be able to play some DVDs
on this unit, particularly if they were
purchased from outside your geographic
area or made for business purposes.
maintenance
Cleaning the Disc
A defective or soiled disc inserted into the unit can cause sound to drop out during playback.
Handle the disc by holding its inner and outer edges.
• Do NOT touch the surface of the unlabeled side of the disc.
• Do NOT stick paper or tape on the surface.
• Do NOT expose the disc to direct sunlight or excessive heat.
• Clean the disc before playback. Wipe the disc from the center outward with a
cleaning cloth.
• NEVER use solvents such as benzine or alcohol to clean the disc.
• Do NOT use irregular shaped discs (example: heart shaped, octagonal, etc.). They may
cause malfunctions.
Cleaning the Unit
• Be sure to turn the unit off and disconnect the AC power cord before maintaining the unit.
• Wipe the unit with a dry soft cloth. If the surfaces are extremely dirty, wipe clean with a cloth
that has been dipped in a weak soap-and-water solution and wrung out thoroughly, then wipe
with a dry cloth.
• Never use alcohol, benzine, thinner, cleaning fluid or other chemicals. Do NOT use
compressed air to remove dust.
Important Note
Before transporting the unit, remove the disc from the disc compartment.
A. RCA AUDIO/VIDEO JACKS
1. Using the red, white and yellow connection
on the AV cable (included), connect the
VIDEO OUT and left/right AUDIO OUT
jacks on the unit to the VIDEO IN and left/
right AUDIO IN jacks on your TV.
2. Using a S-video cable (not included). S-Video
will give slightly better picture quality than a
standard (yellow RCA-type) AV connection.
If your TV has an S-Video connection, you
may prefer to use this connection.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI licensing LLC.
C. CONNECTING TO A DISPLAY (Using an HDMI cable)
CONNECTING TO OPTIONAL EQUIPMENT (AMPLIFIER or HOME THEATER)
Notes:
• When you connect the unit to other equipment, be sure to turn off the power and unplug all of
the equipment from the wall outlet before making any connections.
• If the external equipment is television and this audio system is close to it, you may experience
the interference if the tuner function is selected while the television is working.
• Refer to the instruction manual of the connected equipment as well.
CAUTION
risK oF electric shocK
Do not oPen
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
WARNING: THE APPARATUS SHALL NOT BE
EXPOSED TO DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, SHALL BE PLACED ON
APPARATUS.
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE THE
APPLIANCE TO RAIN OR MOISTURE.
CAUTION: Use of controls or adjustments or
performance of procedures other than those
specified may result in hazardous radiation
exposure.
CAUTION: DANGER OF EXPLOSION IF
BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR
EQUIVALENT TYPE.
CAUTION: TO REDUCE THE RISK OF FIRE,
DO NOT PLACE ANY HEATING OR COOKING
APPARATUS BENEATH THIS UNIT.
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE
SLOT OF POWER OUTLET, THEN FULLY
INSERT.
The symbol for
Class II (Double
Insulation)
Caution Marking and rating plate was located at
rear and bottom enclosure of the apparatus.
Portable Cart Warning
2. Insert two AAA size batteries.
1. Open the battery door.
To Change Remote Batteries
1 2 3 4 5
No power.
The remote
control does not
function.
No sound or only
a very low-level
sound is heard.
No picture or
abnormal color.
No output on your
HDMI TV.
Severe hum or
noise is heard.
The disc does not
play.
The DVD door
cannot open.
1 2 3 5 9
6 4 7 8
To wall outlet
10 11
12
13 14 15
TV
red
red
whit
e
whit
e
Audio cable
(red and white)
S-video
cable
green
blu
e
red
TV
red
red
whit
e
whit
e
VIDEO IN AUDIO IN
Audio cable
(red and white)
green
blu
e red
Component
video cable
(green/blue/red)
Audio equipment with
digital audio input jack
DIGITAL
AUDIO IN
DIGITAL CONNECTION
Coaxial Digital
Audio cable
Need more help?
Please visit online help at www.RCAav.com
TV
red whit
e
yellow
red
whit
e
yellow
AV cable
(included)
Method A (AV jacks) will give good picture quality. Method B (Component Video)
will give better picture quality. Method C (HDMI) will give best picture quality.
Amplifier of
stereo system, etc.
AUDIO IN
ANALOGUE CONNECTION
red
whit
e
red
whit
e
Audio cable
(red and white)
• Ensure the AC power cord is connected.
• The unit is not turned on.
• Remove any obstacles between the remote and the unit
• Use the remote near the unit.
• Point the remote at the remote sensor on the unit.
• Replace the batteries in the remote with new one.
• Make sure that you select ON mode.
• The system is in pause mode. Press the PLAY button to return to
normal play mode.
• The unit is in fast-forward or fast-reverse mode. Press the PLAY
button to return to normal play mode.
• Make sure the AUDIO output is correct.
• Make sure the audio cable is connected securely.
• The region number of the disc doesn’t match the region number of
this unit.
• The TV is not set to receive DVD signal output.
• The video/HDMI cable is not connected securely.
• The TV is not turned on.
• Clean the disc.
• Check connection between HDMI TV and the unit.
• Replace the HDMI cable with a better one. Bad HDMI cable can
cause data lost.
• Press HDMI key on remote handset several times to toggle among
different HD OUTPUT.
• Check the connections.
• The plugs and jacks are dirty. Wipe them with a cloth slightly
moistened with alcohol.
• Clean the disc.
• There is no disc inside. (“No Disc” appears on the screen).
• Insert the disc correctly with the playback side facing down.
• Clean the disc.
• The unit and disc region number are incompatible.
• Condensation may have formed inside the unit due to a sudden
change in temperature. Wait about an hour for it to clear and try
again.
• Reset the unit, press the STANDBY/ON button to turn off the unit,
wait for a few seconds, then restart the unit.
Language selections for audio
Language selections for subtitles
Screen aspect ratio
Multiple camera angles
Region code indicator
1
CD-R CD-RW
DRC300iH eng ib.indd 1 10/6/2009 9:45:13 AM
