Installation and assembly
The M10 is an 19“ build-in unit,
which was principally conceived
for insertion into a 19” cabinet.
Thanks to the integrated unit feet,
however, it is possible to position
it outside of a 19” cabinet.
Installation in a 19“ cabinet
The M10 has variable side-
elements that enable installation
in the 19” cabinet. These can be
assembled in 2 different positions
on the M10 and enable the
installer to assemble it in the 19”
cabinet in the best possible way.
See the figure below. The M10 can be installed with the
plug-in slots directed to the front
or the back. See figure on Page
9. Depending on the cabling
strategy, the plug-in module
cables can be fed in at the front of
the unit or concealed at the back.
In both positions, it is possible to
position the M10 4 cm towards
the inside. This is a particular
benefit in the case of 19” cabinets
with a door as this allows you to
plug the cable in at the front
without it being unduly kinked.

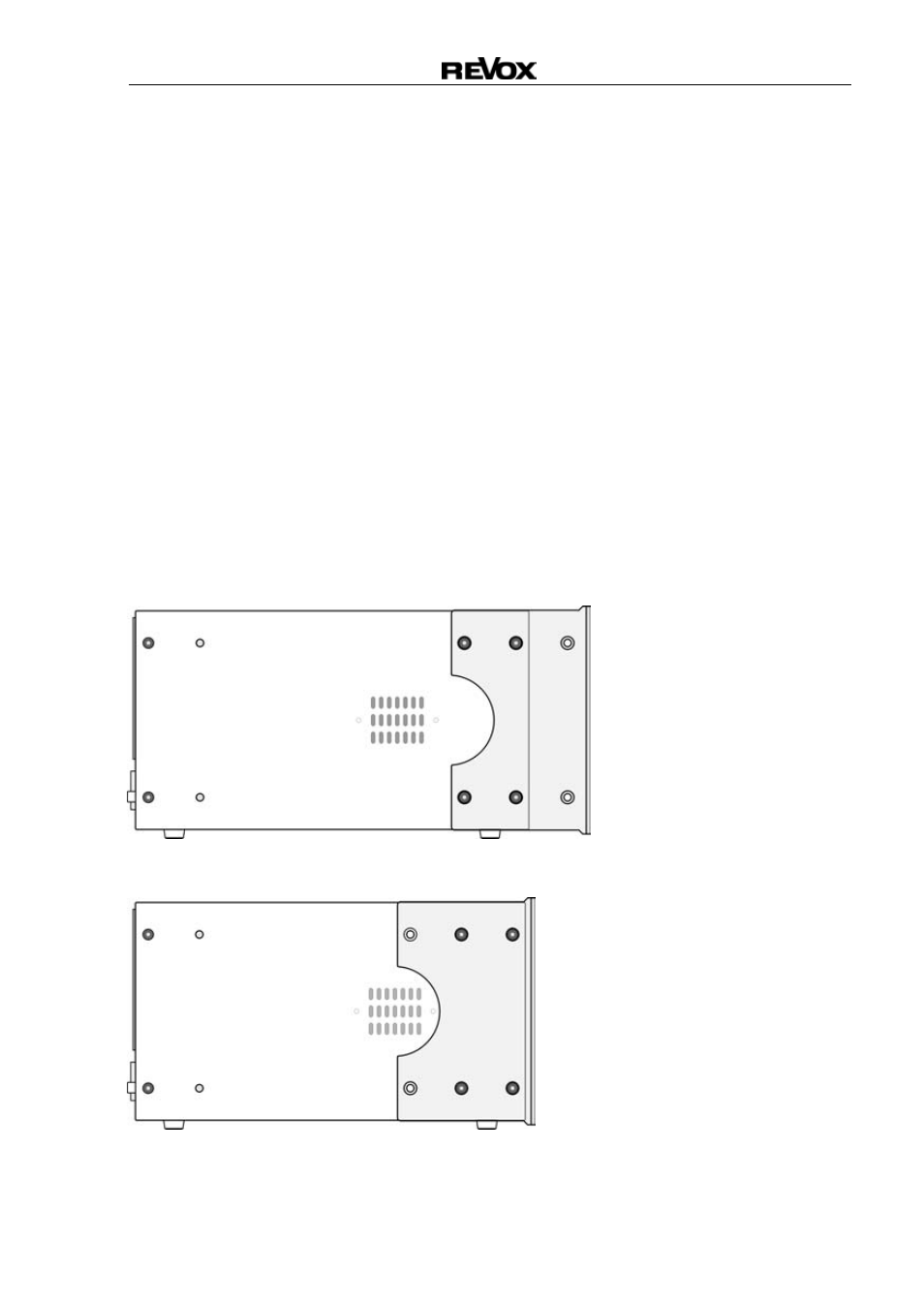

Side view:
M10 with flush
retaining bracket
Side view:
M10 with forward-
spaced retaining
bracket
