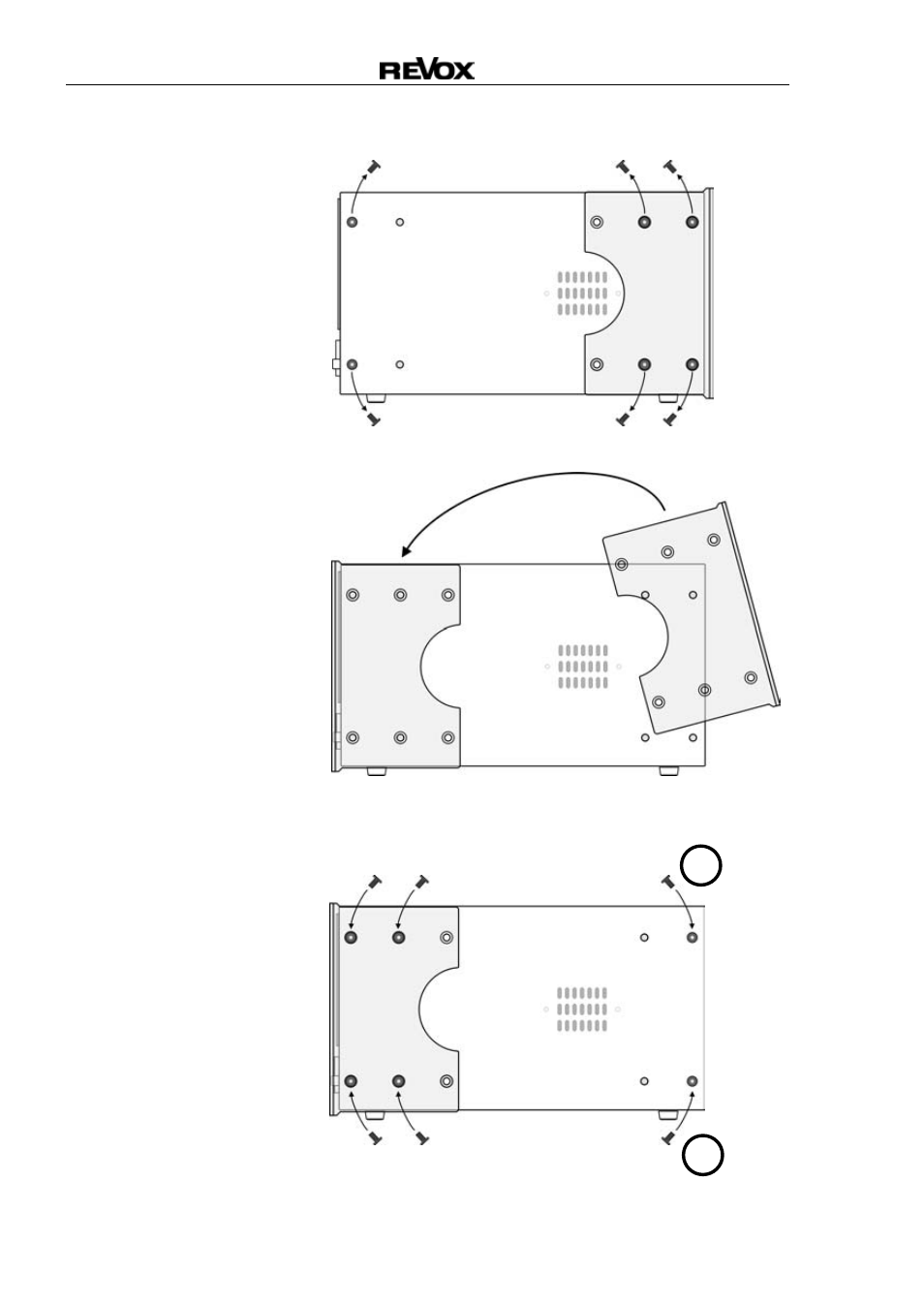

Modifying the
retaining bracket
1. All 6 Allen screws
(3 mm) are re-
moved from both
sides of the M10
2. Now, the retaining
bracket is moved
from the front to the
back in the corres-
ponding position.
3. All 6 screws are
then screwed back
in as shown in the
figure.
Please note
Also the two outside
screws, which don’t
hold the retaining
bracket to the M10,
must be screwed back
in.
!
!
