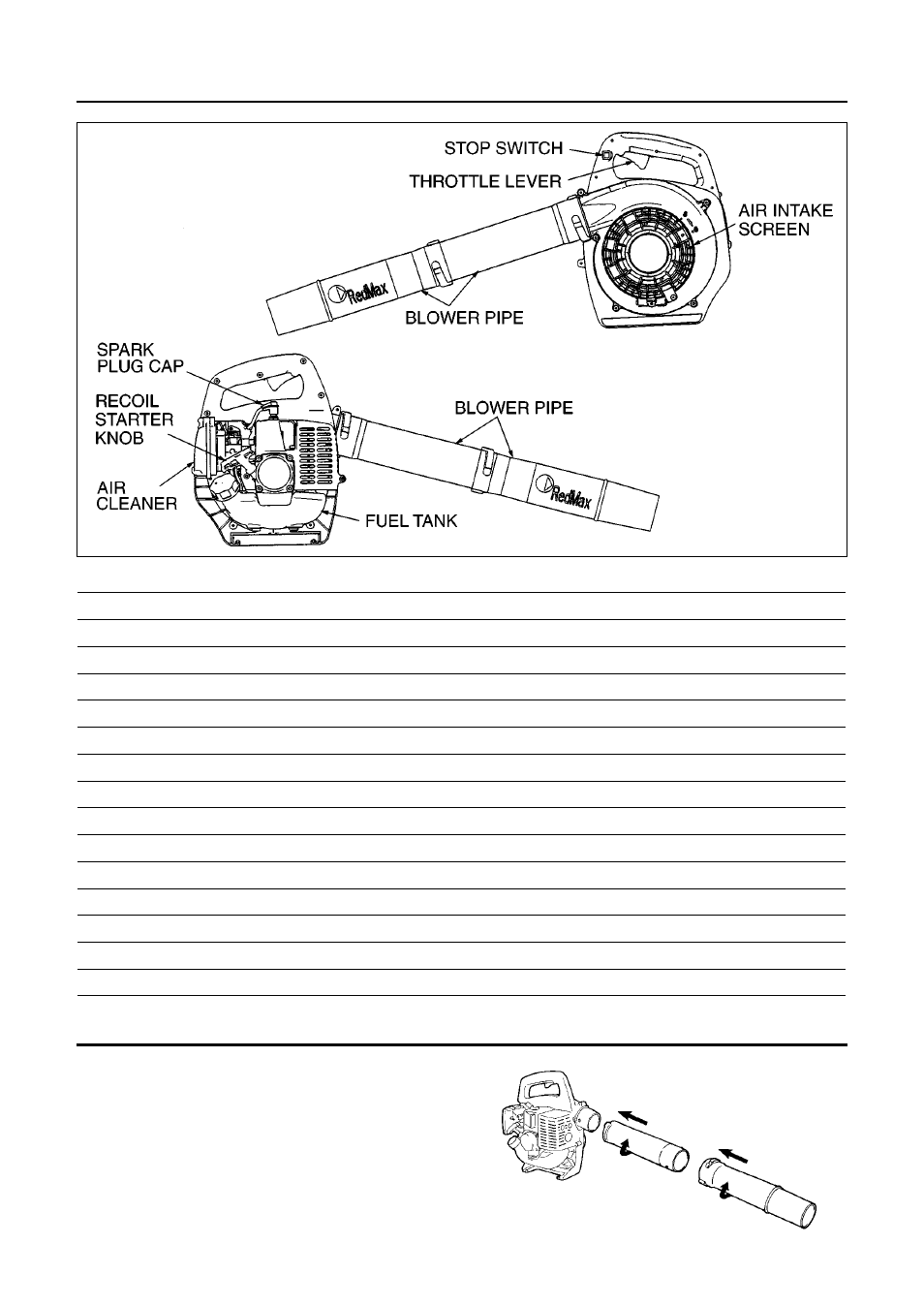

Parts Location & Specifications

Assembly

■

BLOWER PIPE

• Align groove in blower pipe with projection on

blower housing (or another blower pipe) and
slide the pipe onto the blower housing (or
another blower pipe).

Rotate the pipe clockwise to lock it into place.

MODEL HBZ2500

Dimensions ( L x W x H )

mm ( in )

327 x 273 x 360 (12.9 x 10.7 x 14.2)

Dry Weight

(without tube and nozzle)

kg ( ibs )

3.8 (8.4)

Fuel Tank Capacity

liter ( fl. oz )

0.65 (22.0)

Engine Type

Air cooled 2-cycle gasoline engine

Piston Displacement

( cu. in )

25.4 (1.60)

Durability Period

300h

Carburetor

Walbro Diaphragm type

Ignition System

CDI

Spark Plug

NGK CMR7A

Muffler

Spark arrester equipped

Operating Engine Speed

rpm

2.800 ~ 7.890

Idle Speed

rpm

2.800

Max. Air Volume

cu. m/min ( cfm )

10.4 (367)

Max. Air Velocity

m/sec ( mph )

70 (157)

Noise Level (ANSI B175.2-2000)

db ( A )

❲

❳
