RCA VR336 - Manual (Page 25)

23
References
Location of Controls

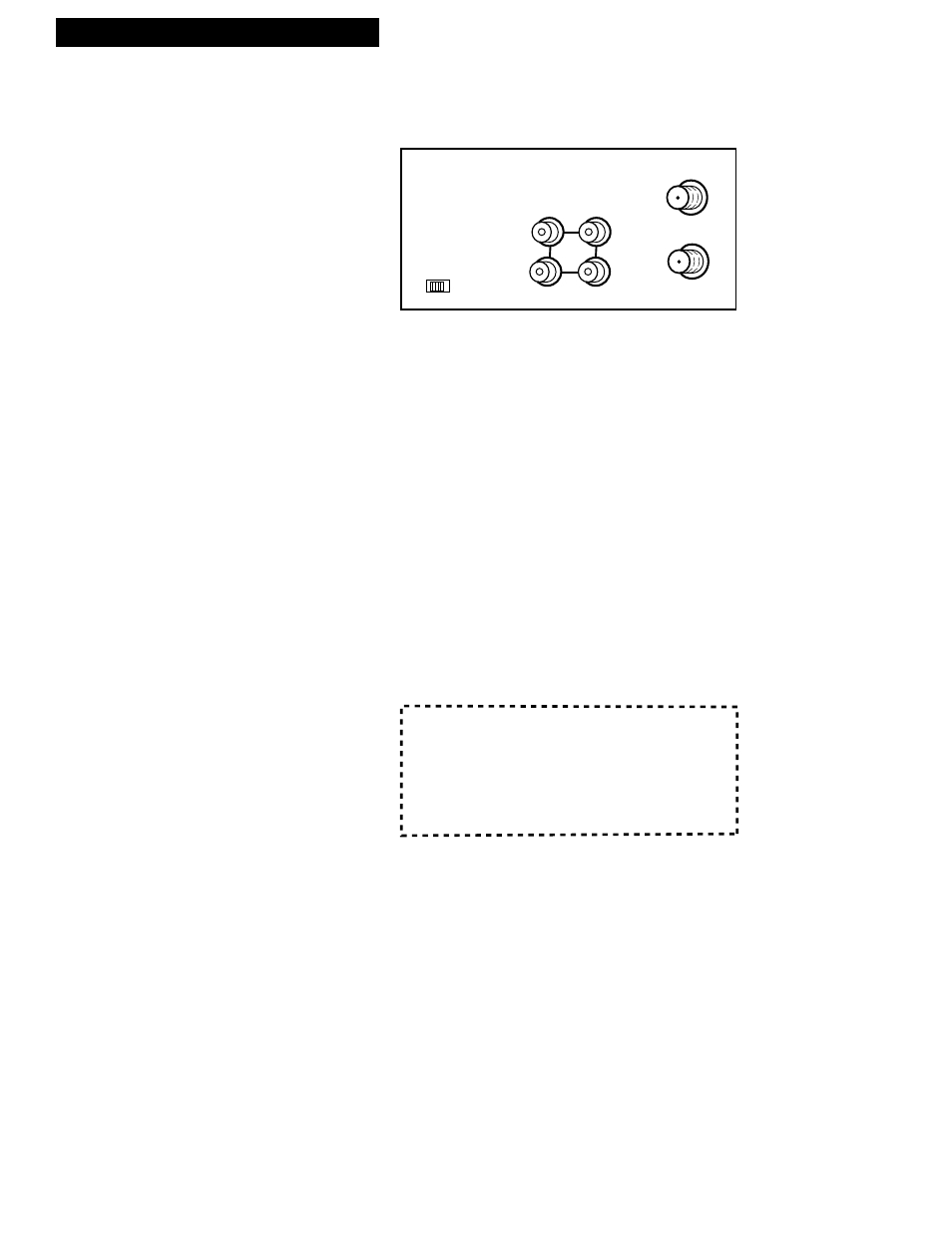

Back Panel
CH 3 5 5 6 64 Switch
Selects the channel to which you will tune the
TV to see the VCR picture if you connect the
VCR using one of the basic hookups.
IN FROM ANT. (Antenna) Connector
Receives the signal from an antenna or cable
system that is attached to this connector.
OUT TO TV Connector
Passes signal to TV using the cable supplied.
VIDEO and AUDIO IN Jacks
Receives signals from another component, like
a VCR or camcorder, when it is connected to
these jacks.
Use INPUT to select.
VIDEO and AUDIO OUT Jacks
Sends signals from VCR to another component,
like a TV monitor or VCR, when it is connected
to these jacks.
OUT TO
TV
IN FROM
ANT.
CH
3
5 6 4 AUDIO
VIDEO
IN OUT
POWER VCR
TIMER RECORD
POWER Indicator
Lights when the VCR is on.
RECORD Indicator
Lights when the VCR is recording.
TIMER Indicator
Shows VCR is set for timer recording when
VCR is turned off.
VCR Indicator
Press TV•VCR to turn on or off.
When using one of the basic hookups:
• With VCR indicator on, the picture comes
from the VCR.
• With VCR indicator off, the picture comes
from the television channels.
Display Panel
