RuggedCom RS900G User Manual
Page 11
11
2008 RuggedCom Inc. All rights reserved
Rev104
2.4 Failsafe Output Wiring and Specifications
The “Failsafe” output relay is provided to signal critical error conditions that may occur on the
RS900G series switch. The contacts are energized upon power up of the unit and remain
energized until an alarm condition or power loss occurs.

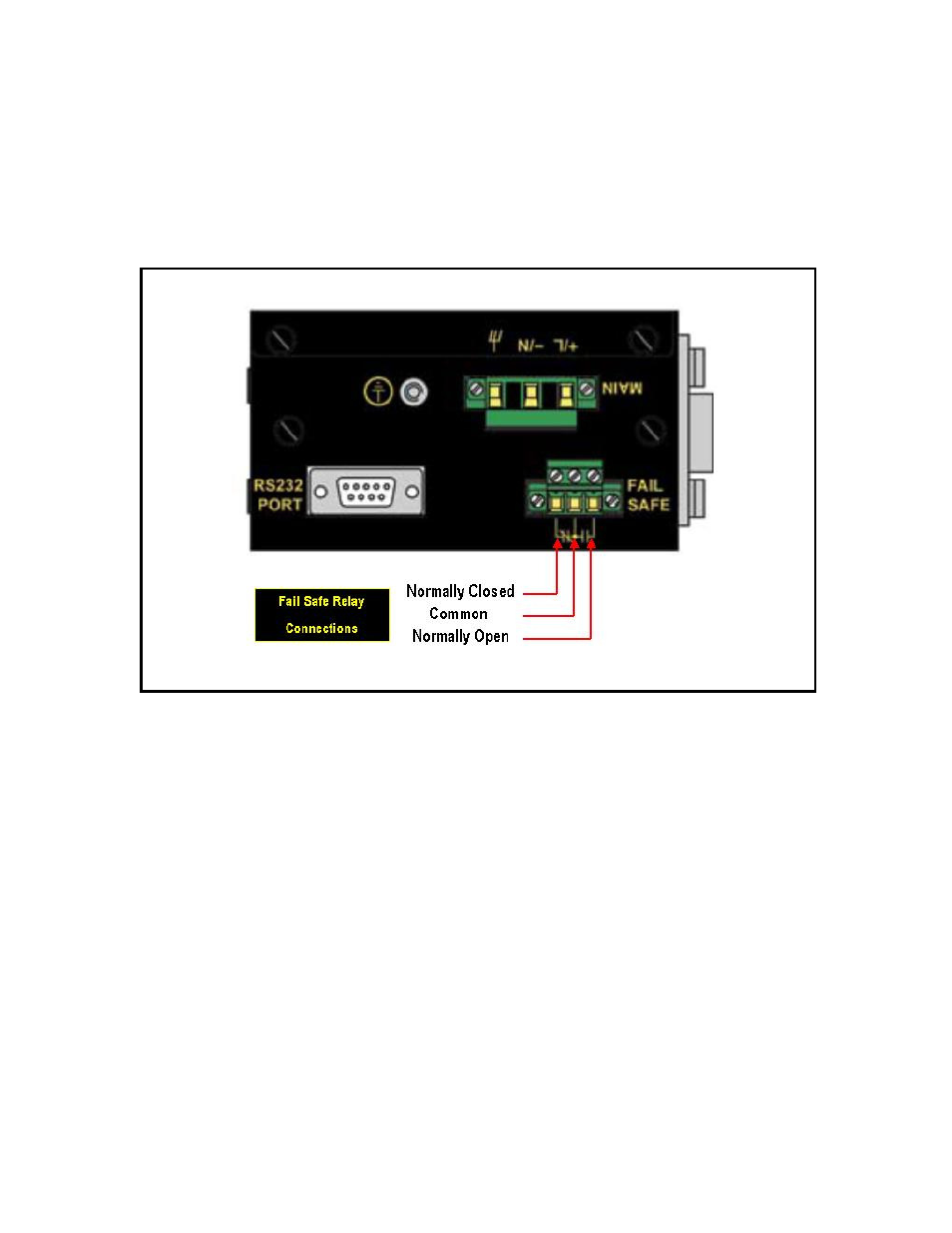

Figure 2.4.1 RS900G Family Failsafe Output Relay
