3. INTERNET CONNECTION WIZARD
This device offers a quick and simple configuration through the use of wizards. This chapter
describes how to use the wizard to configure the WAN, LAN, and wireless settings. Please refer
to Chapter 6 in order to configure the more advanced features of the device.
3.1 LOGGING IN
• To configure the device through the web-browser, enter the IP address of the device (default:
192.168.1.2) into the address bar of the web-browser and press Enter.
• Make sure that the device and your computers are configured on the same subnet. Refer to
Chapter 2 in order to configure the IP address of your computer.

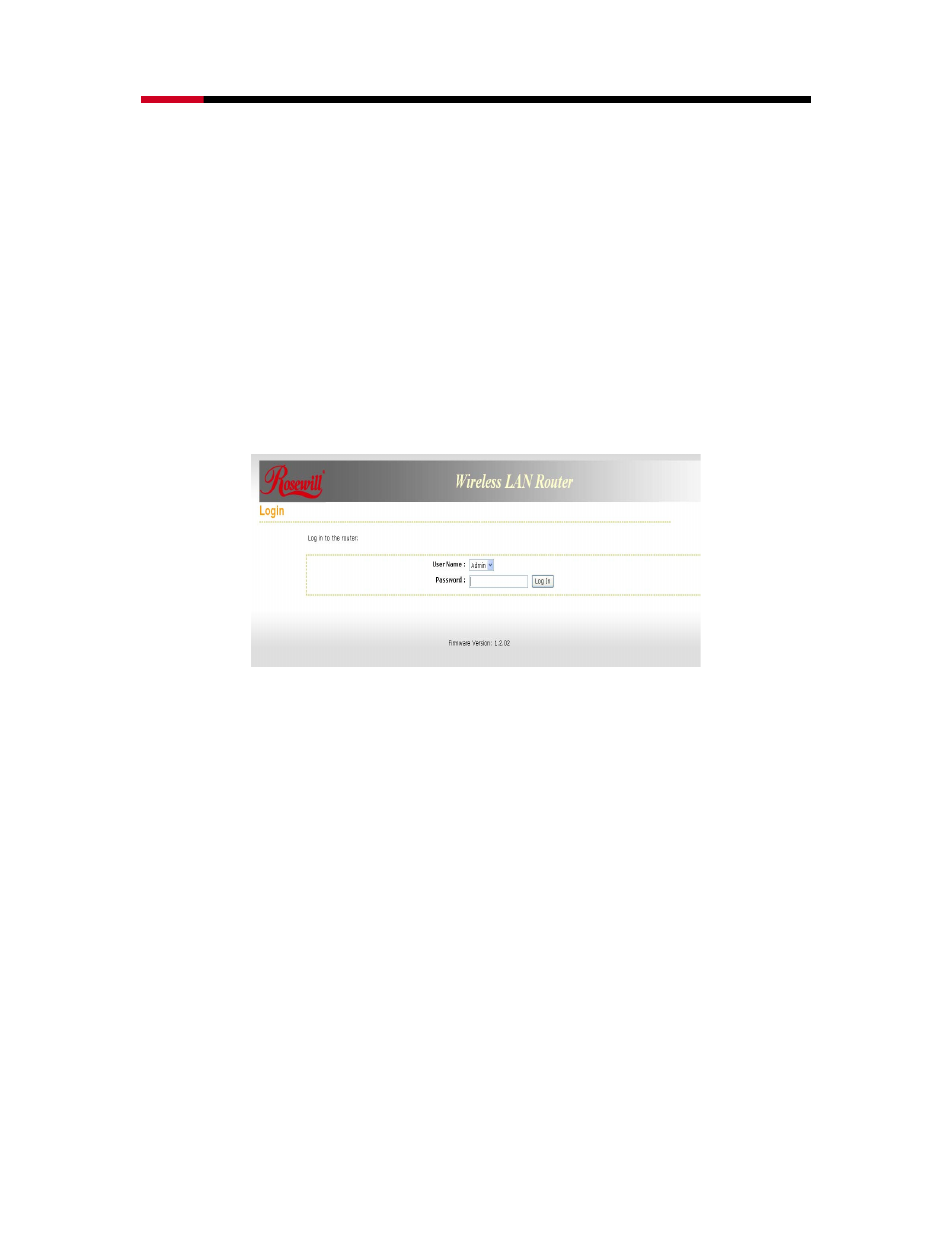

• After connecting to the IP address, the web-browser will display the login page. Select
Admin from the drop-down list and then leave the password field blank. Click on the Log In
button to continue.
• This device supports several types of WAN connections:
1.
DHCP Connection (Dynamic IP address) – Choose this connection type if your ISP
provides you the IP address. Most cable modems use this type of connection.
2.
PPPoE (Poinit-to-Point Protocol over Ethernet) – Choose this option if your internet
connection requires a user name and password. Most DSL modems use this type of
connection.
3.
PPTP (Point-to-Point Tunneling Protocol) – Choose this type of connection if your ISP
requires you to use PPTP. Your ISP should provide you with a user name and password.
4.
Static IP address – Choose this option if you have a dedicated IP address.
5.
BigPond – Choose this option if you use the BigPond service in Australia.
• The configuration wizard for each connection type is described below.
• Click on the Internet Connection Setup Wizard button to begin the process.
