tubing. The brush cleans the external surface in prepa-
ration for joining. Deburring disk cleans burrs from the out-
side surface of the tubing.
Model 122XL Copper Cutting And Prep Machine can
also clean the inside of fittings using individually sized
brushes that are attached to motor-driven quick change
adapter. It can also be used to cut and debur
1 /
2
″ through
4 ″ stainless steel tubing with a maximum wall thick-
ness of .065 ″ .
Specifications
Capacity ........................ 1 /
2
″ – 4 ″ Diameter
Copper Tube & Fittings
(Types K, L, and M)
(Stainless Steel Tube 0.065
″
Maximum Wall Thickness)
Maximum
Reamer Capacity...........2
″ Diameter Tubing
Motor:
Type ............................115V/60Hz Induction
Horsepower.................1/3 HP @ 1750 RPM
Amps...........................6.0
Switch ............................Rocker Type
Weight............................72 lbs. (32.7 kg)
Dimensions:
Height..........................16.5 ″ (42 cm)
Width...........................17.1 ″ (43 cm)
Depth ..........................17.0 ″ (38 cm)
Standard Equipment
Accessories

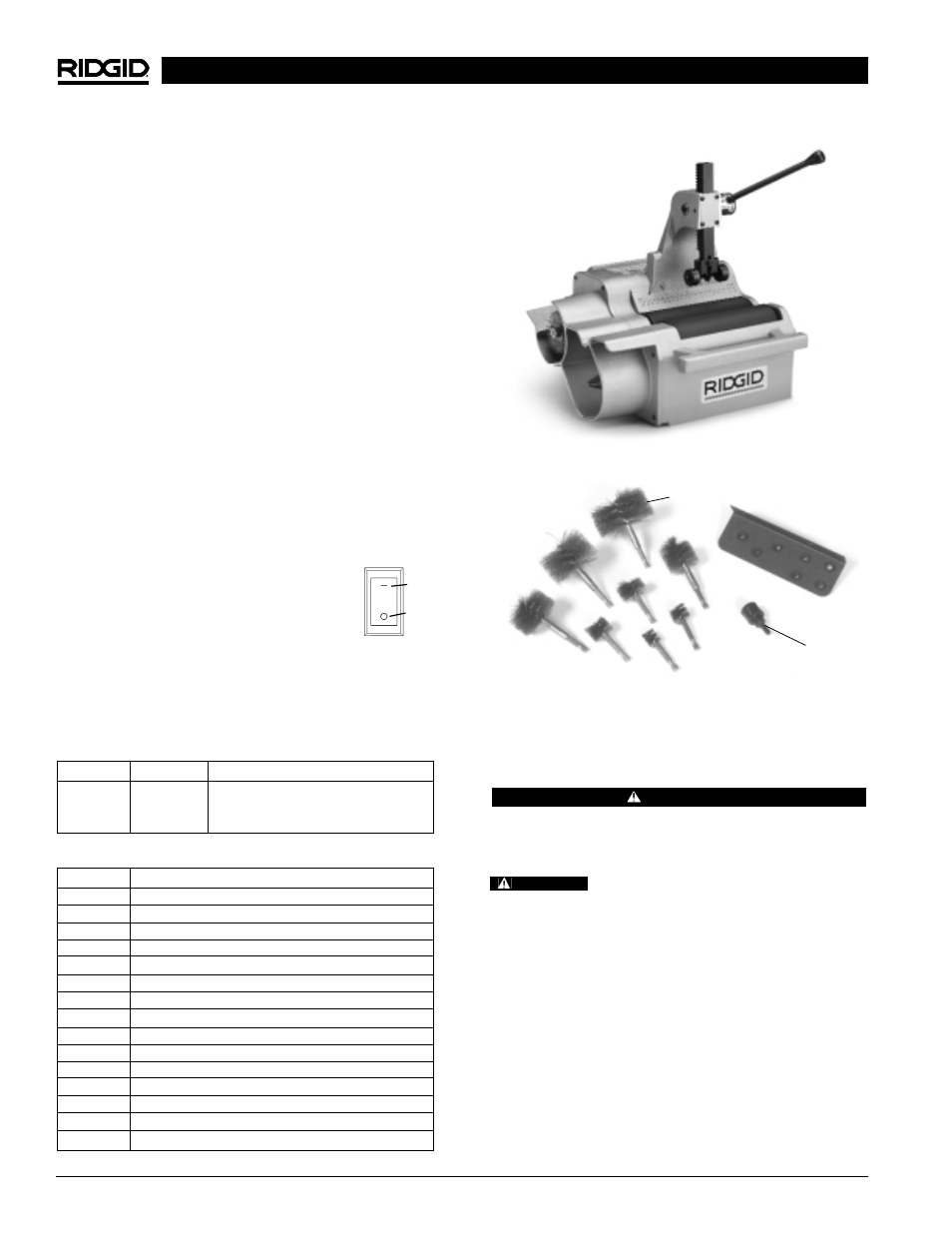

Figure 1 – 122XL Copper Cutting and Prep Machine
Figure 2 – Fitting Brushes/Quick-Change Adapter, and
Mounting Hardware
Machine Assembly
WARNING
To prevent serious injury, proper assembly of the No.
122XL Copper Cutting and Prep Machine is required.
The following procedures should be followed:
Make sure machine is unplugged from
power source before assembling accessories or making
any adjustments.
Fitting Brushes and Holder
(Optional Accessory)
1. Mount the fitting brush holder to No. 122XL Copper
Cutting and Prep Machine by using the two Phillips
head screws provided with the rack (Figure 2). Use
the two pre-drilled holes to fasten the rack to the
side of the housing.
2. Attach the quick change adapter to front roller shaft
extending from the machine housing using the set
122XL Copper Cutting and Prep Machine
Model No. Cat. No. Description
122XL 10973 Copper Cutting and Prep Machine
115V, 60Hz w/Reamer and O.D
Deburring Disk
WARNING
Fitting
Brushes
Adapter
Cat. No. Description
36662 Model 301A Foot Switch – 120V
93717 1 /
2
″ Fitting Brush (Pkg. of 3)
93722 3 /
4
″ Fitting Brush (Pkg. of 3)
93727 1 ″ Fitting Brush (Pkg. of 3)
93732 1 1 /
4
″ Fitting Brush (Pkg. of 3)
93737 1 1 /
2
″ Fitting Brush (Pkg. of 3)
93742 2 ″ Fitting Brush (Pkg. of 3)
12638 2 1 /
2
″ Fitting Brush (Pkg. of 3)
12643 3 ″ - 4 ″ Fitting Brush (Pkg. of 3)
93747 Quick-Change Adapter f/Fitting Brush
93712 Fitting Brush Holder
33551 Cutter Wheel f/Copper and Stainless Steel
10343 Wheel Pin for 33551 Cutter Wheel
42295 Outside Diameter Cleaning Brush
42360 1206 Stand
