5. Reinstall nut and washer and tighten by again holding
the shaft stationary. Apply sufficient torque to the
nut to prevent the disk from turning.

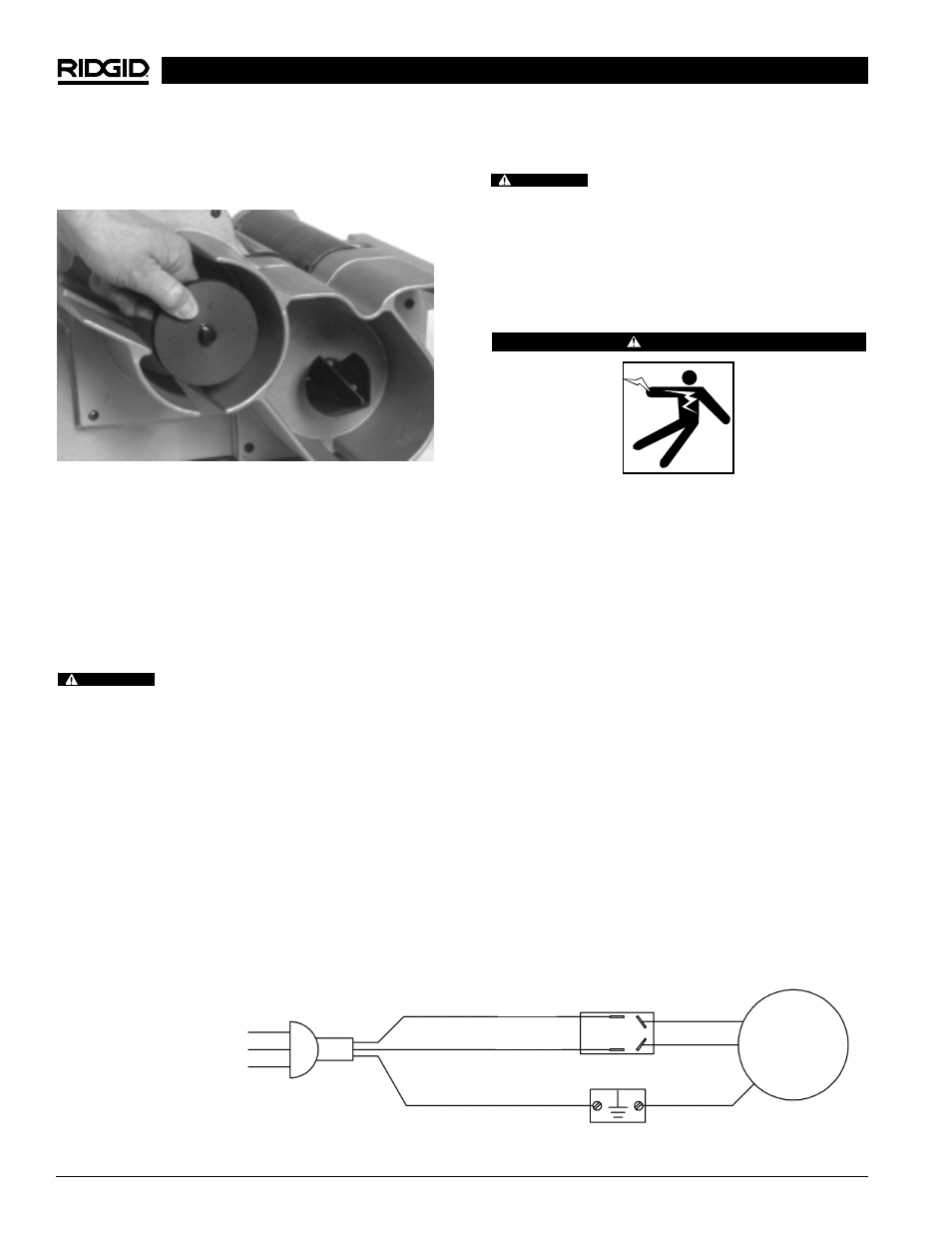

Figure 11 – Assembling Deburring Disk
Motor
Motor is equipped with a thermal overload that turns off
the motor in the event it develops excessive heat.
To reset the thermal overload, wait approximately 15
minutes for the motor to cool and remove the bottom
cover. Press the red button located on the end of the
motor opposite the reamer.
To prevent electrical shock, make sure
machine is unplugged from power source before remov-
ing cover.
Replace the cover and plug the machine into an elec-
trical outlet. Turn the ON/OFF switch to the ON position.
If motor does not start or the thermal overload continu-
ally trips during normal use, the machine should be
taken to an Authorized Service Center.
Ridge Tool Company 10
Machine Storage
Motor-driven equipment must be kept in-
doors or well covered in rainy weather. Store the machine
in a locked area that is out of reach of children and people
unfamiliar with cutting machines. This machine can cause
serious injury in the hands of untrained users.
Service and Repair
WARNING
Service and repair work on this Copper Cutting and Prep
Machine must be performed by qualified repair personnel.
Machine should be taken to a RIDGID Independent
Authorized Service Center or returned to the factory. All
repairs made by Ridge service facilities are warranted
against defects in material and workmanship.
When servicing this machine, only identical replace-
ment parts should be used. Failure to follow these
instructions may create a risk of electrical shock or
other serious injury.
If you have any questions regarding the service or repair
of this machine, call or write to:
Ridge Tool Company
Technical Service Department
400 Clark Street
Elyria, Ohio 44035-6001
Tel: (800) 519-3456
E-Mail: [email protected]
For name and address of your nearest Independent
Authorized Service Center, contact the Ridge Tool
Company at (800) 519-3456 or http://www.ridgid.com
122XL Copper Cutting and Prep Machine
WARNING
Wiring Diagram
115V – 60Hz
100V – 50/60Hz
(220 – 240V/50Hz)
Black (BRN)
Switch
Back View
Green (GRN-YEL)
White (BLU)
Black
White
Green
Chassis
Ground
Motor
WARNING
