Page 13
2.3
Recommended Dimensions for User System Mount Pad
Figure 5 shows the recommended dimensions for the mount pad (footprint) for the user system with
an IC socket for an FP-144H package (IC149-144-045-B51: manufactured by YAMAICHI
ELECTRONICS CO., Ltd.). Note that the dimensions in figure 5 are somewhat different from
those of the actual chip's mount pad.

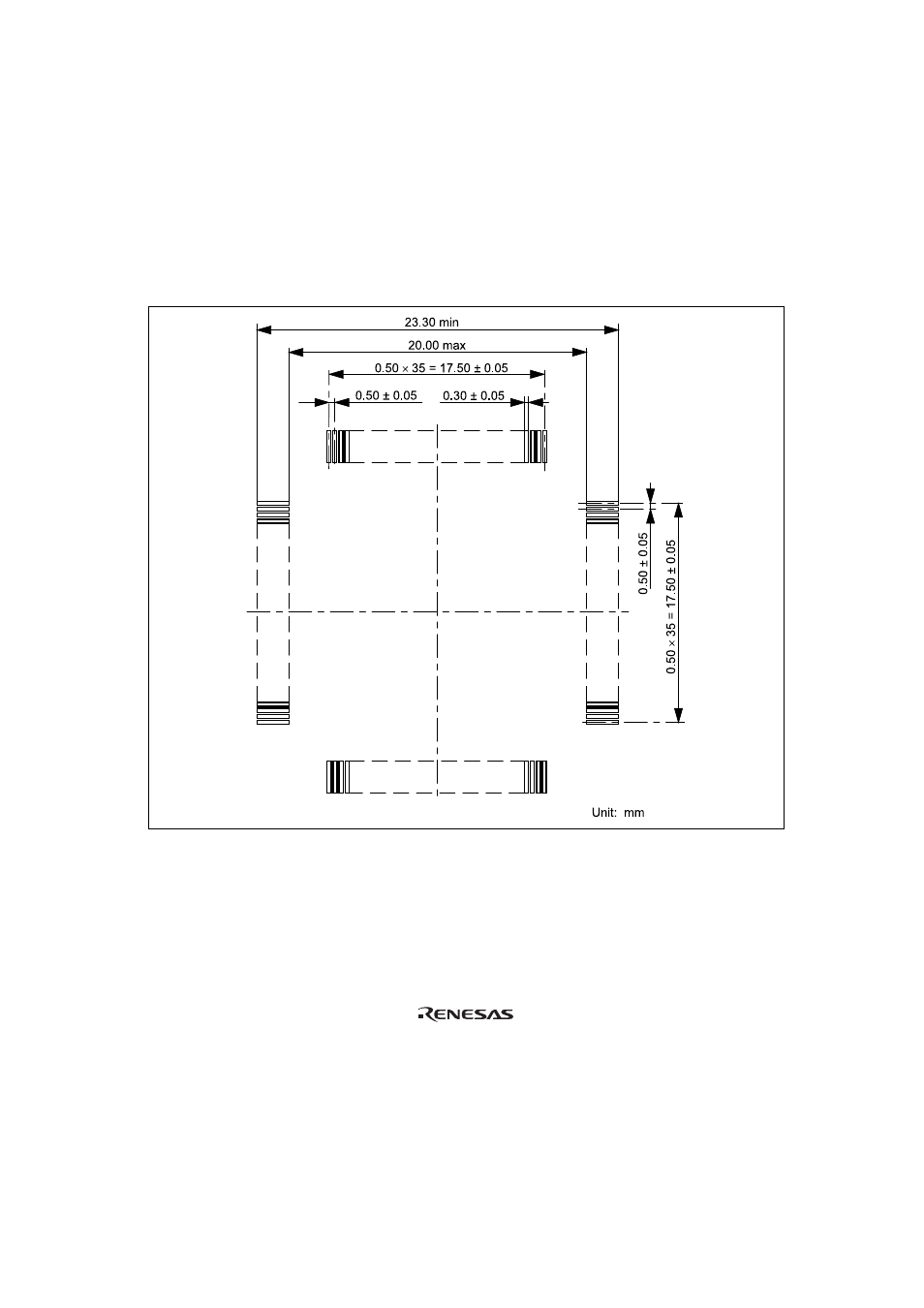

Figure 5
Recommended Dimensions for Mount Pad
9
