Operation
68 Runco VX-44d/-55d Owner’s Operating Manual
PRE
L
IMINAR
Y
Contrast: On your external test pattern source, select a stepped, gray-bar pattern like the
one shown in Figure 4-3.

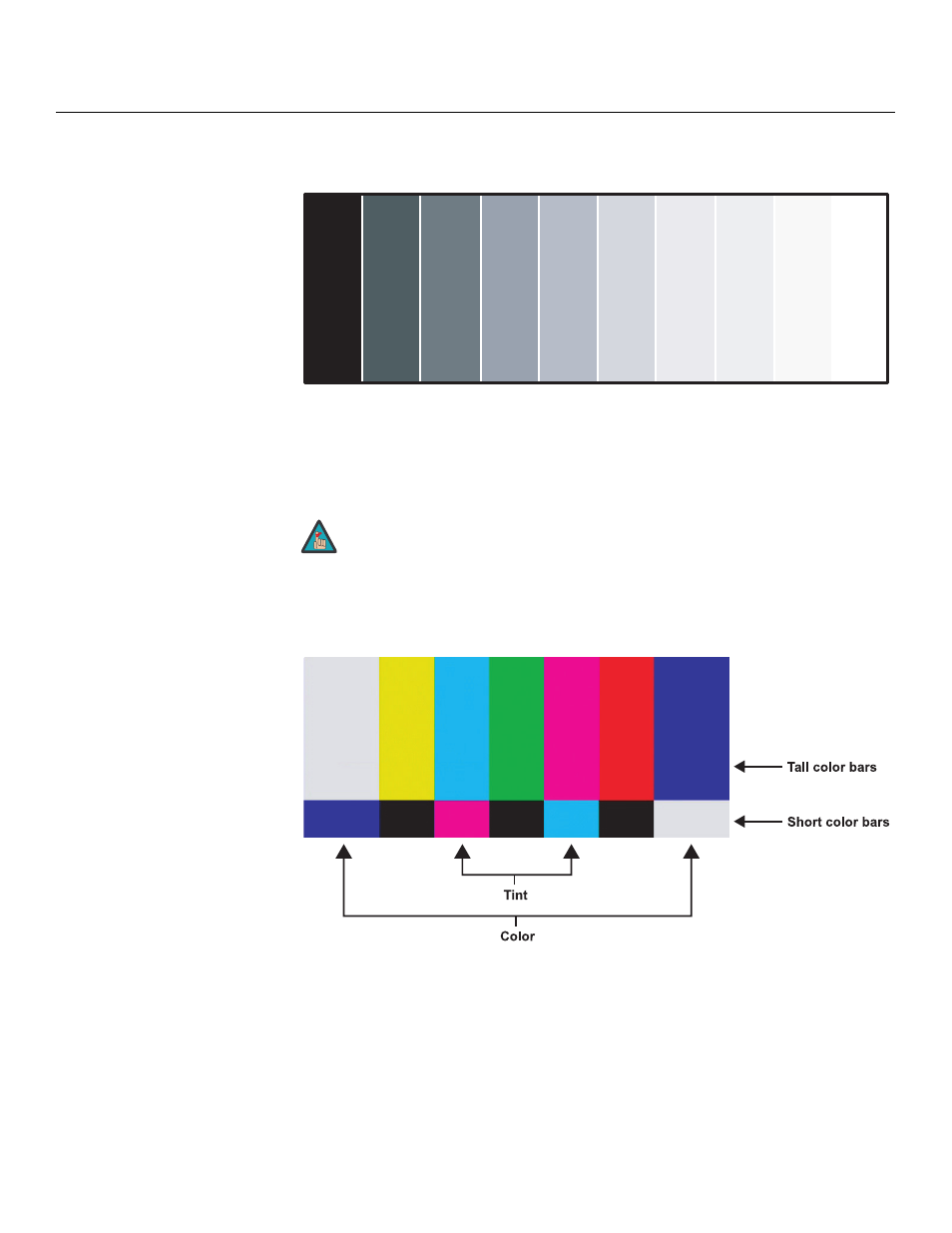

Figure 4-3. Typical Gray Bar Pattern for Adjusting Contrast
Select Contrast and press ENTER. Adjust the contrast to a point just below which the
white rectangle starts to increase in size.
Color Saturation: On your external test pattern source, select a color bar pattern like the
one shown in Figure 4-4.
Figure 4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint
Brightness and contrast controls are interactive. A change to one
may require a subtle change to the other in order to achieve the
optimum setting.
Note
gray
yellow
cyan gr
een
magenta
re
d
blue
